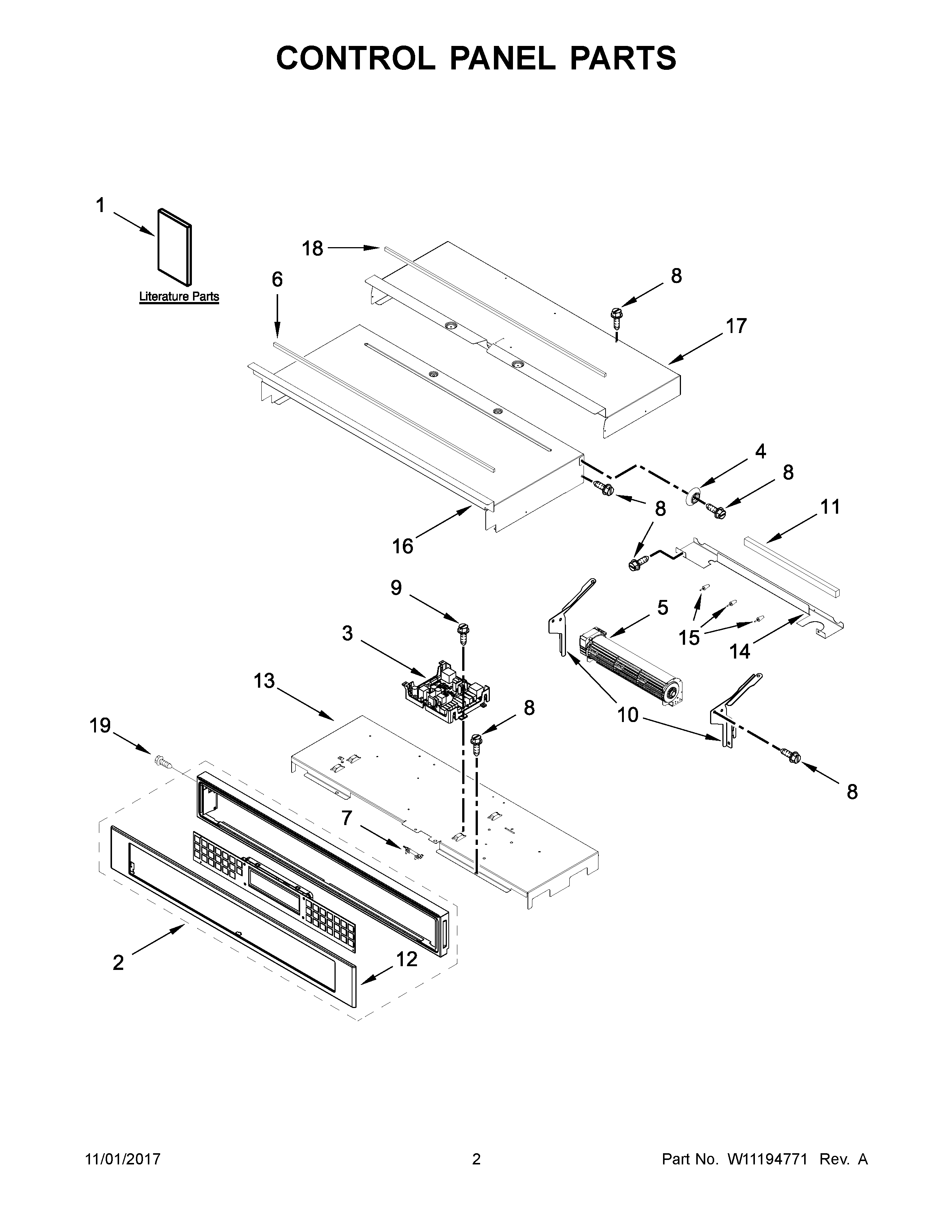

KODE500EBL03 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11132989 Whirlpool Wire Harness
NI	W11157221 Whirlpool Wire Harness
NI	W10760039 Whirlpool Hardware
NI	HARNESS, MAIN
NI	16515 Whirlpool Clip
NI	4452400 Whirlpool Microwave Wire Harness
NI	W11699910 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	4450800 Whirlpool Oven Screw
NI	W11177679 Whirlpool Wire Harness
NI	4448664 Whirlpool Oven Mounting Bracket
1B	SHEET, TECH
1A	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE & CARE
2C	W11086152-includeCORE Whirlpool W11086152 Refrigerator Control Panel with Core
2B	W11086141-includeCORE Whirlpool W11086141 Refrigerator Console Panel + Core
2	W11087449 Whirlpool Console + Core
2A	W10916776 Whirlpool Membrane Switch
3A	W10801665-includeCORE Whirlpool W10801665 Refrigerator Electronic Control Board
3	W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	W11245567 Whirlpool Blower Assembly
6	WPW10657548 Whirlpool Foam Seal
7	W11204568 Whirlpool Thermal Fuse
8	SCREW
9	SCREW
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12A	PANL-CNTRL
12	W10588744 Whirlpool Control Panel
12B	W10588740 Whirlpool Control Panel
12C	W10776407 Whirlpool Control Panel
13	TRAY, ELECTRONIC
14	W10655465 Whirlpool Mounting Bracket
15	W10351295 Whirlpool Bumper Assembly
16	W10318192 Whirlpool Cabinet Top
17	W10904156 Whirlpool Cabinet Top
18	W10728475 Whirlpool Foam Seal
19	WP3400832 Whirlpool Screw
