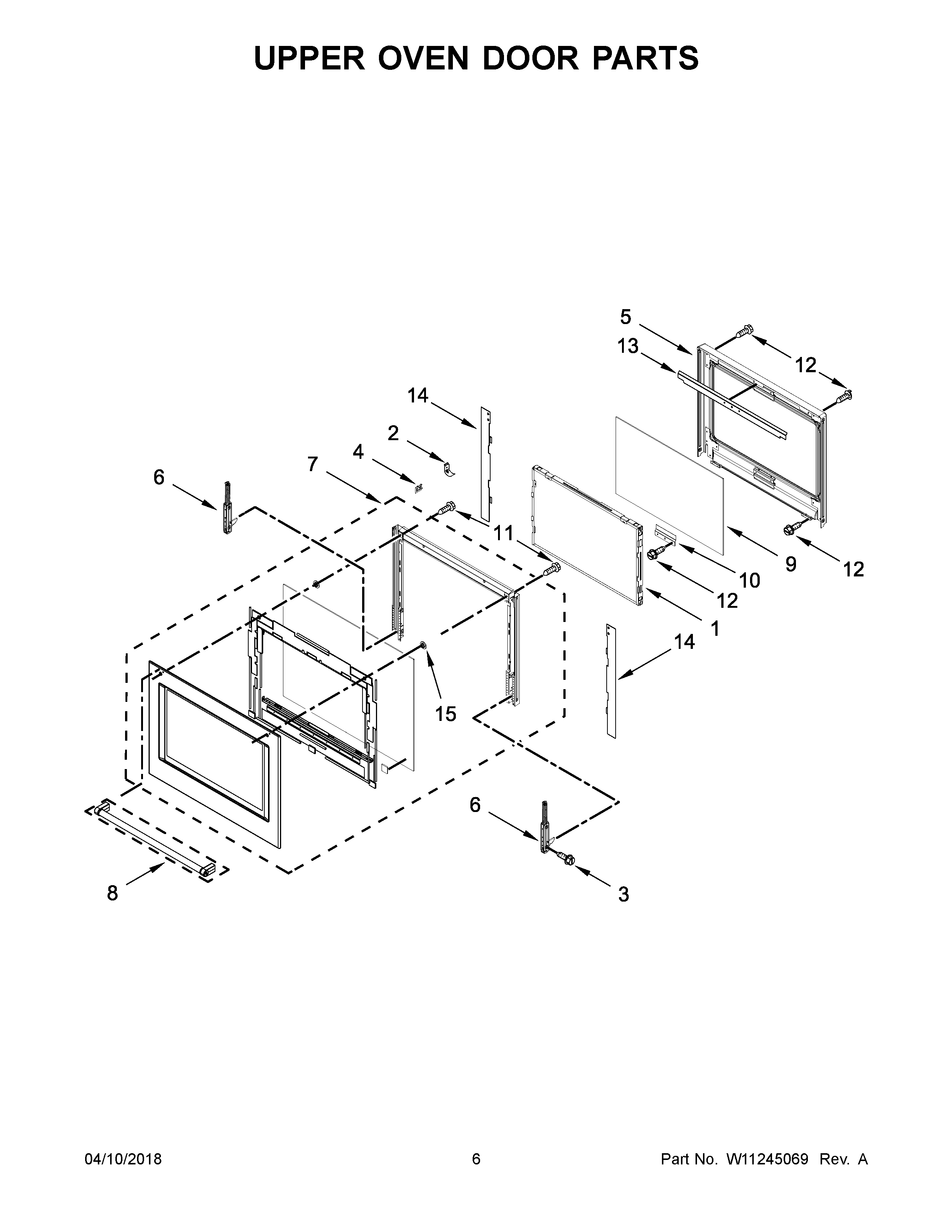

KODE500EBL04 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	WPW10347596 Whirlpool Stove Middle Door Glass Panel
2	W10812024 Whirlpool Glass Bracket
3	WP3196183 Whirlpool Screw
4	W11025615 Whirlpool Glass Bracket
5	WPW10709147 Whirlpool Glass Frame
6	W10825778 Whirlpool Whirlpool Door Hinge
7	W11354841 Whirlpool Door Glass
7B	W11354870 Whirlpool Range Door Glass
7A	W11354849 Whirlpool Glass Door
7C	W11354880 Whirlpool Glass Door
8	W11518518 Whirlpool Door Handle
9	W10827059 Whirlpool Oven Microwave Door Glass Assembly
10	W10853628 Whirlpool Oven Range Glass Bracket
11	W10831019 Whirlpool Stove Door Screw
12	SCREW
13	W10669415 Whirlpool Glass Bracket
14	W10687815 Whirlpool Glass Bracket
14A	W10687814 Whirlpool Glass Bracket
15	W11676355 Whirlpool Washer
