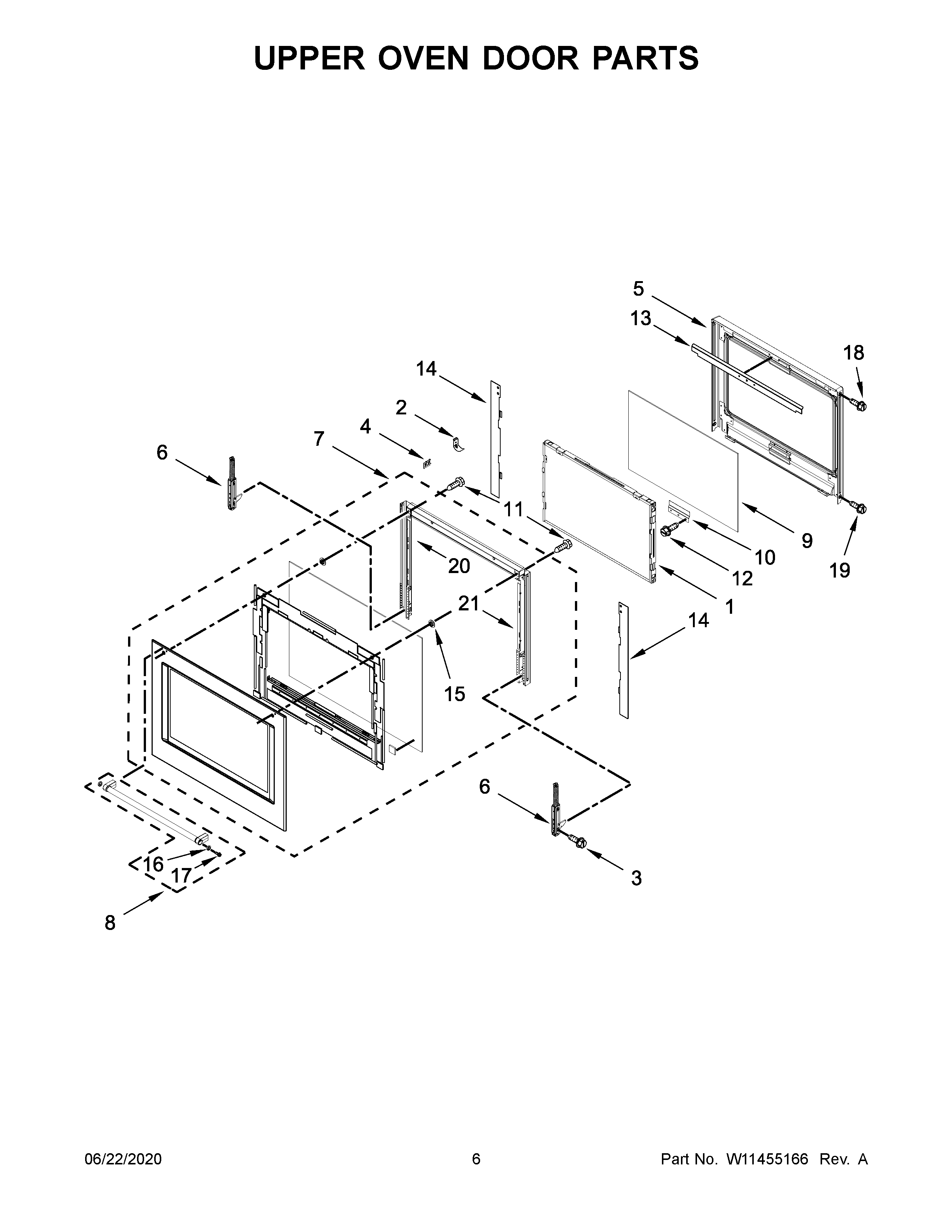

KODE500EBS05 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	W11455086 Whirlpool Door Glass
2	W10812024 Whirlpool Glass Bracket
3	WP3196183 Whirlpool Screw
4	W11025615 Whirlpool Glass Bracket
5	WPW10709147 Whirlpool Glass Frame
6	W11642291 Whirlpool Door Hinge
7A	W11354849 Whirlpool Glass Door
7C	W11354880 Whirlpool Glass Door
7B	W11354870 Whirlpool Range Door Glass
7	W11354841 Whirlpool Door Glass
8	W11518518 Whirlpool Door Handle
9	W11455100 Whirlpool Door Glass Assembly
10	W10853628 Whirlpool Oven Range Glass Bracket
11	W10831019 Whirlpool Stove Door Screw
12	SCREW
13	W10669415 Whirlpool Glass Bracket
14	W10687815 Whirlpool Glass Bracket
14A	W10687814 Whirlpool Glass Bracket
15	W11676355 Whirlpool Washer
16	W10846207 Whirlpool KA Handle MEDALLIONS-RED
17	W10920281 Whirlpool Screw
18	WPY706189 Whirlpool Stove Screw
19	SCREW (BLACK)
20	W11355410 Whirlpool Support Bracket Assembly
21	W11355411 Whirlpool Support Bracket
