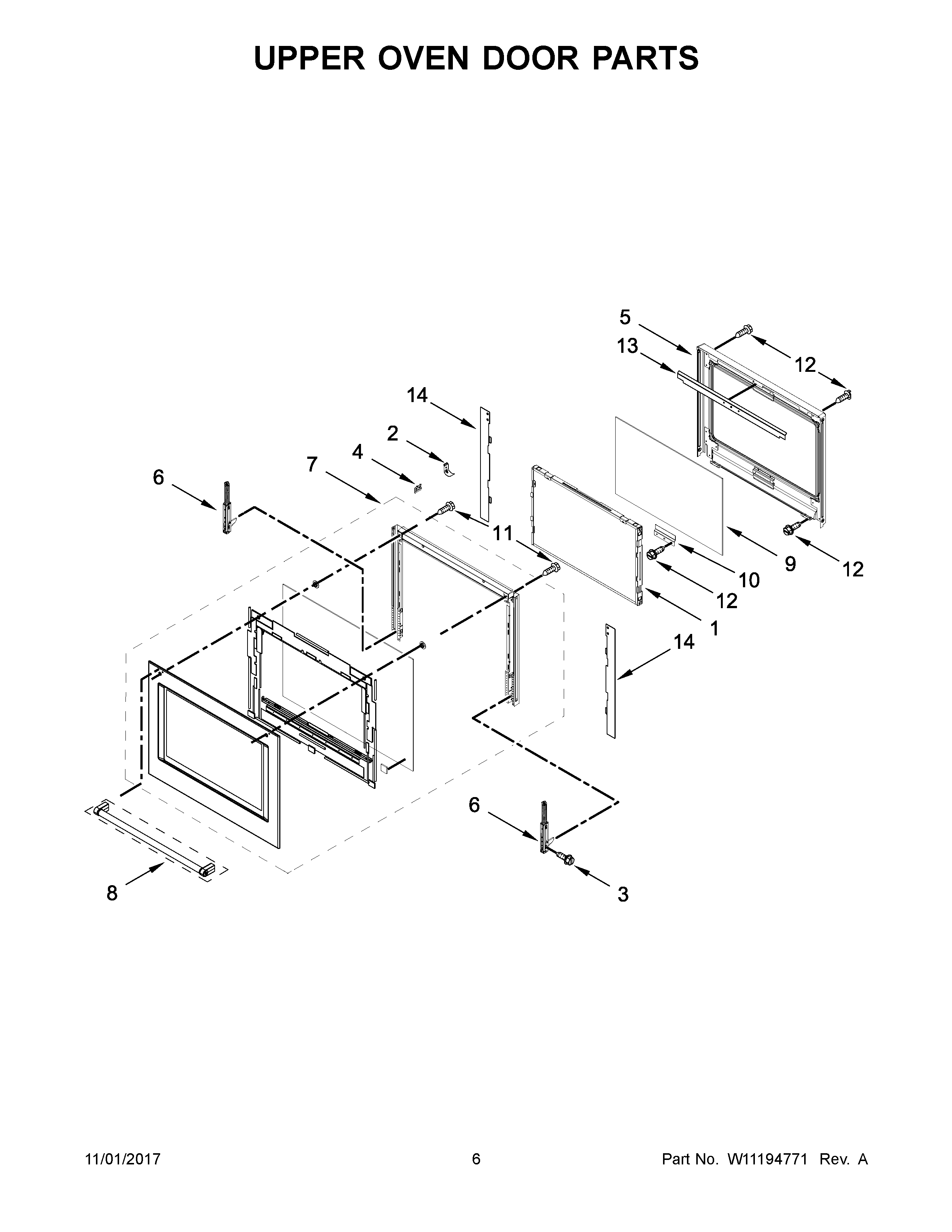

KODE500ESS03 04 – UPPER OVEN DOOR PARTS

KODE500ESS03 04 – UPPER OVEN DOOR PARTS

Written by

in

KODE500ESS03 04 – UPPER OVEN DOOR PARTS

Products

PositionProduct
1WPW10347596 Whirlpool Stove Middle Door Glass Panel
2W10812024 Whirlpool Glass Bracket
3WP3196183 Whirlpool Screw
4W11025615 Whirlpool Glass Bracket
5WPW10709147 Whirlpool Glass Frame
6W10825778 Whirlpool Whirlpool Door Hinge
7AW11354849 Whirlpool Glass Door
7BW11354870 Whirlpool Range Door Glass
7CW11354880 Whirlpool Glass Door
7W11354841 Whirlpool Door Glass
8W11518518 Whirlpool Door Handle
9W10827059 Whirlpool Oven Microwave Door Glass Assembly
10W10853628 Whirlpool Oven Range Glass Bracket
11W10831019 Whirlpool Stove Door Screw
12SCREW
13W10669415 Whirlpool Glass Bracket
14AW10687814 Whirlpool Glass Bracket
14W10687815 Whirlpool Glass Bracket
