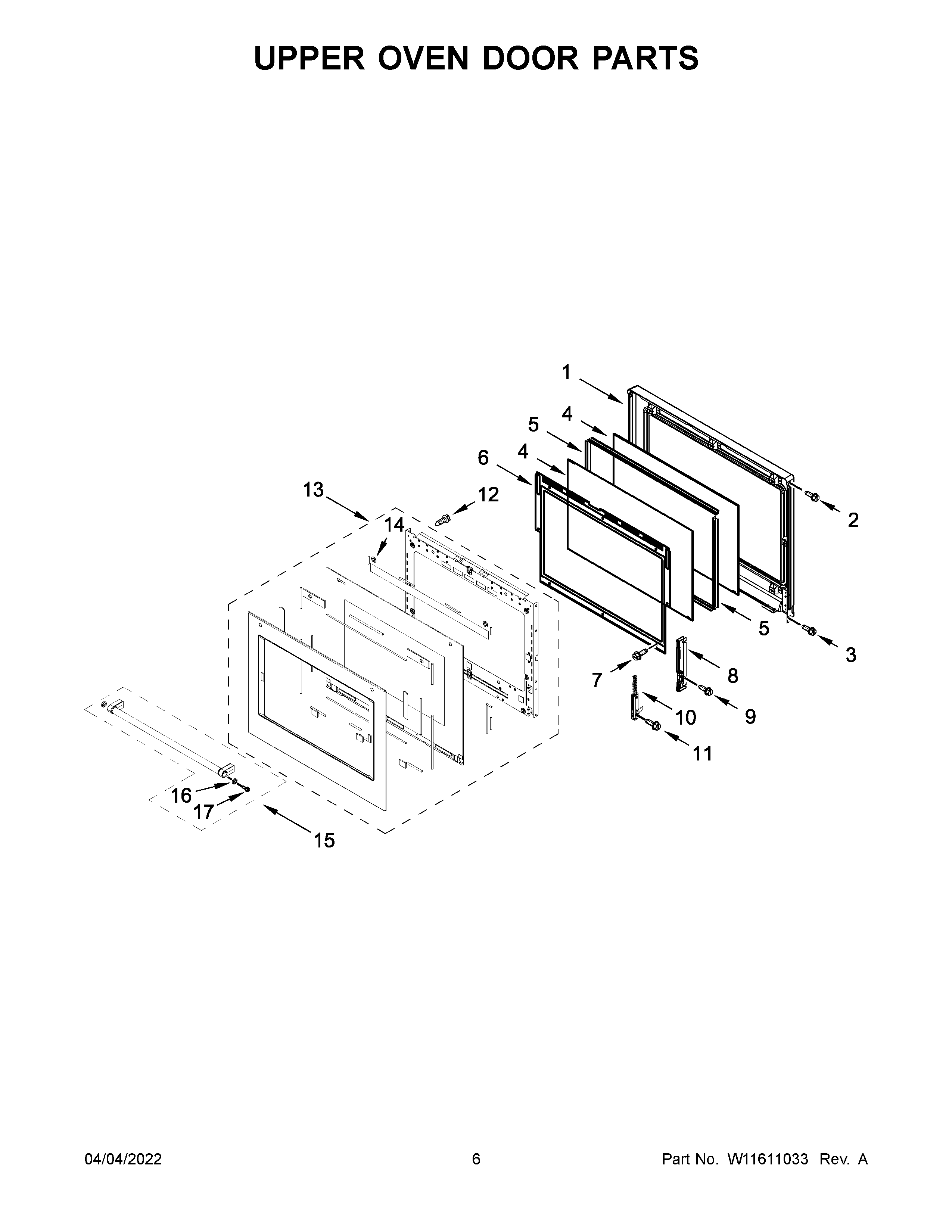

KODE500ESS20 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	W11617223 Whirlpool Glass Frame
2	SCREW
3	W11617225 Whirlpool Oven Screw
4	WPW10618107 Whirlpool Door Glass Assembly
5	SPACER
6	W11598182 Whirlpool Retainer Clip
7	SCREW
8	HINGE-RECV
9	WPW10254050 Whirlpool Screw
10A	W11699927 Whirlpool Door Hinge
10	W11700313 Whirlpool Door Hinge
11	WP3196183 Whirlpool Screw
12	W11602624 Whirlpool Oven Screw
13B	W11600221 Whirlpool Door Glass
13A	W11600222 Whirlpool Door Glass
13	W11600236 Whirlpool Door Glass
14	W11676355 Whirlpool Washer
15	W11518518 Whirlpool Door Handle
16	W10846207 Whirlpool KA Handle MEDALLIONS-RED
17	W10920281 Whirlpool Screw
