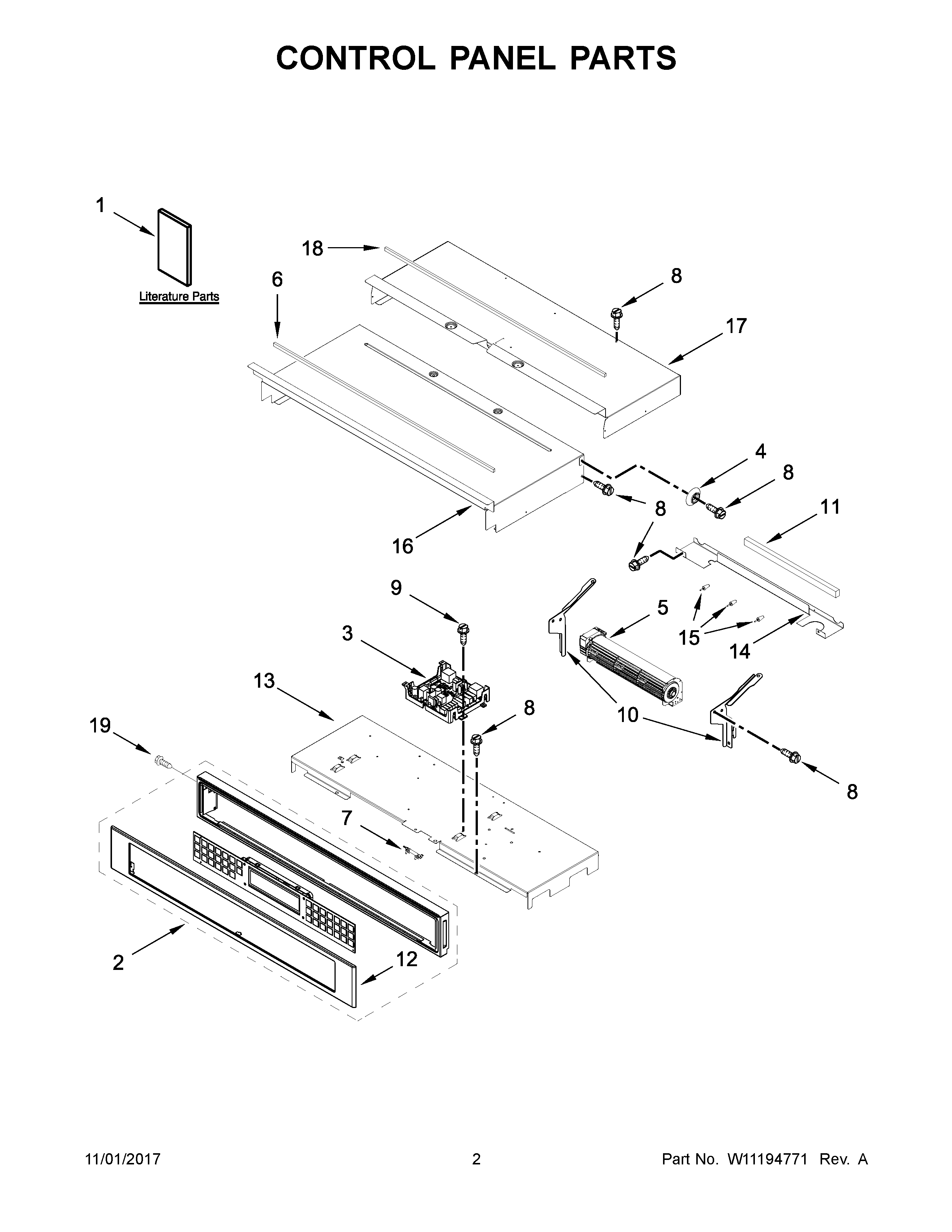

KODE500EWH03 02 – CONTROL PANEL PARTS

KODE500EWH03 02 – CONTROL PANEL PARTS

Written by

in

KODE500EWH03 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11132989 Whirlpool Wire Harness
NIW11157221 Whirlpool Wire Harness
NIW10760039 Whirlpool Hardware
NIHARNESS, MAIN
NI16515 Whirlpool Clip
NI4452400 Whirlpool Microwave Wire Harness
NIW11699910 Whirlpool Wire Harness
NIW10655464 Whirlpool Bracket
NI4450800 Whirlpool Oven Screw
NIW11177679 Whirlpool Wire Harness
NI4448664 Whirlpool Oven Mounting Bracket
1BSHEET, TECH
1AINSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE
2CW11086152-includeCORE Whirlpool W11086152 Refrigerator Control Panel with Core
2BW11086141-includeCORE Whirlpool W11086141 Refrigerator Console Panel + Core
2W11087449 Whirlpool Console + Core
2AW10916776 Whirlpool Membrane Switch
3AW10801665-includeCORE Whirlpool W10801665 Refrigerator Electronic Control Board
3W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4W10618105 Whirlpool Spacer
5W11245567 Whirlpool Blower Assembly
6WPW10657548 Whirlpool Foam Seal
7W11204568 Whirlpool Thermal Fuse
8SCREW
9SCREW
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12APANL-CNTRL
12W10588744 Whirlpool Control Panel
12BW10588740 Whirlpool Control Panel
12CW10776407 Whirlpool Control Panel
13TRAY, ELECTRONIC
14W10655465 Whirlpool Mounting Bracket
15W10351295 Whirlpool Bumper Assembly
16W10318192 Whirlpool Cabinet Top
17W10904156 Whirlpool Cabinet Top
18W10728475 Whirlpool Foam Seal
19WP3400832 Whirlpool Screw
