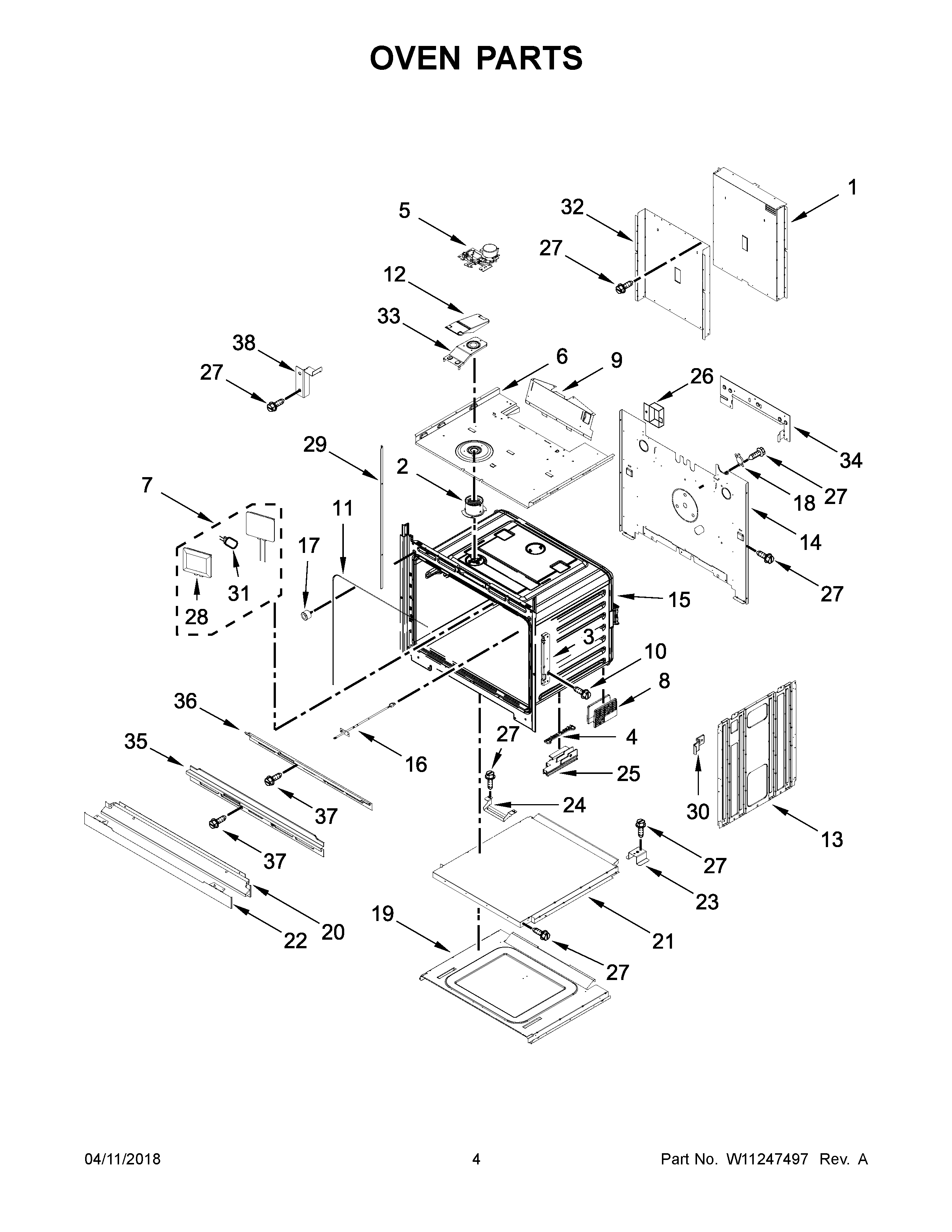

KODE507EBL04 03 – OVEN PARTS

Products

Position	Product
NI	W10520716 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11688333 Whirlpool Insulation
1	W10318196 Whirlpool BA Chassis
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	W11240831 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	CHASSIS, TOP
7	W11292252 Whirlpool Oven Light
8	FOOT, BASE
9	W10904163 Whirlpool Vent Deflector
10	WPW10254050 Whirlpool Screw
11	W10856596 Whirlpool Oven Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	BACK, CHASSIS
16	W10859573 Whirlpool Range Oven Temperature Sensor
17	WPW10351278 Whirlpool Bumper
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	BASE, CHASSIS
20B	WPW10351280 Whirlpool Oven Vent
20A	W10506345 Whirlpool Vent
20C	ASSEMBLY, BOTTOM VENT (BLACK STAINLESS)
20	WPW10327375 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22	WPW10351237 Whirlpool Trim
22A	WPW10504025 Whirlpool Trim
22B	WPW10327378 Whirlpool Trim
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	W10848812 Whirlpool Level Foot
26	8285593 Whirlpool Oven Wire Cover
27	SCREW
28	WPW10519866 Whirlpool Light
29A	W10536161 Whirlpool Oven Trim Cover Kit
30	W10347649 Whirlpool Spacer
31	WPW10472384 Whirlpool Light Bulb
32	DUCT, CHASSIS BACK (LOWER)
33	W10616809 Whirlpool Vent Tube
34	W10588736 Whirlpool Support Bracket
35	W10283041 Whirlpool Exhaust Vent
36	W10283037 Whirlpool Exhaust Vent
37	SCREW
38A	W10863233 Whirlpool Bracket
38	W10863234 Whirlpool Bracket
