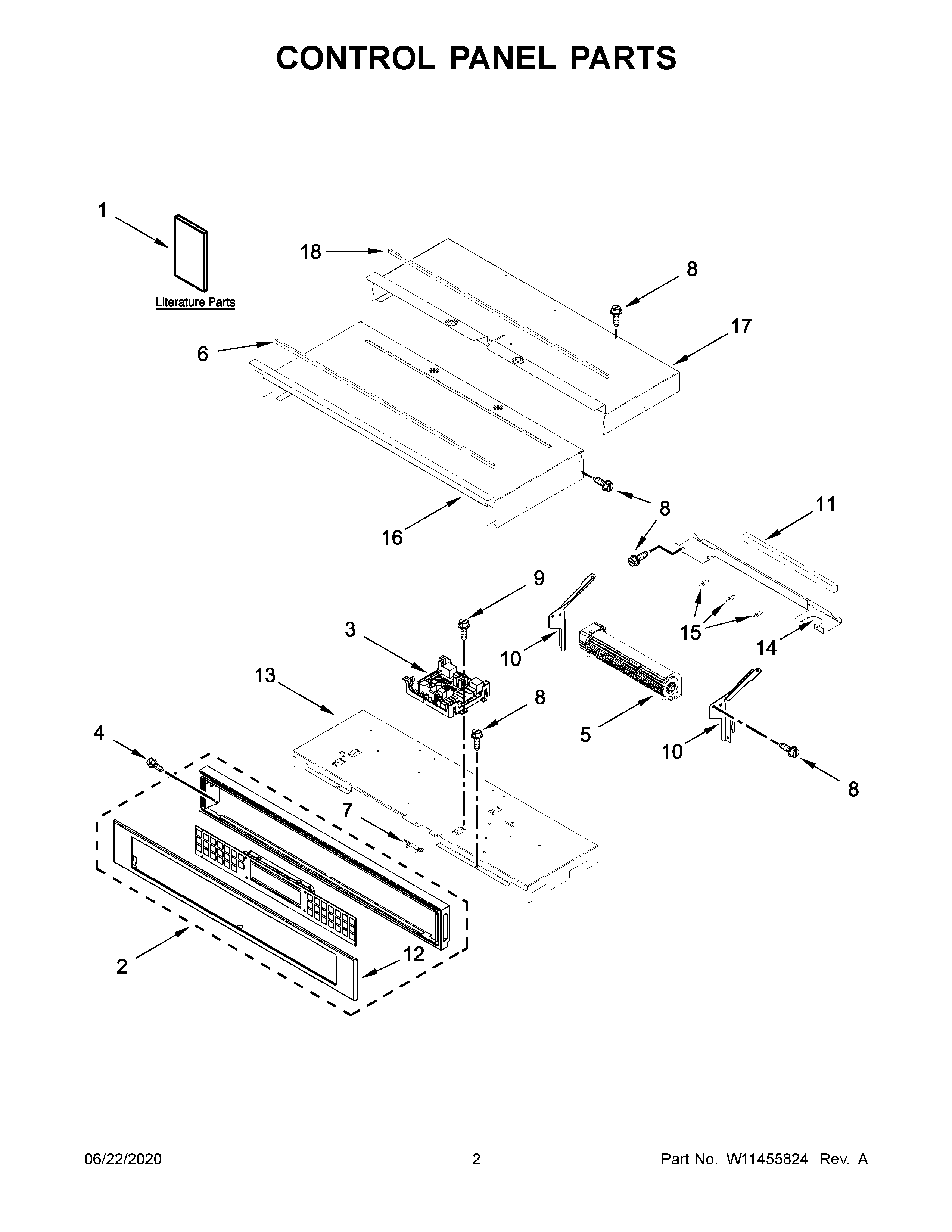

KODE507EBL05 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11699910 Whirlpool Wire Harness
NIW11157221 Whirlpool Wire Harness
NIW10760039 Whirlpool Hardware
NIW11177679 Whirlpool Wire Harness
NIW11136133 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NISTRAP, LEAD GROUND
NIW11132989 Whirlpool Wire Harness
NIW10655464 Whirlpool Bracket
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
1GUIDE, USE & CARE
1AINSTRUCTIONS, INSTALLATION
1CSHEET, TECH
1BINSTRUCTIONS, INSTALLATION (BLACK STAINLESS MODELS ONLY)
2AW10916777 Whirlpool Membrane Switch
2W11093253 Whirlpool Control Panel
2CW10916763 Whirlpool Membrane Switch
2BW11093251 Whirlpool Control Panel
3W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
3AW10801665-includeCORE Whirlpool W10801665 Refrigerator Electronic Control Board
4WPY706189 Whirlpool Stove Screw
5W11245567 Whirlpool Blower Assembly
6GASKET, RUBBER (652MM)
7W11204568 Whirlpool Thermal Fuse
8SCREW
9SCREW
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12W10588745 Whirlpool Control Panel
12AW10588747 Whirlpool Control Panel
12BW10588741 Whirlpool Control Panel
12CW10909789 Whirlpool Control Panel
13TRAY, ELECTRONIC
14W10655465 Whirlpool Mounting Bracket
15W10351295 Whirlpool Bumper Assembly
16W10318193 Whirlpool Cabinet Top
17CHASSIS, COVER TOP BACK 27"
18W10728475 Whirlpool Foam Seal
