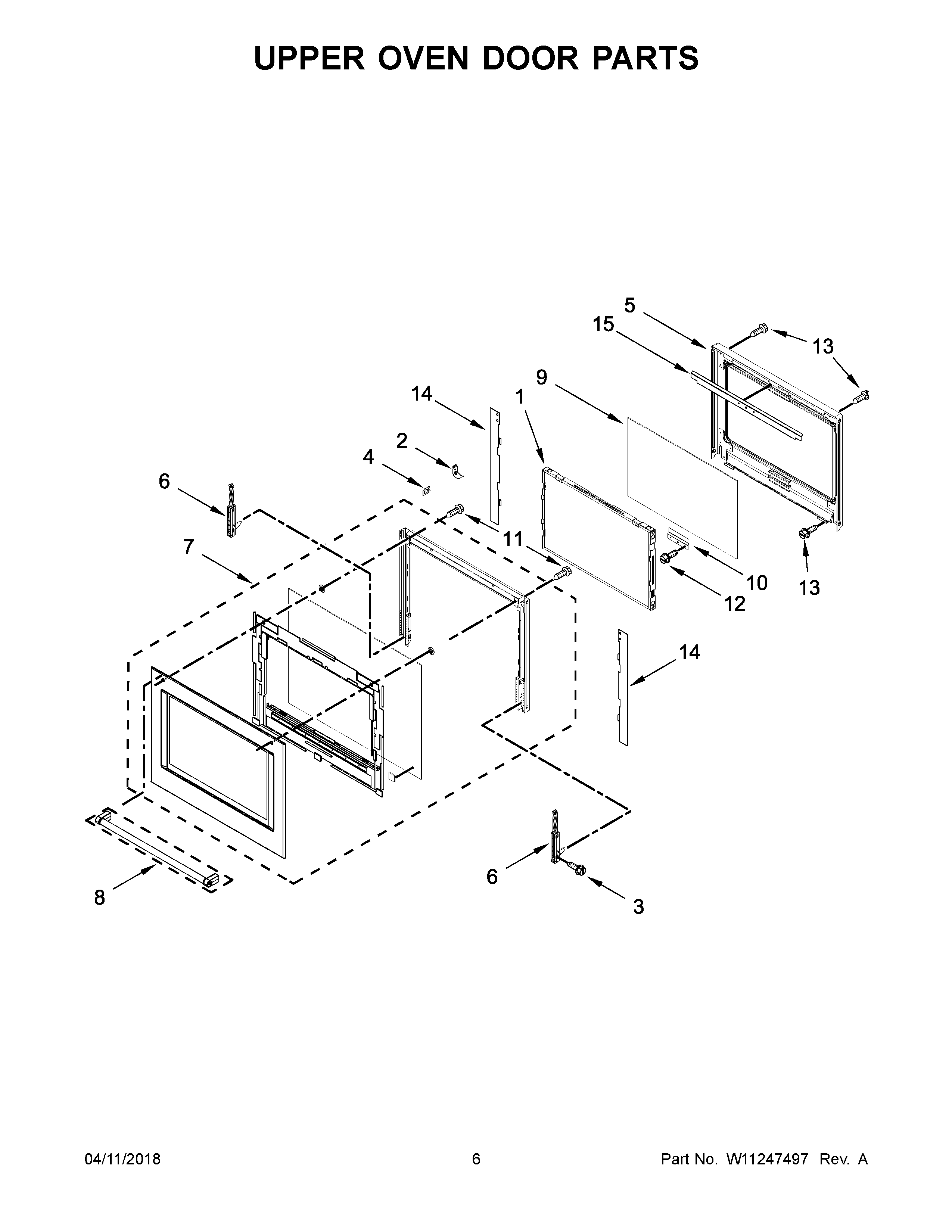

KODE507EBS04 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	WPW10347597 Whirlpool Door Glass
2	W10812024 Whirlpool Glass Bracket
3	WP3196183 Whirlpool Screw
4	W11025615 Whirlpool Glass Bracket
5	WPW10320793 Whirlpool Glass Frame
6	W11642291 Whirlpool Door Hinge
7B	W10774423 Whirlpool Door Glass
7A	W10774422 Whirlpool Door Glass
7	W10774421 Whirlpool Glass Door
7C	W10909944 Whirlpool Glass Door
8	W11525064 Whirlpool Door Handle
9	W10829001 Whirlpool Oven Wall Inner Door Glass
10	W10853628 Whirlpool Oven Range Glass Bracket
11	W10831019 Whirlpool Stove Door Screw
12	SCREW
13	SCREW (BLACK)
14	W10687815 Whirlpool Glass Bracket
14A	W10687814 Whirlpool Glass Bracket
15	W10669415 Whirlpool Glass Bracket
