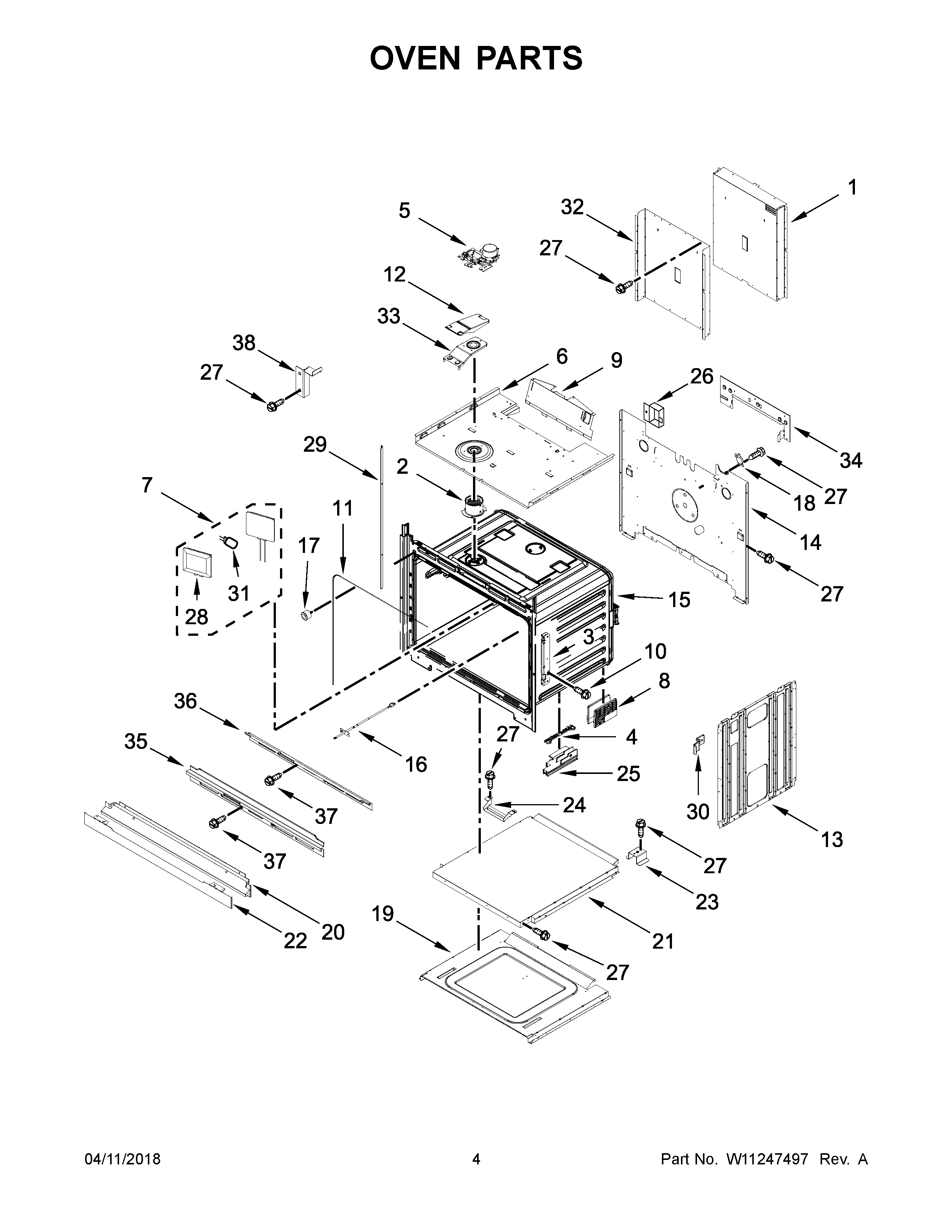

KODE507ESS04 03 – OVEN PARTS

Products

PositionProduct
NIW10520716 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIW11688333 Whirlpool Insulation
1W10318196 Whirlpool BA Chassis
2W11240525 Whirlpool Vent Tube
3W11613828 Whirlpool Hinge Receptacle
4W11240831 Whirlpool Spacer
5W10883049 Whirlpool Door Latch
6CHASSIS, TOP
7W11292252 Whirlpool Oven Light
8FOOT, BASE
9W10904163 Whirlpool Vent Deflector
10WPW10254050 Whirlpool Screw
11W10856596 Whirlpool Oven Gasket
12W10616810 Whirlpool Exhaust Cover
13SIDE, CHASSIS
14BACK, CHASSIS
16W10859573 Whirlpool Range Oven Temperature Sensor
17WPW10351278 Whirlpool Bumper
18WP4449751 Whirlpool Range Oven Thermostat Fix
19BASE, CHASSIS
20BWPW10351280 Whirlpool Oven Vent
20AW10506345 Whirlpool Vent
20CASSEMBLY, BOTTOM VENT (BLACK STAINLESS)
20WPW10327375 Whirlpool Oven Vent
21WPW10283008 Whirlpool Access Cover
22WPW10351237 Whirlpool Trim
22AWPW10504025 Whirlpool Trim
22BWPW10327378 Whirlpool Trim
23W10213759 Whirlpool Support
24W10351308 Whirlpool Support Bracket
25W10848812 Whirlpool Level Foot
268285593 Whirlpool Oven Wire Cover
27SCREW
28WPW10519866 Whirlpool Light
29AW10536161 Whirlpool Oven Trim Cover Kit
30W10347649 Whirlpool Spacer
31WPW10472384 Whirlpool Light Bulb
32DUCT, CHASSIS BACK (LOWER)
33W10616809 Whirlpool Vent Tube
34W10588736 Whirlpool Support Bracket
35W10283041 Whirlpool Exhaust Vent
36W10283037 Whirlpool Exhaust Vent
37SCREW
38AW10863233 Whirlpool Bracket
38W10863234 Whirlpool Bracket
