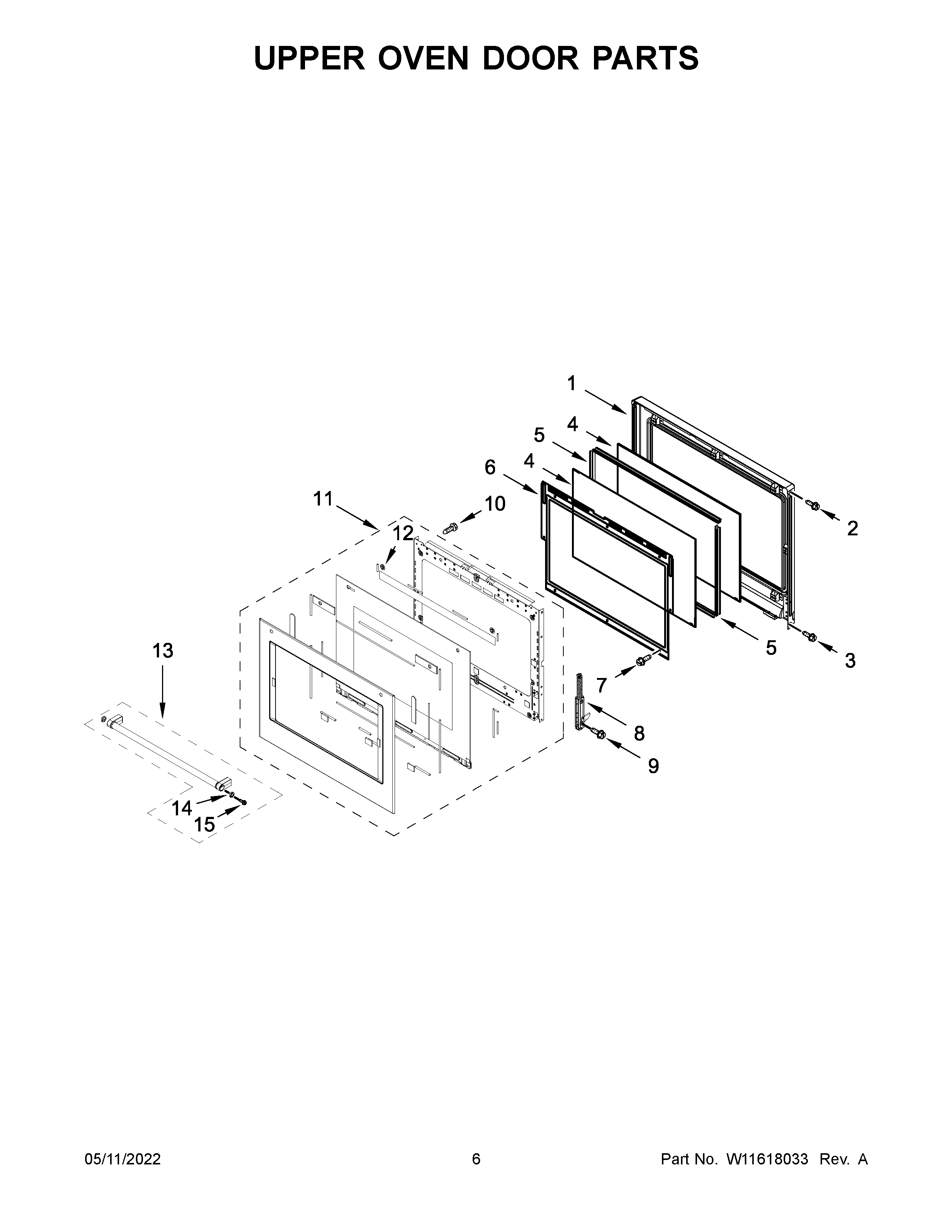

KODE507ESS20 04 – UPPER OVEN DOOR PARTS

KODE507ESS20 04 – UPPER OVEN DOOR PARTS

Written by

in

KODE507ESS20 04 – UPPER OVEN DOOR PARTS

Products

PositionProduct
1W11598186 Whirlpool Glass Frame
2SCREW
3W11617225 Whirlpool Oven Screw
4WPW10284902 Whirlpool Door Glass
5W11598187 Whirlpool Bracket Assembly
6W11598188 Whirlpool Retainer
7SCREW
8W11617222 Whirlpool Oven Door Hinge
8AW11617231 Whirlpool Oven Door Hinge
9WP3196183 Whirlpool Screw
10W11602624 Whirlpool Oven Screw
11AW11600239 Whirlpool Door Glass
11W11600240 Whirlpool Door Glass
11BW11600238 Whirlpool Door Glass
12W11676355 Whirlpool Washer
13W11525064 Whirlpool Door Handle
14W10846207 Whirlpool KA Handle MEDALLIONS-RED
15W10920281 Whirlpool Screw
