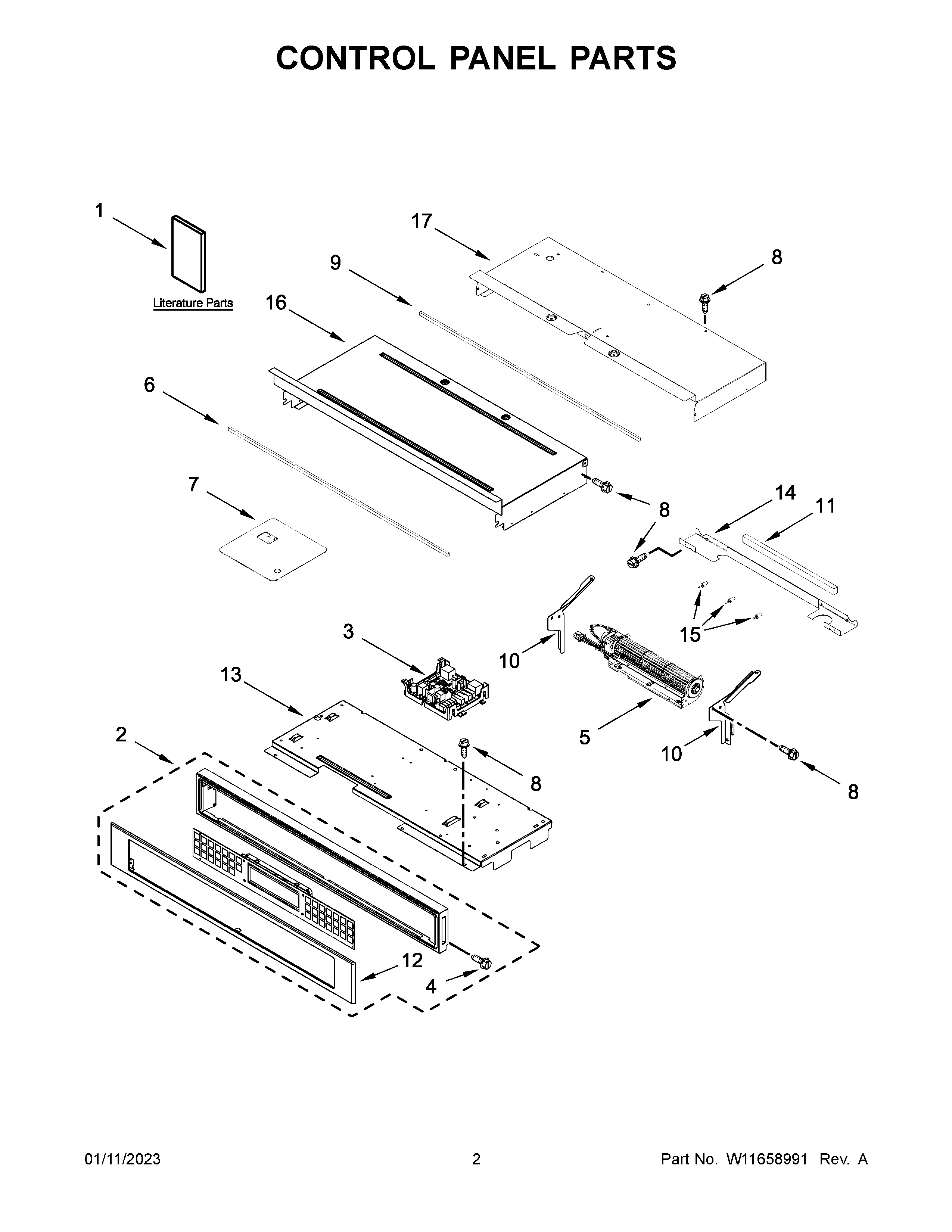

KODE507ESS21 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11727826 Whirlpool Wire Harness
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIW11699910 Whirlpool Wire Harness
NISTRAP, LEAD GROUND
NI16515 Whirlpool Clip
NIW11602626 Whirlpool Oven Microwave Hardware
NIW11245674 Whirlpool Wire Harness
NIW11256625 Whirlpool Wire Harness
NIW10655464 Whirlpool Bracket
1OWNER'S MANUAL
1AQUICK START GUIDE
1BTECH SHEET
2W11600646 Whirlpool Control Panel
3W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
3AW11598200-includeCORE Whirlpool W11598200 Washer Electronic Control Board + Core
4SCREW (BLACK)
5BLOWER
6GASKET, RUBBER (652MM)
7COVER, WIFI
8SCREW
9W10728475 Whirlpool Foam Seal
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12W10588741 Whirlpool Control Panel
13TRAY, ELECTRONIC
14DIVIDER, CHASSIS BACK
15W10351295 Whirlpool Bumper Assembly
16COVER, TOP FRONT 27 IN CHASSIS
17COVER, TOP BACK 27 IN CHASSIS
