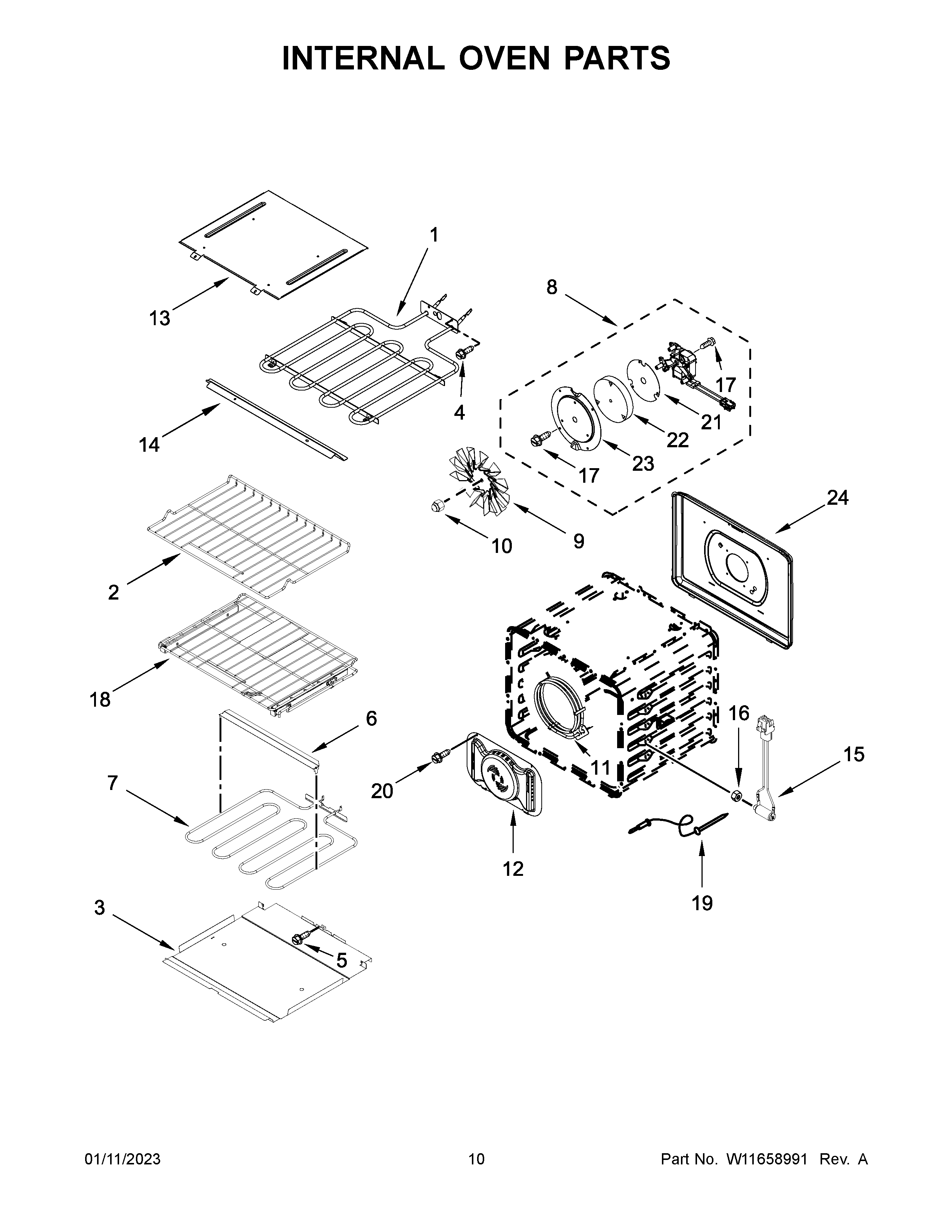

KODE507ESS21 06 – INTERNAL OVEN PARTS

Products

Position	Product
1	W11598122 Whirlpool Broil Element
2	WPW10554529 Whirlpool Oven Rack
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	W11617227 Whirlpool Fan Motor
9	W11548753 Whirlpool Convection Fan
10	W11548755 Whirlpool Nut
11	W11678579 Whirlpool Element
12	W11234761 Whirlpool Baffle Convector
13	TOP-CABNT
14	SHIELD-HT
15	W11252826 Whirlpool Probe Jack
16	W11231343 Whirlpool Lock Nut
17	W10850807 Whirlpool Screw
19	WP9755542 Whirlpool Oven Meat Probe
20	WP74003976 Whirlpool Screw
21	PLATE, CONVECT MOTOR
22	INSULATION, CONVECT MOTOR
23	COVER, CONVECT PLATE
24	BACK, 27 IN CAVITY BAFFLE BOWTIE
