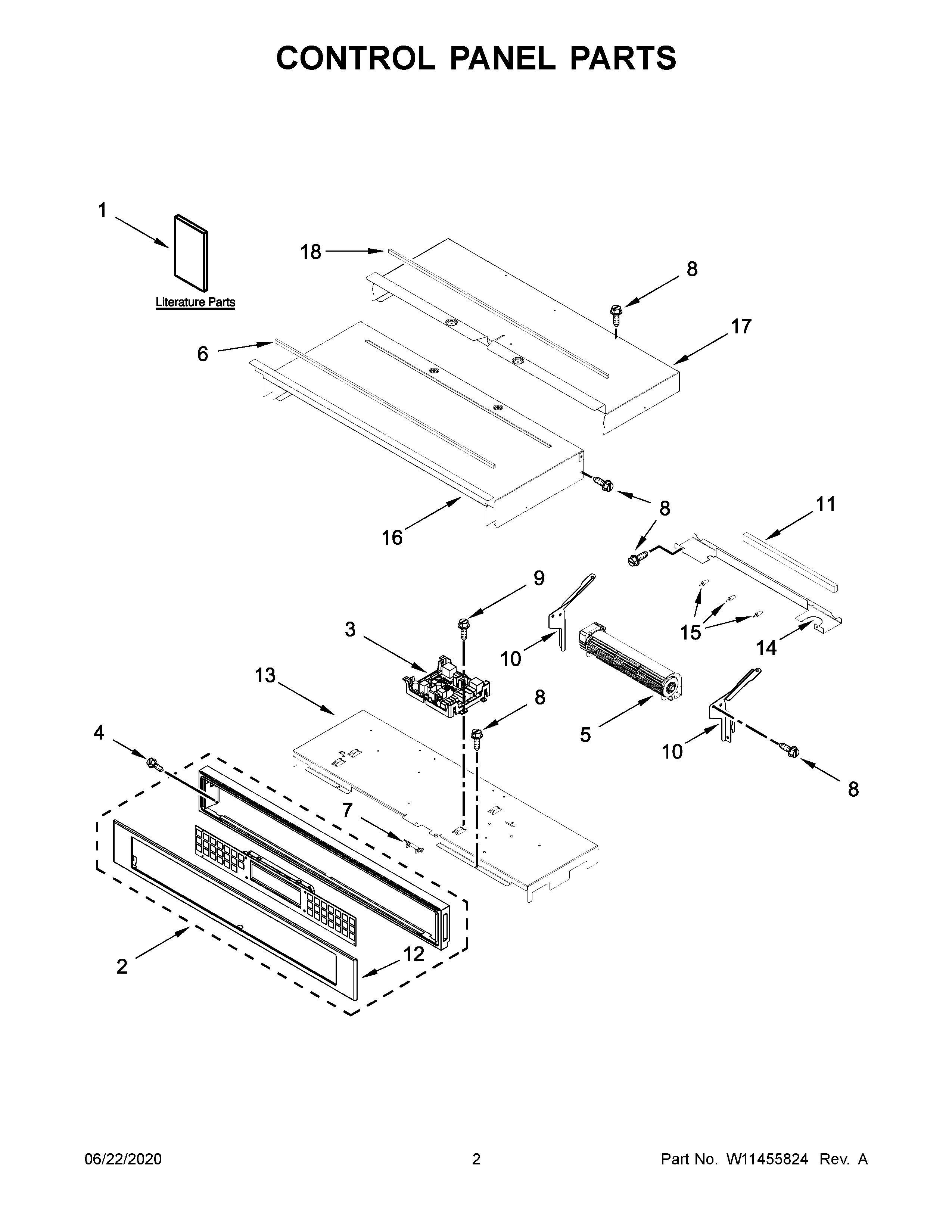

KODE507EWH05 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11699910 Whirlpool Wire Harness
NI	W11157221 Whirlpool Wire Harness
NI	W10760039 Whirlpool Hardware
NI	W11177679 Whirlpool Wire Harness
NI	W11136133 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	STRAP, LEAD GROUND
NI	W11132989 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1C	SHEET, TECH
1B	INSTRUCTIONS, INSTALLATION (BLACK STAINLESS MODELS ONLY)
2A	W10916777 Whirlpool Membrane Switch
2	W11093253 Whirlpool Control Panel
2C	W10916763 Whirlpool Membrane Switch
2B	W11093251 Whirlpool Control Panel
3	W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
3A	W10801665-includeCORE Whirlpool W10801665 Refrigerator Electronic Control Board
4	WPY706189 Whirlpool Stove Screw
5	W11245567 Whirlpool Blower Assembly
6	GASKET, RUBBER (652MM)
7	W11204568 Whirlpool Thermal Fuse
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	W10588745 Whirlpool Control Panel
12A	W10588747 Whirlpool Control Panel
12B	W10588741 Whirlpool Control Panel
12C	W10909789 Whirlpool Control Panel
13	TRAY, ELECTRONIC
14	W10655465 Whirlpool Mounting Bracket
15	W10351295 Whirlpool Bumper Assembly
16	W10318193 Whirlpool Cabinet Top
17	CHASSIS, COVER TOP BACK 27"
18	W10728475 Whirlpool Foam Seal
