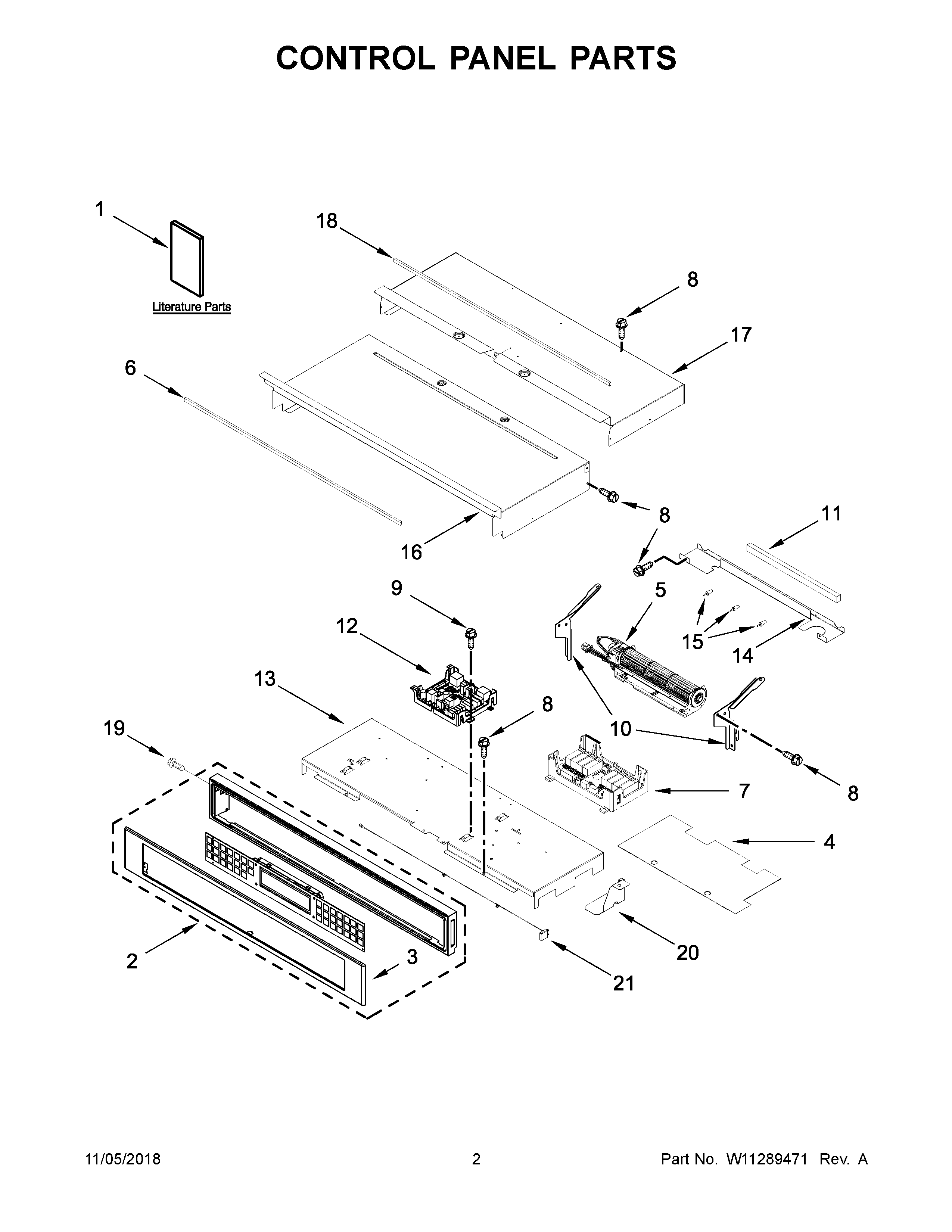

KODE900HBS00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	W11158088 Whirlpool Wire Harness
NI	W11233570 Whirlpool Wire Harness
NI	W10760039 Whirlpool Hardware
NI	W11219538 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	WPW10339879 Whirlpool Wire Tie
NI	W11699910 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	W10487999 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
1	GUIDE, USE & CARE
1C	GUIDE, INTERNET CONNECTIVITY
1A	INSTRUCTIONS, INSTALLATION
1B	DIAGRAM, WIRING
2	W11399172 Whirlpool Console + Core
2A	W11399171 Whirlpool Console + Core
3	W10588740 Whirlpool Control Panel
3A	W10776407 Whirlpool Control Panel
4	PAD, INSULATOR
5	W11248652 Whirlpool Blower
6	GASKET, RUBBER
7	W11294389-includeCORE Whirlpool W11294389 Washer Electronic Control Board + Core
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	W11294388-includeCORE Whirlpool W11294388 Refrigerator Electronic Control Board
13	TRAY, ELECTRONIC
14	W10655465 Whirlpool Mounting Bracket
15	W10351295 Whirlpool Bumper Assembly
16	CHASSIS, COVER TOP FRONT 30"
17	W10904156 Whirlpool Cabinet Top
18	W10728475 Whirlpool Foam Seal
19	SCREW
20	SUPPORT, ELECTRONIC TRAY
21	W11537624 Whirlpool Antenna Assembly
