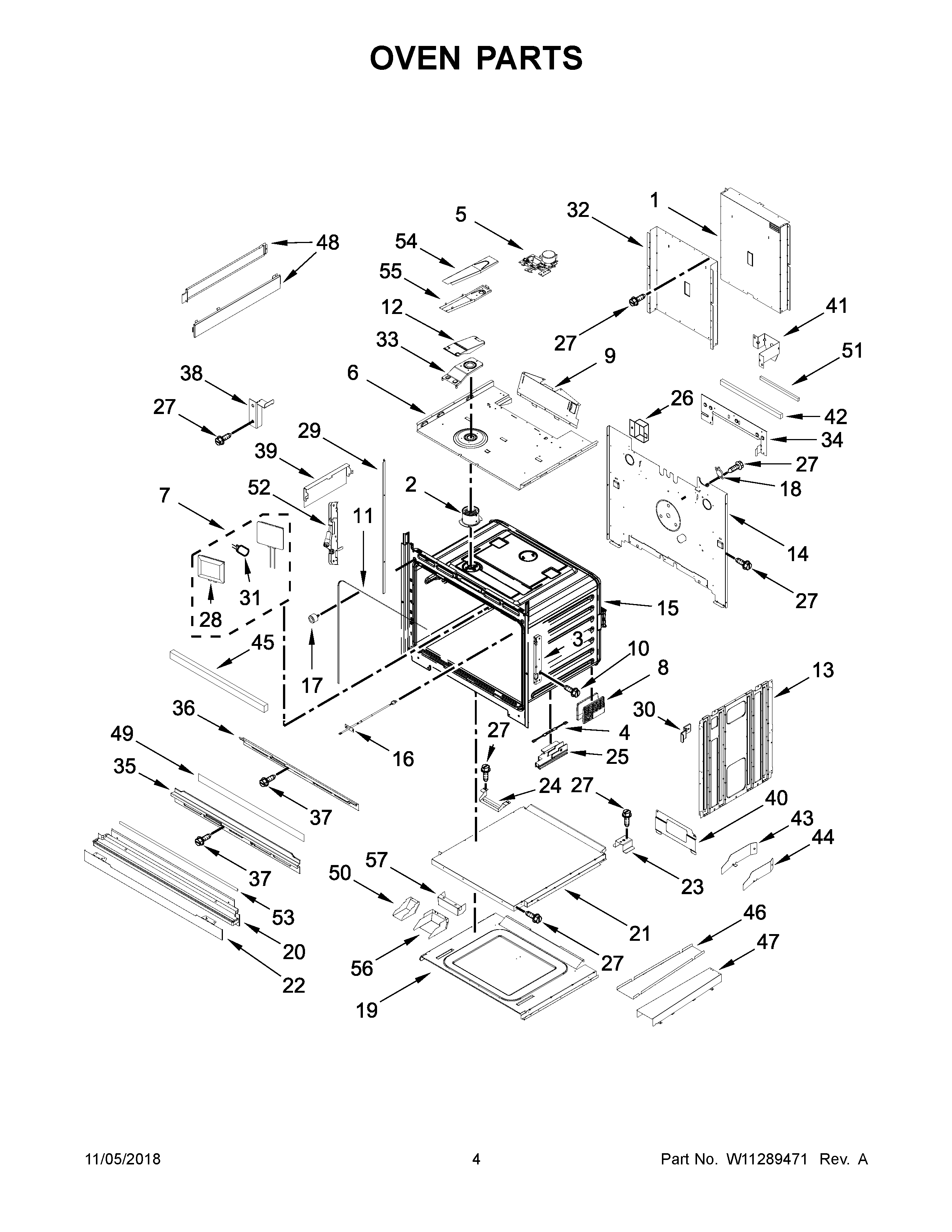

KODE900HBS00 03 – OVEN PARTS

Products

Position	Product
NI	W11688731 Whirlpool Insulation
NI	W11685004 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11292324 Whirlpool Insulation
1	W10318196 Whirlpool BA Chassis
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	W11292538 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11292252 Whirlpool Oven Light
8	FOOT, BASE
9	W10904163 Whirlpool Vent Deflector
10	WPW10254050 Whirlpool Screw
11	GASKET
12	W10616810 Whirlpool Exhaust Cover
13	PANEL-SIDE
13A	SIDE, CHASSIS
14	BACK, CHASSIS
14A	BACK, CHASSIS (LOWER)
16	W11290976 Whirlpool Thermostat
17	WPW10351278 Whirlpool Bumper
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	W11238787 Whirlpool Manifold Pipe
20A	W11348370 Whirlpool Oven Vent
20	W11348369 Whirlpool Oven Vent Assembly
21	CHASSIS, BOTTOM DUCT
22	WPW10327377 Whirlpool Trim Kit
22A	WPW10351236 Whirlpool Trim
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	W10848812 Whirlpool Level Foot
26	8285593 Whirlpool Oven Wire Cover
27	SCREW
28	WPW10519866 Whirlpool Light
29A	W10536161 Whirlpool Oven Trim Cover Kit
30	SPACERS, FRONT
31	WPW10472384 Whirlpool Light Bulb
32	DUCT, CHASSIS BACK (LOWER)
33	W10616809 Whirlpool Vent Tube
34	BRACKET, U-SHAPE
35	W11294400 Whirlpool Oven Vent
36	VENT, TOP 30``
37	W11193480 Whirlpool Screw
38	W10863234 Whirlpool Bracket
38A	W10863233 Whirlpool Bracket
39	SHIELD, SLOW CLOSE HINGE
40	SPACER, CENTER
41	HAT BRACKET, REAR
42	GASKET, FOAM (243MM)
43	ANGLE, BOTTOM DUCT CORNER (LH)
44	ANGLE, BOTTOM DUCT CORNER (RH)
45	GASKET, RUBBER (652MM)
46	FLUE, BOTTOM
47	FLUE, TOP
48	WPL W11225775
48A	WPL W11232071
49	WPL W11218824
50	DEFLECTOR, BACK DUCT
51	WPL W11224619
52	W11045086 Whirlpool Hinge Receptacle
53	WPY706189 Whirlpool Stove Screw
54	COVER, VENT EXHAUST
55	BASE, VENT EXHAUST
56	WPL W11096841
57	WPL W11096842
