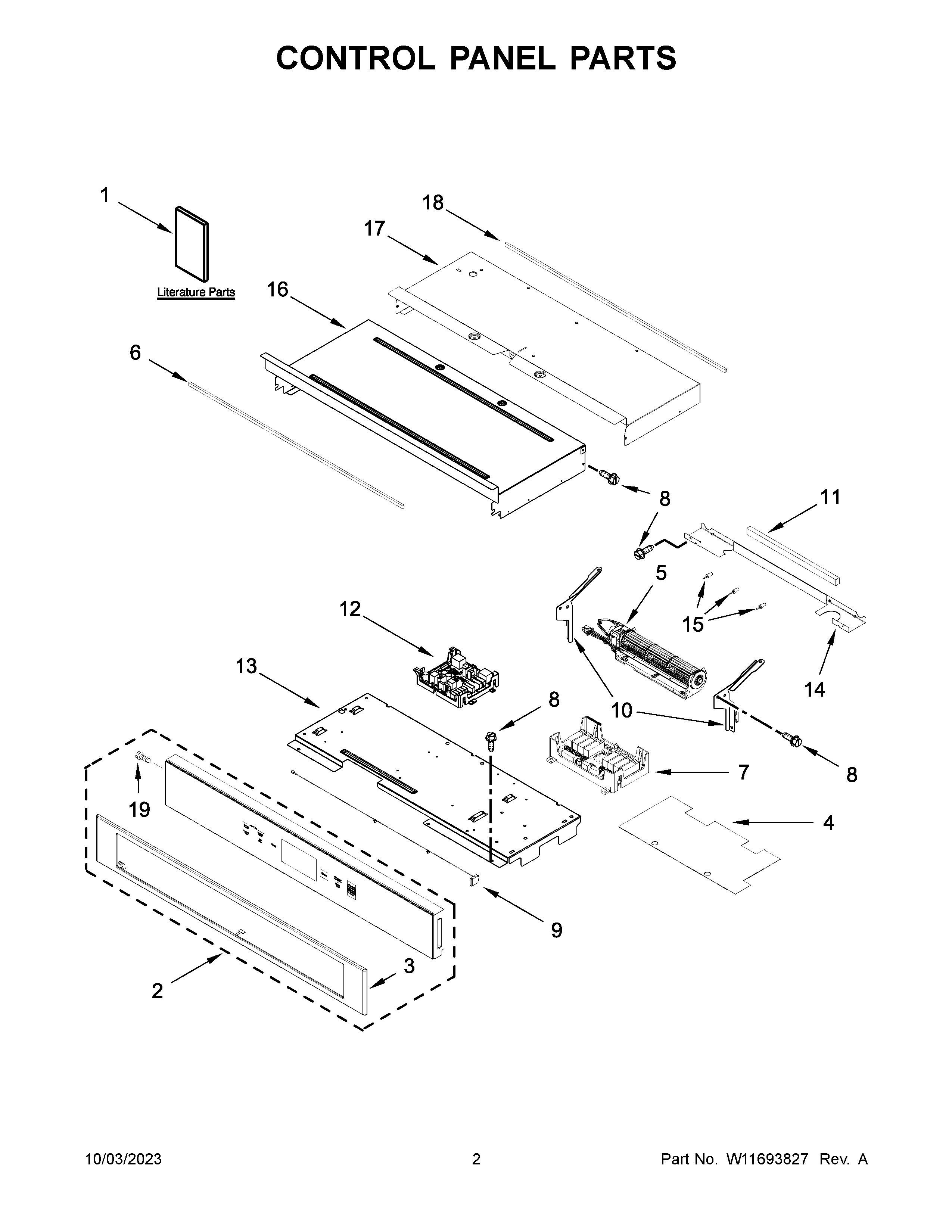

KODE900HBS21 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	4450800 Whirlpool Oven Screw
NI	W10487999 Whirlpool Clip
NI	W10655464 Whirlpool Bracket
NI	W11699910 Whirlpool Wire Harness
NI	W11727826 Whirlpool Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	16515 Whirlpool Clip
NI	W11233570 Whirlpool Wire Harness
NI	4448664 Whirlpool Oven Mounting Bracket
NI	W11602626 Whirlpool Oven Microwave Hardware
NI	HARNESS, SIGNAL
1B	TECH SHEET
1A	QUICK START GUIDE
1	OWNER'S MANUAL
2	W11598213 Whirlpool Console + Core
2A	W11598212 Whirlpool Console + Core
3	W10588740 Whirlpool Control Panel
3A	W10776407 Whirlpool Control Panel
4	PAD, INSULATOR
5	BLOWER
6	GASKET, RUBBER
7	W11294389-includeCORE Whirlpool W11294389 Washer Electronic Control Board + Core
8	SCREW
9	W11537624 Whirlpool Antenna Assembly
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	W11294388-includeCORE Whirlpool W11294388 Refrigerator Electronic Control Board
13	TRAY, ELECTRONIC
14	DIVIDER, CHASSIS BACK
15	W10351295 Whirlpool Bumper Assembly
16	COVER, 30 IN CHASSIS TOP FRONT
17	COVER, 30 IN CHASSIS TOP BACK
18	W10728475 Whirlpool Foam Seal
19	SCREW (BLACK)
