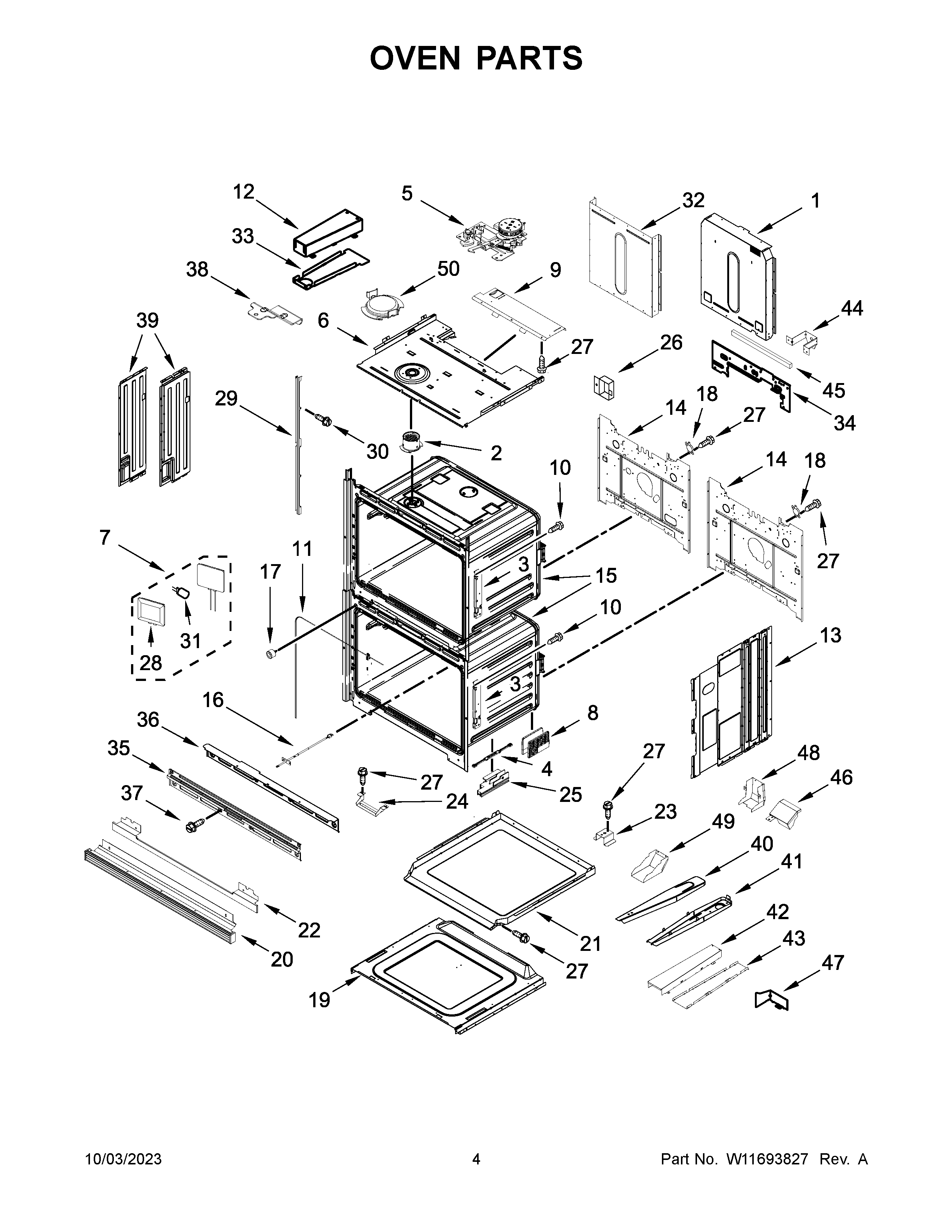

KODE900HBS21 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	INSULATION, CAVITY
NI	FOLLOWING PARTS NOT ILLUSTRATED
1	W11165250 Whirlpool Rear Cover
2	W11240525 Whirlpool Vent Tube
3	W11712405 Whirlpool Receiver Hinge
3A	W11712406 Whirlpool Receiver Hinge
4	W11598152 Whirlpool Spacer
5	W11686858 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11292252 Whirlpool Oven Light
8	W11598170 Whirlpool Level Foot
9	W10904163 Whirlpool Vent Deflector
10	WPW10254050 Whirlpool Screw
11	W11692454 Whirlpool Gasket
12	COVER, UPPER BACK EXHAUST
13	W11165274 Whirlpool Side Panel
14A	BACK, CHASSIS
14	BACK, CHASSIS
15	LINER, OVEN (NOT SERVICEABLE)
16	W11598120 Whirlpool Thermostat
17	W11598125 Whirlpool Bumper
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	COVR-ACESS
20	W11369892 Whirlpool Vent
20A	ASSEMBLY, BOTTOM VENT (BLACK STAINLESS)
21	COVR-ACESS
22	W11598135 Whirlpool Trim
23	SUPPORT, AIR CHANNEL
24	SPACER, CHASSIS BOTTOM DUCT
25A	W11598168 Whirlpool Leveling Foot
25	W11598169 Whirlpool Foot Level Assembly
26	8285593 Whirlpool Oven Wire Cover
27	SCREW
28	WPW10519866 Whirlpool Light
29	W11235460 Whirlpool Mounting Rail
29A	W11235461 Whirlpool Rail Mounting
30	W11602623 Whirlpool Screw
31	WPW10472384 Whirlpool Light Bulb
32	W11134657 Whirlpool Rear Cover
33	BASE, UPPER BACK EXHAUST
34	BRACKET, U-SHAPE CHIMNEY
35	VENT, CENTER 30"
36	W11715951 Whirlpool Vent Trim
37	WPY706189 Whirlpool Stove Screw
38	BRACKET, TOP FRONT
39	W11598150 Whirlpool Side Cover
39A	W11598151 Whirlpool Side Cover
40	COVER, TOP BACK EXHAUST
41	BASE, TOP BACK EXHAUST
42	COVER, LOWER BACK EXHAUST
43	BASE, LOWER BACK EXHAUST
44	HAT BRACKET, VENT
45	FOAM, U-BRACKET
46	CAP, BACK UPPER EXHAUST
47	DEFLECTOR, DBL
48	WPL W11256429
49	DEFLECTOR, LOWER BACK EXHAUST
50	WPL W11248347
