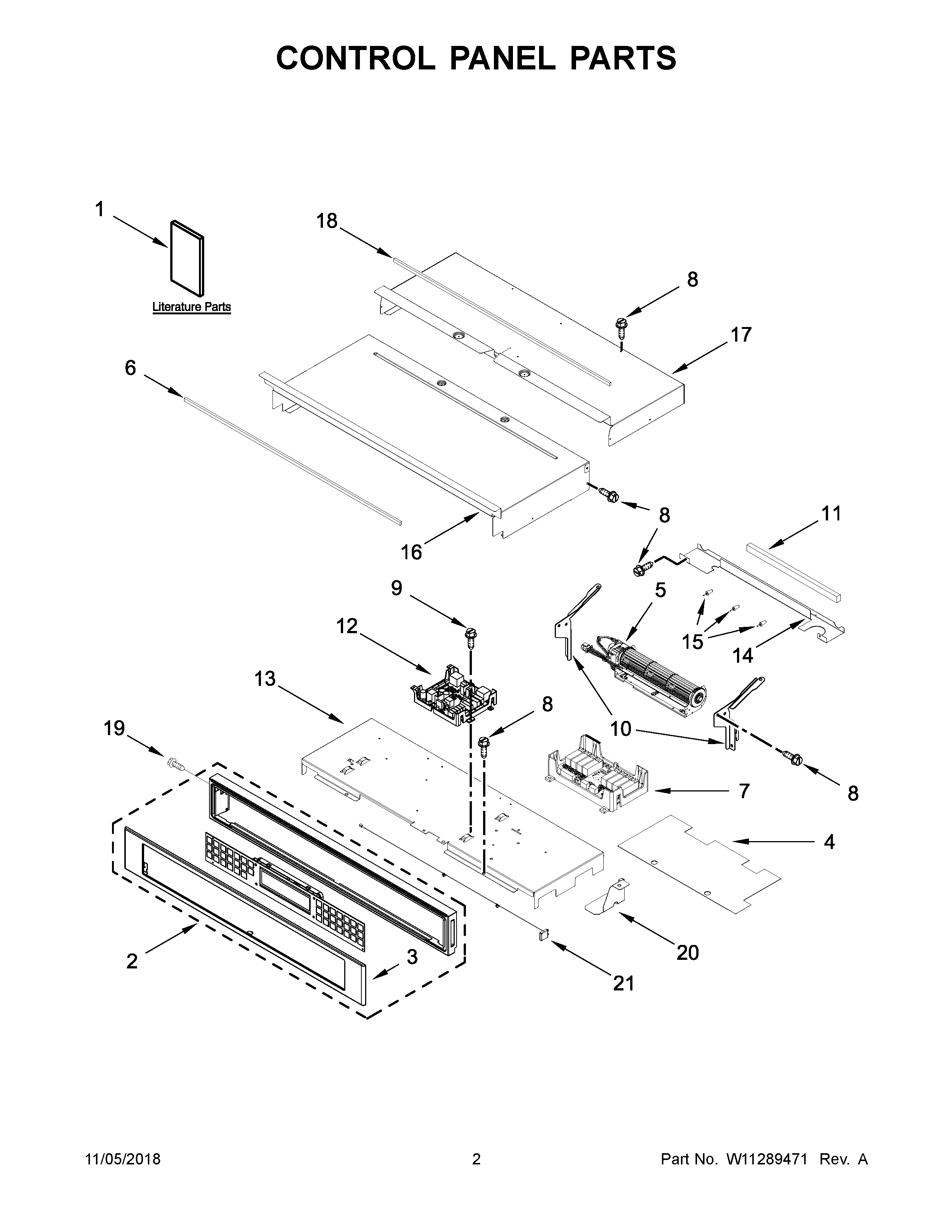

KODE900HSS00 02 – CONTROL PANEL PARTS
Written by
in
KODE900HSS00 02 – CONTROL PANEL PARTS
Products
Position
Product
NI
HARNESS, MAIN
NI
W11158088 Whirlpool Wire Harness
NI
W11233570 Whirlpool Wire Harness
NI
W10760039 Whirlpool Hardware
NI
W11219538 Whirlpool Wire Harness
NI
16515 Whirlpool Clip
NI
WPW10339879 Whirlpool Wire Tie
NI
W11699910 Whirlpool Wire Harness
NI
W10655464 Whirlpool Bracket
NI
W10487999 Whirlpool Clip
NI
4450800 Whirlpool Oven Screw
NI
4448664 Whirlpool Oven Mounting Bracket
NI
CABINET (NOT A SERVICEABLE PART)
1
GUIDE, USE & CARE
1C
GUIDE, INTERNET CONNECTIVITY
1A
INSTRUCTIONS, INSTALLATION
1B
DIAGRAM, WIRING
2
W11399172 Whirlpool Console + Core
2A
W11399171 Whirlpool Console + Core
3
W10588740 Whirlpool Control Panel
3A
W10776407 Whirlpool Control Panel
4
PAD, INSULATOR
5
W11248652 Whirlpool Blower
6
GASKET, RUBBER
7
W11294389-includeCORE Whirlpool W11294389 Washer Electronic Control Board + Core
8
SCREW
9
SCREW
10
W10655463 Whirlpool Bracket Mounting
10A
W10655462 Whirlpool Mounting Bracket
11
W10491987 Whirlpool Foam Seal
12
W11294388-includeCORE Whirlpool W11294388 Refrigerator Electronic Control Board
13
TRAY, ELECTRONIC
14
W10655465 Whirlpool Mounting Bracket
15
W10351295 Whirlpool Bumper Assembly
16
CHASSIS, COVER TOP FRONT 30"
17
W10904156 Whirlpool Cabinet Top
18
W10728475 Whirlpool Foam Seal
19
SCREW
20
SUPPORT, ELECTRONIC TRAY
21
W11537624 Whirlpool Antenna Assembly
←
