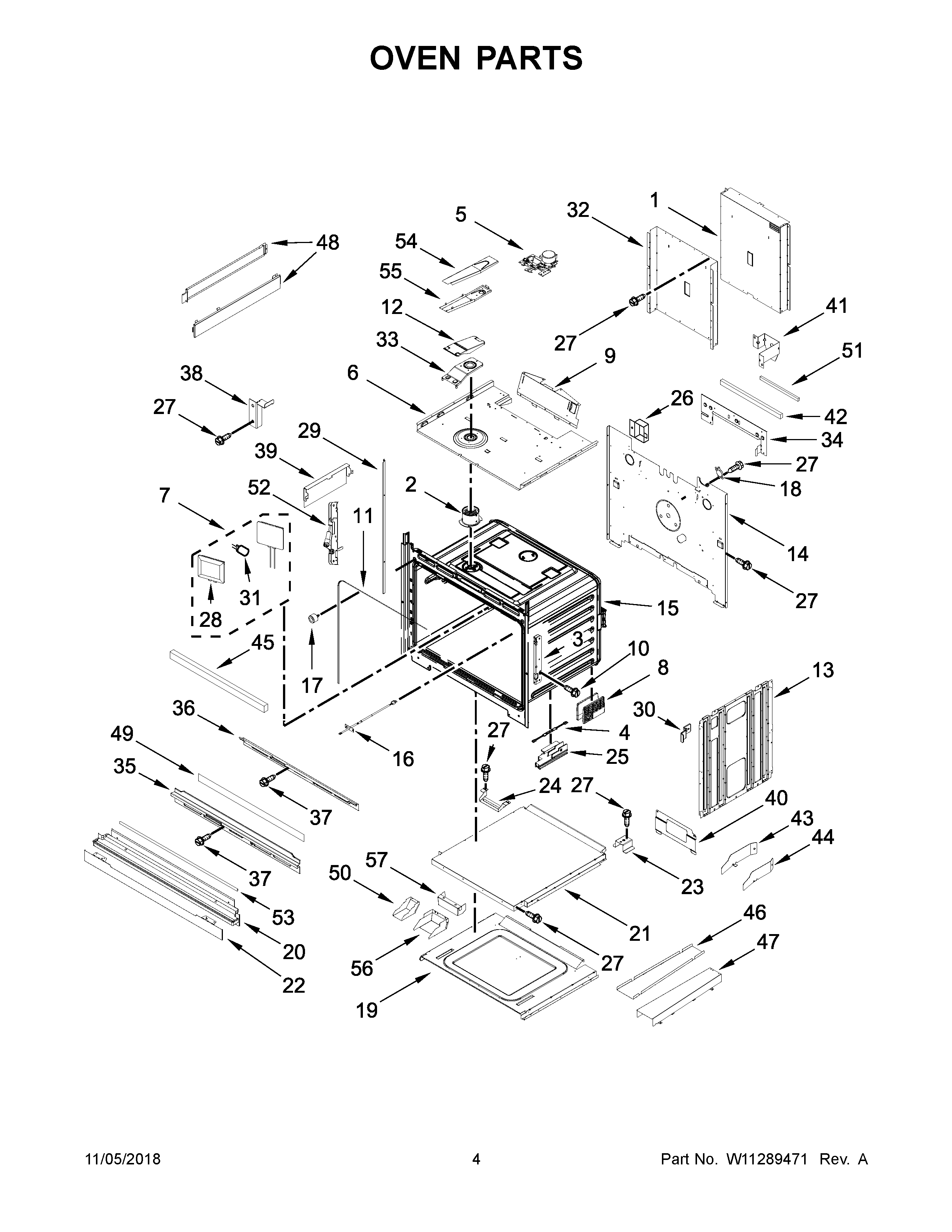

KODE900HSS00 03 – OVEN PARTS

KODE900HSS00 03 – OVEN PARTS

Written by

in

KODE900HSS00 03 – OVEN PARTS

Products

PositionProduct
NIW11688731 Whirlpool Insulation
NIW11685004 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIW11292324 Whirlpool Insulation
1W10318196 Whirlpool BA Chassis
2W11240525 Whirlpool Vent Tube
3W11613828 Whirlpool Hinge Receptacle
4W11292538 Whirlpool Spacer
5W10883049 Whirlpool Door Latch
6TOP, CHASSIS
7W11292252 Whirlpool Oven Light
8FOOT, BASE
9W10904163 Whirlpool Vent Deflector
10WPW10254050 Whirlpool Screw
11GASKET
12W10616810 Whirlpool Exhaust Cover
13PANEL-SIDE
13ASIDE, CHASSIS
14BACK, CHASSIS
14ABACK, CHASSIS (LOWER)
16W11290976 Whirlpool Thermostat
17WPW10351278 Whirlpool Bumper
18WP4449751 Whirlpool Range Oven Thermostat Fix
19W11238787 Whirlpool Manifold Pipe
20AW11348370 Whirlpool Oven Vent
20W11348369 Whirlpool Oven Vent Assembly
21CHASSIS, BOTTOM DUCT
22WPW10327377 Whirlpool Trim Kit
22AWPW10351236 Whirlpool Trim
23W10213759 Whirlpool Support
24W10351308 Whirlpool Support Bracket
25W10848812 Whirlpool Level Foot
268285593 Whirlpool Oven Wire Cover
27SCREW
28WPW10519866 Whirlpool Light
29AW10536161 Whirlpool Oven Trim Cover Kit
30SPACERS, FRONT
31WPW10472384 Whirlpool Light Bulb
32DUCT, CHASSIS BACK (LOWER)
33W10616809 Whirlpool Vent Tube
34BRACKET, U-SHAPE
35W11294400 Whirlpool Oven Vent
36VENT, TOP 30“
37W11193480 Whirlpool Screw
38W10863234 Whirlpool Bracket
38AW10863233 Whirlpool Bracket
39SHIELD, SLOW CLOSE HINGE
40SPACER, CENTER
41HAT BRACKET, REAR
42GASKET, FOAM (243MM)
43ANGLE, BOTTOM DUCT CORNER (LH)
44ANGLE, BOTTOM DUCT CORNER (RH)
45GASKET, RUBBER (652MM)
46FLUE, BOTTOM
47FLUE, TOP
48WPL W11225775
48AWPL W11232071
49WPL W11218824
50DEFLECTOR, BACK DUCT
51WPL W11224619
52W11045086 Whirlpool Hinge Receptacle
53WPY706189 Whirlpool Stove Screw
54COVER, VENT EXHAUST
55BASE, VENT EXHAUST
56WPL W11096841
57WPL W11096842
