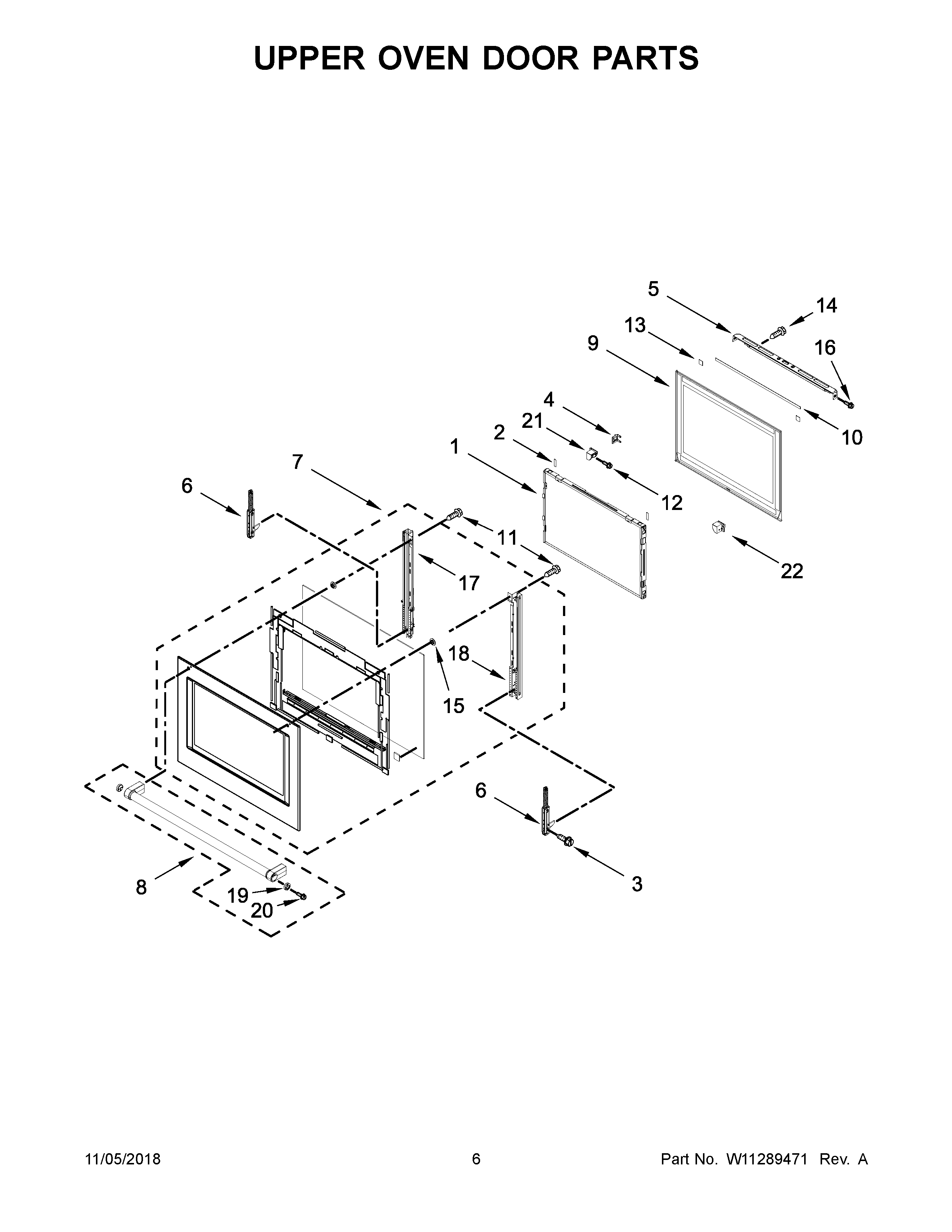

KODE900HSS00 04 – UPPER OVEN DOOR PARTS

KODE900HSS00 04 – UPPER OVEN DOOR PARTS

Written by

in

KODE900HSS00 04 – UPPER OVEN DOOR PARTS

Products

PositionProduct
1W11295339 Whirlpool Door Glass
2W10840861 Whirlpool Spacer
3WP3196183 Whirlpool Screw
4WPW10549747 Whirlpool Clip
5W11280091 Whirlpool Vent Trim
6W11295341 Whirlpool Hinge Receptacle
7W11294840 Whirlpool Door Glass
7AW11294839 Whirlpool Door Glass
8W11518518 Whirlpool Door Handle
9W11295340 Whirlpool Door Glass
10W11082539 Whirlpool Vent Gasket
11W10831019 Whirlpool Stove Door Screw
12SCREW
13WPW10517428 Whirlpool Spacer
14SCREW
15W11676355 Whirlpool Washer
16W11690596 Whirlpool Screw
17W11355410 Whirlpool Support Bracket Assembly
18W11355411 Whirlpool Support Bracket
19W10846207 Whirlpool KA Handle MEDALLIONS-RED
20W10920281 Whirlpool Screw
21BRACKET, DOOR (LEFT)
22WPW10581826 Whirlpool Support Bracket
