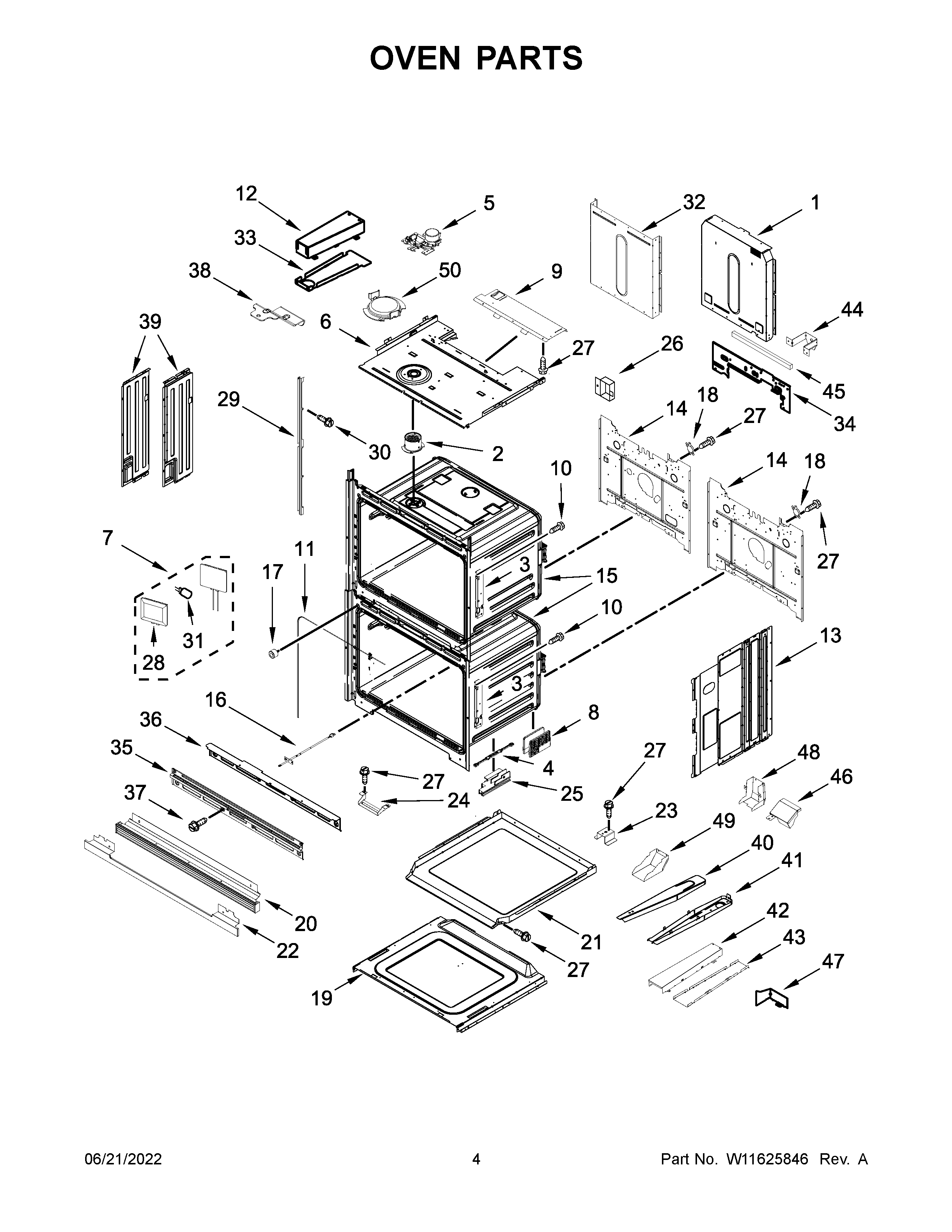

KODE900HSS20 03 – OVEN PARTS

Products

PositionProduct
NIINSULATION, CAVITY
NICABINET (NOT A SERVICEABLE PART)
NIINSULATION, WRAP
1W11165250 Whirlpool Rear Cover
2W11240525 Whirlpool Vent Tube
3W11712405 Whirlpool Receiver Hinge
3AW11712406 Whirlpool Receiver Hinge
4W11598152 Whirlpool Spacer
5W11686858 Whirlpool Door Latch
6TOP, CHASSIS
7W11292252 Whirlpool Oven Light
8W11598170 Whirlpool Level Foot
9W10904163 Whirlpool Vent Deflector
10WPW10254050 Whirlpool Screw
11W11676903 Whirlpool Gasket
12COVER, UPPER BACK EXHAUST
13W11165274 Whirlpool Side Panel
14ABACK, CHASSIS
14BACK, CHASSIS
16W11598120 Whirlpool Thermostat
17W11598125 Whirlpool Bumper
18WP4449751 Whirlpool Range Oven Thermostat Fix
19COVR-ACESS
20W11369892 Whirlpool Vent
20AW11369884 Whirlpool Oven Heat Deflector
21COVR-ACESS
22W11598135 Whirlpool Trim
23SUPPORT, AIR CHANNEL
24SPACER, CHASSIS BOTTOM DUCT
25AW11598168 Whirlpool Leveling Foot
25W11598169 Whirlpool Foot Level Assembly
268285593 Whirlpool Oven Wire Cover
27SCREW
28WPW10519866 Whirlpool Light
29W11235460 Whirlpool Mounting Rail
29AW11235461 Whirlpool Rail Mounting
30W11602623 Whirlpool Screw
31WPW10472384 Whirlpool Light Bulb
32W11134657 Whirlpool Rear Cover
33BASE, UPPER BACK EXHAUST
34BRACKET, U-SHAPE CHIMNEY
35VENT, CENTER 30"
36W11715951 Whirlpool Vent Trim
37WPY706189 Whirlpool Stove Screw
38BRACKET, TOP FRONT
39W11598150 Whirlpool Side Cover
39AW11598151 Whirlpool Side Cover
40COVER, TOP BACK EXHAUST
41BASE, TOP BACK EXHAUST
42COVER, LOWER BACK EXHAUST
43BASE, LOWER BACK EXHAUST
44HAT BRACKET, VENT
45FOAM, U-BRACKET
46CAP, BACK UPPER EXHAUST
47DEFLECTOR, DBL
48WPL W11256429
49DEFLECTOR, LOWER BACK EXHAUST
50WPL W11248347
