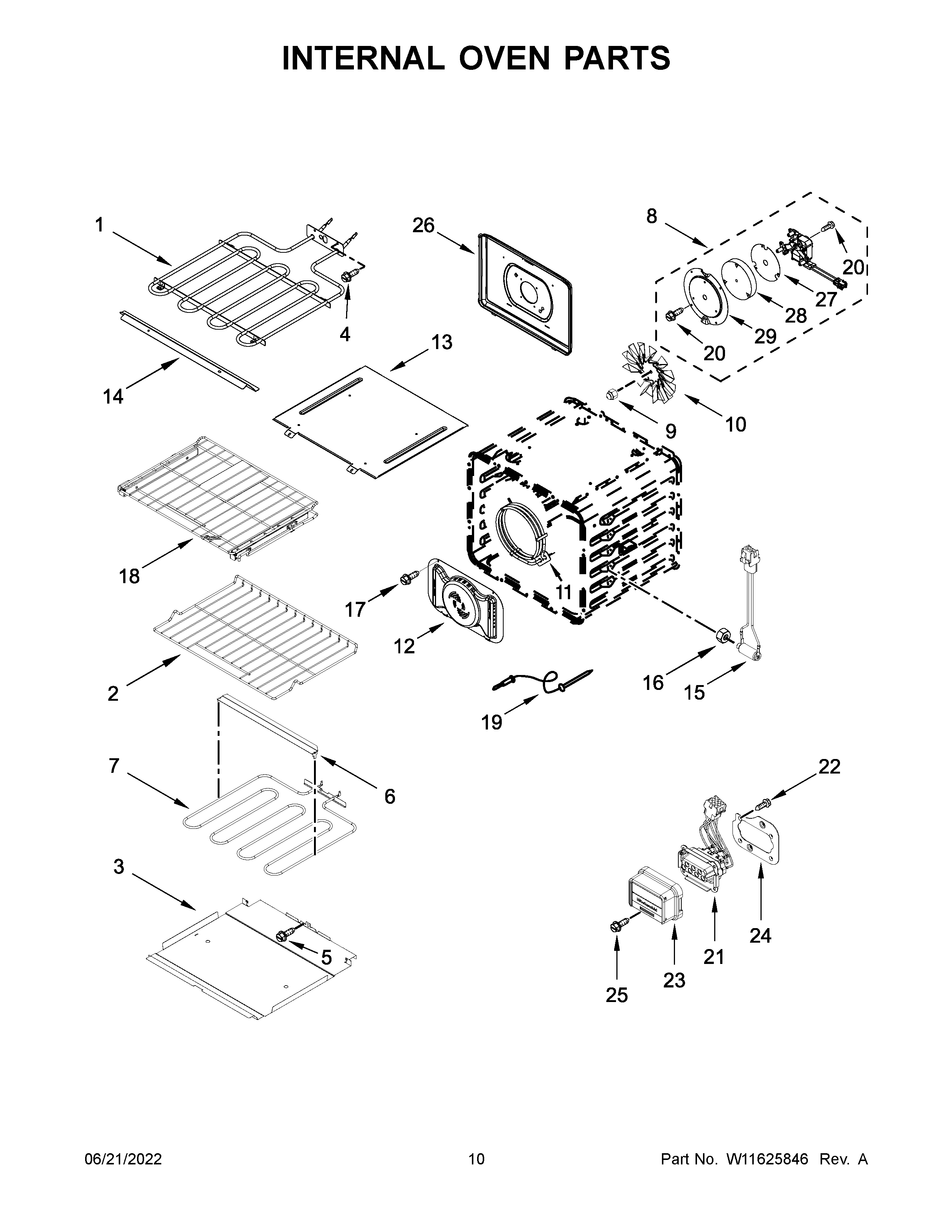

KODE900HSS20 06 – INTERNAL OVEN PARTS

Products

Position	Product
1	W11598122 Whirlpool Broil Element
2	WPW10554526 Whirlpool Oven Rack
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	CONVECT MOTOR ASSEMBLY
9	W11548755 Whirlpool Nut
10	W11548753 Whirlpool Convection Fan
11	W11678579 Whirlpool Element
12	W11234763 Whirlpool Convection Baffle
13	TOP-CABNT
14	SHIELD-HT
15	W11252826 Whirlpool Probe Jack
16	W11231343 Whirlpool Lock Nut
17	SCREW
18	W11718046 Whirlpool Rack
19	WP9755542 Whirlpool Oven Meat Probe
20	W10850807 Whirlpool Screw
21	W11291121 Whirlpool Male Plug
22	WPY706189 Whirlpool Stove Screw
23	COVER, CONNECTOR
24	PLATE, CAVITY BACKER
25	SCREW
26	BACK, CAVITY BAFFLE BOWTIE
27	PLATE, CONVECT MOTOR
28	INSULATION, CONVECT MOTOR
29	COVER, CONVECT PLATE
