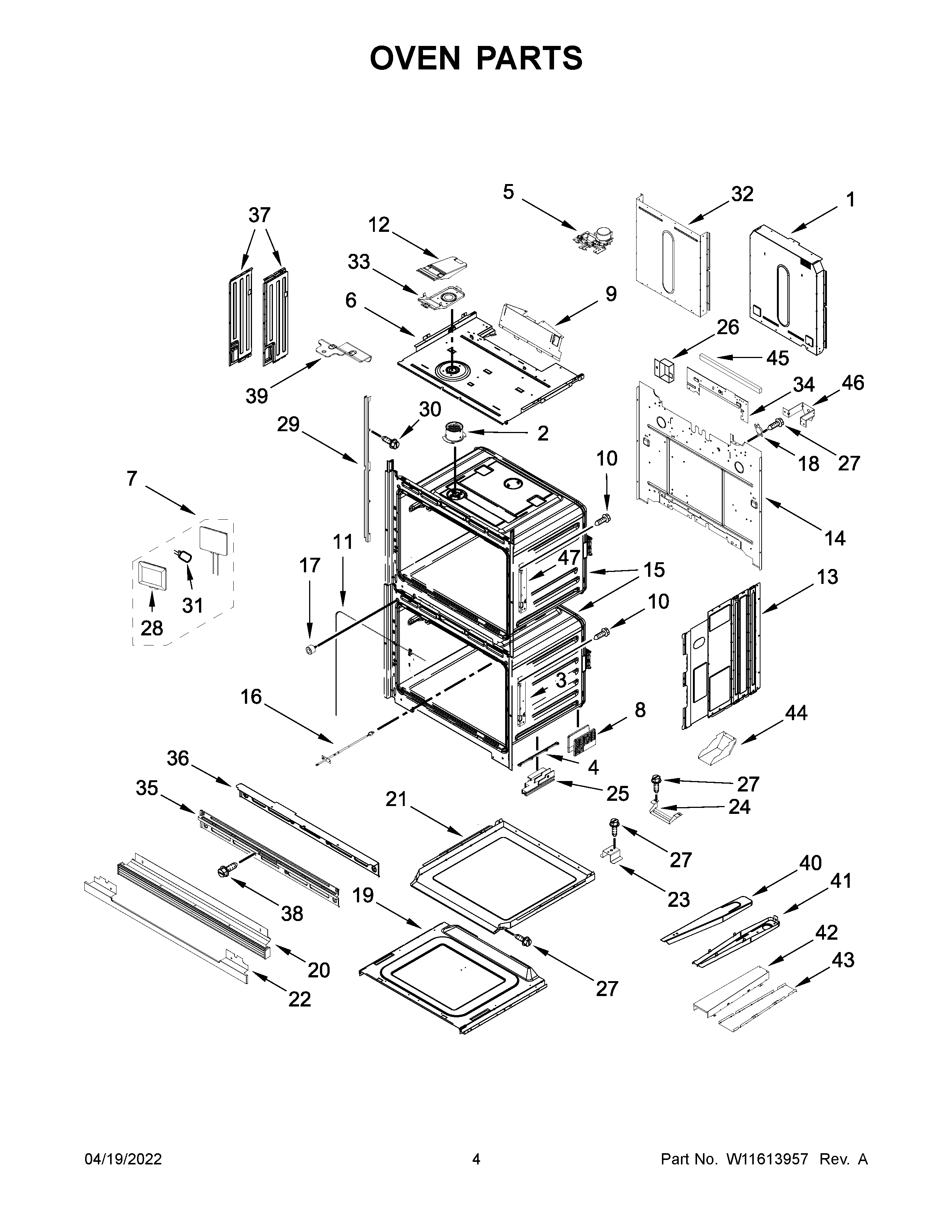

KODT100ESS20 03 – OVEN PARTS

KODT100ESS20 03 – OVEN PARTS

Written by

in

KODT100ESS20 03 – OVEN PARTS

Products

PositionProduct
NIINSULATION, CAVITY
NIINSULATION, WRAP
NICABINET (NOT A SERVICEABLE PART)
1W11165250 Whirlpool Rear Cover
2W11240525 Whirlpool Vent Tube
3AW11712406 Whirlpool Receiver Hinge
3W11712405 Whirlpool Receiver Hinge
4W11598116 Whirlpool Spacer
5W11686858 Whirlpool Door Latch
6TOP, CHASSIS
7W11292252 Whirlpool Oven Light
8W11598170 Whirlpool Level Foot
9W10904163 Whirlpool Vent Deflector
10WPW10254050 Whirlpool Screw
11W11676903 Whirlpool Gasket
12COVER, VENT EXHAUST
13W11165274 Whirlpool Side Panel
14BACK, CHASSIS (LOWER)
16W11598120 Whirlpool Thermostat
17W11598125 Whirlpool Bumper
18WP4449751 Whirlpool Range Oven Thermostat Fix
19COVR-ACESS
20W11598202 Whirlpool Oven Vent
21COVR-ACESS
22W11598135 Whirlpool Trim
23SUPPORT, AIR CHANNEL
24SPACER, CHASSIS BOTTOM DUCT
25W11598169 Whirlpool Foot Level Assembly
25AW11598168 Whirlpool Leveling Foot
268285593 Whirlpool Oven Wire Cover
27SCREW
28WPW10519866 Whirlpool Light
29AW11235461 Whirlpool Rail Mounting
29W11235460 Whirlpool Mounting Rail
30W11602623 Whirlpool Screw
31WPW10472384 Whirlpool Light Bulb
32W11134657 Whirlpool Rear Cover
33BASE, VENT EXHAUST
34BRACKET, U-SHAPE
35W11235482 Whirlpool Exhaust Vent
36W11715951 Whirlpool Vent Trim
37W11598150 Whirlpool Side Cover
37AW11598151 Whirlpool Side Cover
38WPY706189 Whirlpool Stove Screw
39BRACKET, TOP FRONT
40COVER, TOP BACK EXHAUST
41BASE, TOP BACK EXHAUST
42COVER, LOWER BACK EXHAUST
43BASE, LOWER BACK EXHAUST
44DEFLECTOR, LOWER BACK EXHAUST
45FOAM, U-BRACKET
46HAT BRACKET, VENT
47HINGE-RECV
