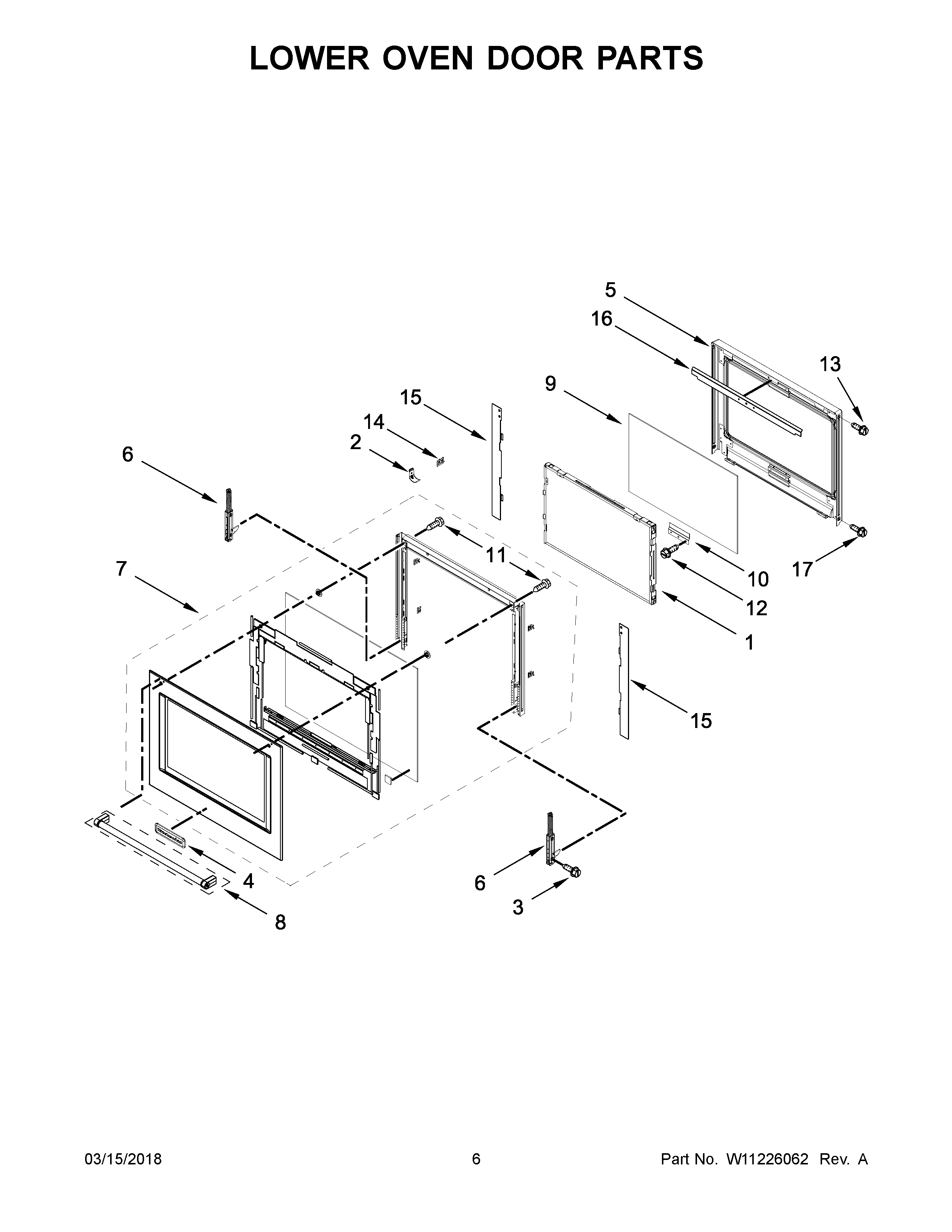

KODT107ESS02 04 – LOWER OVEN DOOR PARTS

KODT107ESS02 04 – LOWER OVEN DOOR PARTS

Written by

in

KODT107ESS02 04 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1WPW10347597 Whirlpool Door Glass
2W10812024 Whirlpool Glass Bracket
3WP3196183 Whirlpool Screw
4W10839793 Whirlpool Refrigerator Nameplate
5WPW10320793 Whirlpool Glass Frame
6W11642291 Whirlpool Door Hinge
7W10774423 Whirlpool Door Glass
8W11525064 Whirlpool Door Handle
9W10829001 Whirlpool Oven Wall Inner Door Glass
10W10853628 Whirlpool Oven Range Glass Bracket
11W10831019 Whirlpool Stove Door Screw
12SCREW
13SCREW
14W11025615 Whirlpool Glass Bracket
15W10687815 Whirlpool Glass Bracket
15AW10687814 Whirlpool Glass Bracket
16W10669415 Whirlpool Glass Bracket
17SCREW (BLACK)
