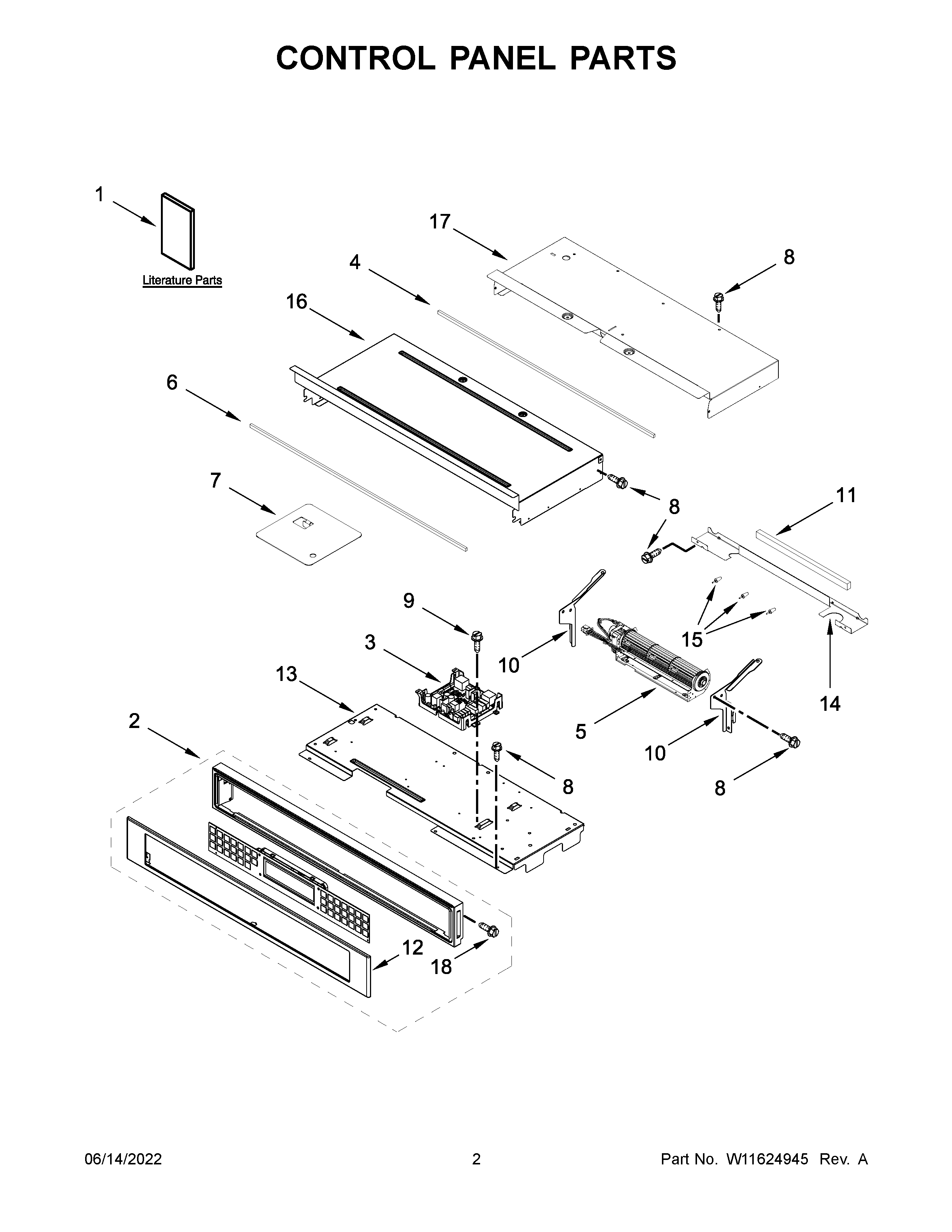

KODT107ESS20 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11727826 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11699910 Whirlpool Wire Harness
NI	STRAP, LEAD GROUND
NI	16515 Whirlpool Clip
NI	W11602626 Whirlpool Oven Microwave Hardware
NI	HARNESS, MAIN
NI	HARNESS, SIGNAL
NI	W10655464 Whirlpool Bracket
1	OWNER'S MANUAL
1A	QUICK START GUIDE
1B	TECH SHEET
2	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
3	W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
3A	W11598200-includeCORE Whirlpool W11598200 Washer Electronic Control Board + Core
4	W10728475 Whirlpool Foam Seal
5	BLOWER
6	GASKET, RUBBER (652MM)
7	COVER, WIFI
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	W10588741 Whirlpool Control Panel
13	TRAY, ELECTRONIC
14	DIVIDER, CHASSIS BACK
15	W10351295 Whirlpool Bumper Assembly
16	COVER, TOP FRONT 27 IN CHASSIS
17	COVER, TOP BACK 27 IN CHASSIS
18	SCREW (BLACK)
