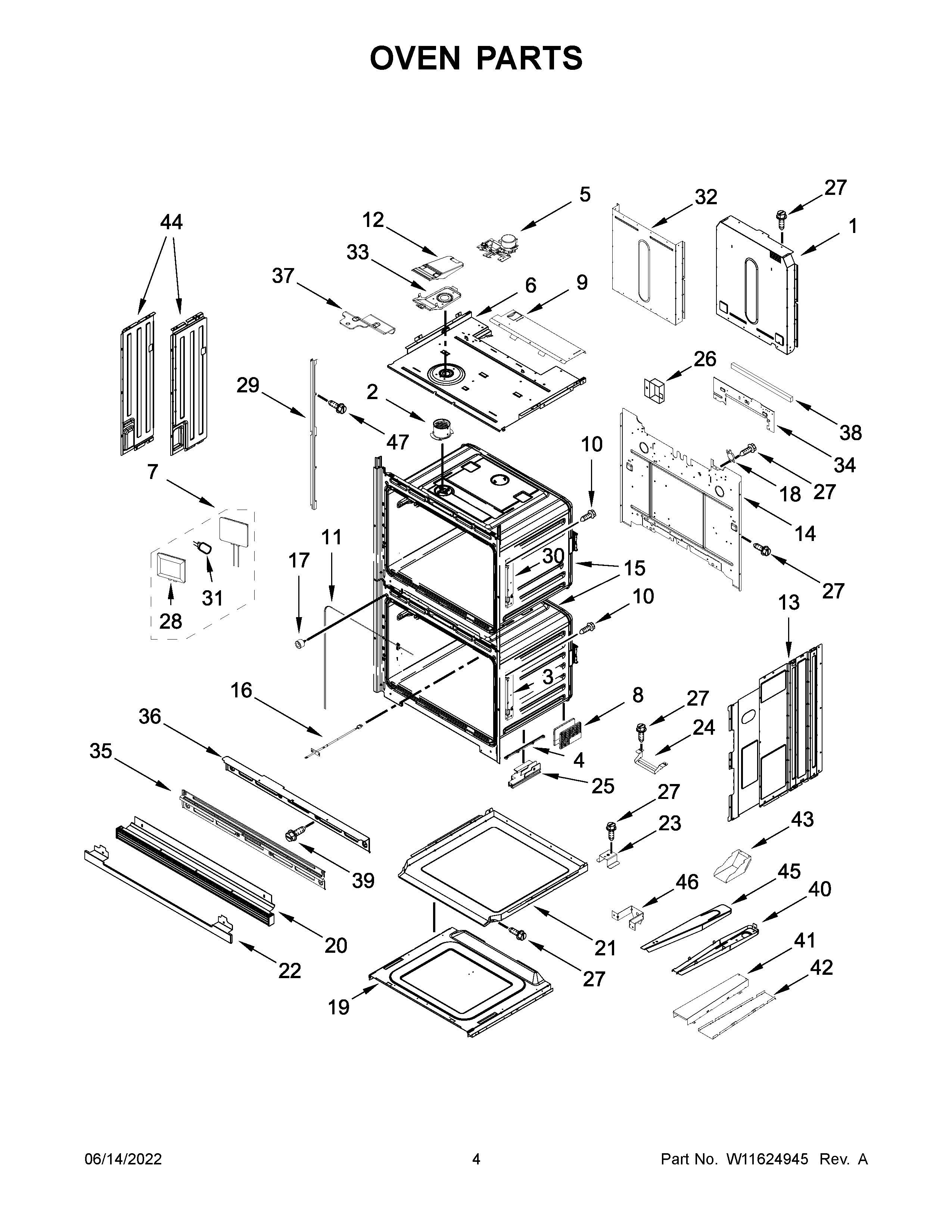

KODT107ESS20 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	CABINET (NOT A SERVICEABLE PART)
NI	INSULATION, BACK
1	W11165250 Whirlpool Rear Cover
2	W11240525 Whirlpool Vent Tube
3A	W11712406 Whirlpool Receiver Hinge
3	W11712405 Whirlpool Receiver Hinge
4	W11598116 Whirlpool Spacer
5	W11686858 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11292252 Whirlpool Oven Light
8	W11598170 Whirlpool Level Foot
9	W10904163 Whirlpool Vent Deflector
10	WPW10254050 Whirlpool Screw
11	GASKET, CAVITY
12	COVER, VENT EXHAUST
13	W11165274 Whirlpool Side Panel
14	BACK, CHASSIS
16	W11598120 Whirlpool Thermostat
17	W11598125 Whirlpool Bumper
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	BASE, CHASSIS
20	W11598189 Whirlpool Vent
21	COVR-ACESS
22	W11712432 Whirlpool Trim Assembly
23	SUPPORT, AIR CHANNEL
24	SPACER, CHASSIS BOTTOM DUCT
25A	W11598168 Whirlpool Leveling Foot
25	W11598169 Whirlpool Foot Level Assembly
26	8285593 Whirlpool Oven Wire Cover
27	SCREW
28	WPW10519866 Whirlpool Light
29	W11235460 Whirlpool Mounting Rail
29A	W11235461 Whirlpool Rail Mounting
30	HINGE-RECV
31	WPW10472384 Whirlpool Light Bulb
32	W11134657 Whirlpool Rear Cover
33	BASE, VENT EXHAUST
34	BRACKET, U-SHAPE
35	W11235483 Whirlpool Exhaust Vent
36	W11334858 Whirlpool Vent Exhaust
37	BRACKET, TOP FRONT
38	FOAM, U-BRACKET
39	WPY706189 Whirlpool Stove Screw
40	BASE, TOP BACK EXHAUST
41	COVER, LOWER BACK EXHAUST
42	BASE, LOWER BACK EXHAUST
43	DEFLECTOR, LOWER BACK EXHAUST
44	W11598150 Whirlpool Side Cover
44A	W11598151 Whirlpool Side Cover
45	COVER, TOP BACK EXHAUST
46	HAT BRACKET, VENT
47	W11602623 Whirlpool Screw
