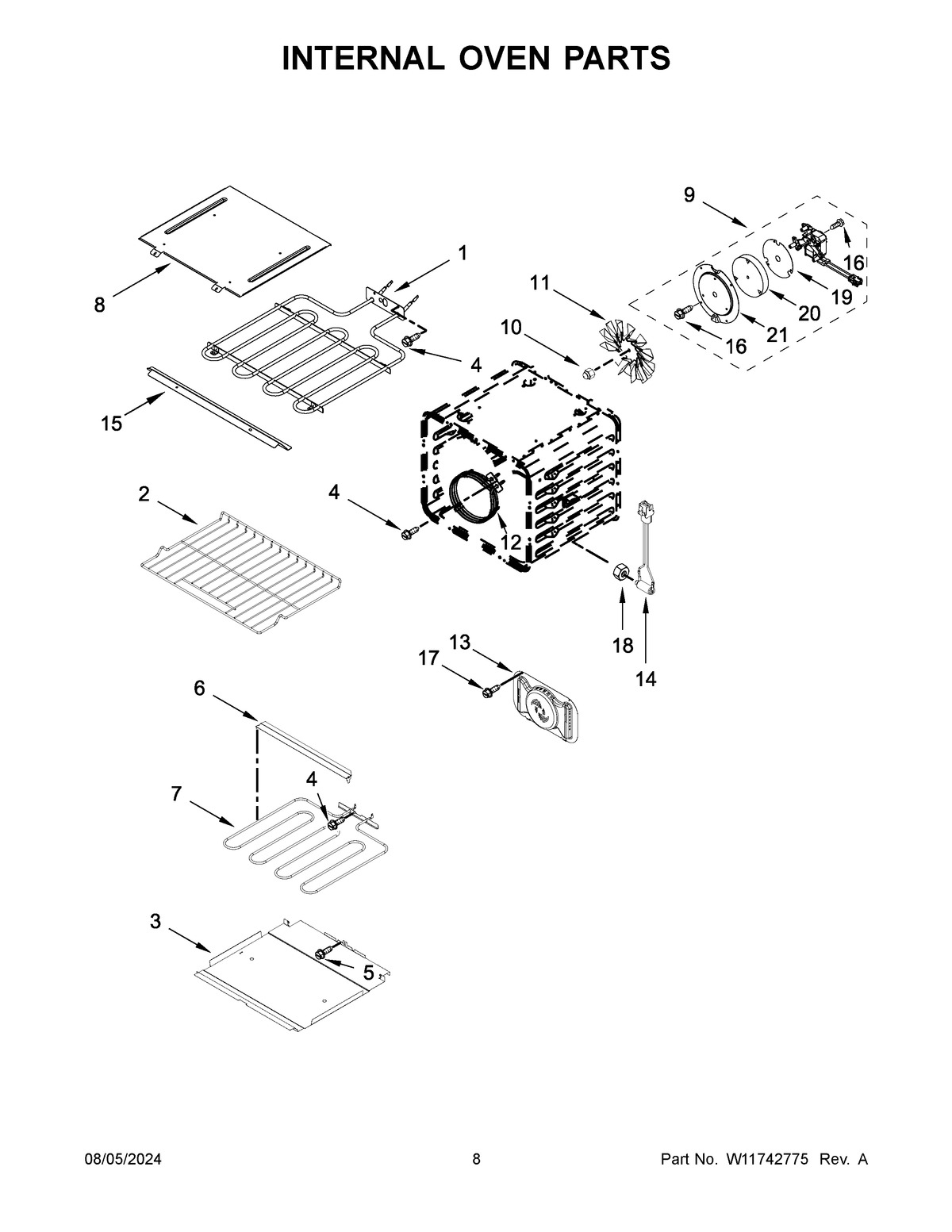

KOEC430RSS00 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	W11598122 Whirlpool Broil Element
2	WPW10554526 Whirlpool Oven Rack
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	TOP-CABNT
9	W11617227 Whirlpool Fan Motor
10	W11548755 Whirlpool Nut
11	W11548753 Whirlpool Convection Fan
12	W11678579 Whirlpool Element
13	W11234761 Whirlpool Baffle Convector
14	W11252826 Whirlpool Probe Jack
15	SHIELD-HT
16	W10850807 Whirlpool Screw
17	WP74003976 Whirlpool Screw
18	W11231343 Whirlpool Lock Nut
19	PLATE, CONVECT MOTOR
20	INSULATION, CONVECT MOTOR
21	COVER, CONVECT PLATE
