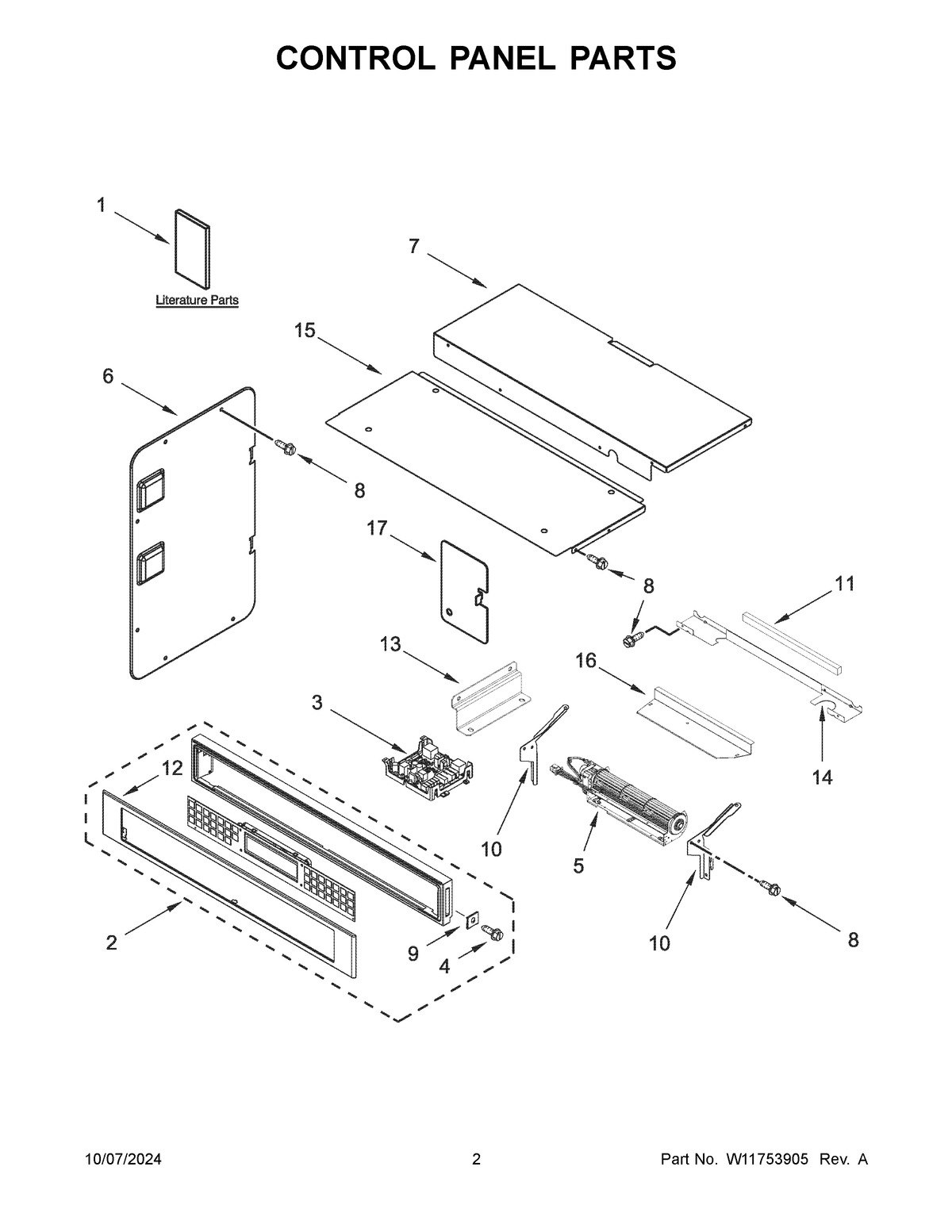

KOEC527PBS01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11226264 Whirlpool Wire Harness
NI	W11602626 Whirlpool Oven Microwave Hardware
NI	16515 Whirlpool Clip
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11727826 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	W11731943 Whirlpool Wire Harness
NI	W11229448 Whirlpool Wire Harness
NI	W11256627 Whirlpool Wire Harness
1B	TECH SHEET
1A	QUICK START GUIDE
1C	TECH MANUAL
1	OWNER'S MANUAL
2	W11666302 Whirlpool Console with Core
2A	W11666260 Whirlpool Console with Core
3	W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
4	SCREW (BLACK)
5	BLOWER
6	W10655467 Whirlpool Side Cover
7	CHASSIS, COVER TOP BACK 27 IN WIFI
8	SCREW
9	WP4450118 Whirlpool Nut
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12A	W10909789 Whirlpool Control Panel
12	W10588741 Whirlpool Control Panel
13	SIDE, BRACKET
14	DIVIDER, CHASSIS BACK
15	W10318159 Whirlpool Access Cover
16	W10681157 Whirlpool Fan Cover
17	COVER, WIFI
