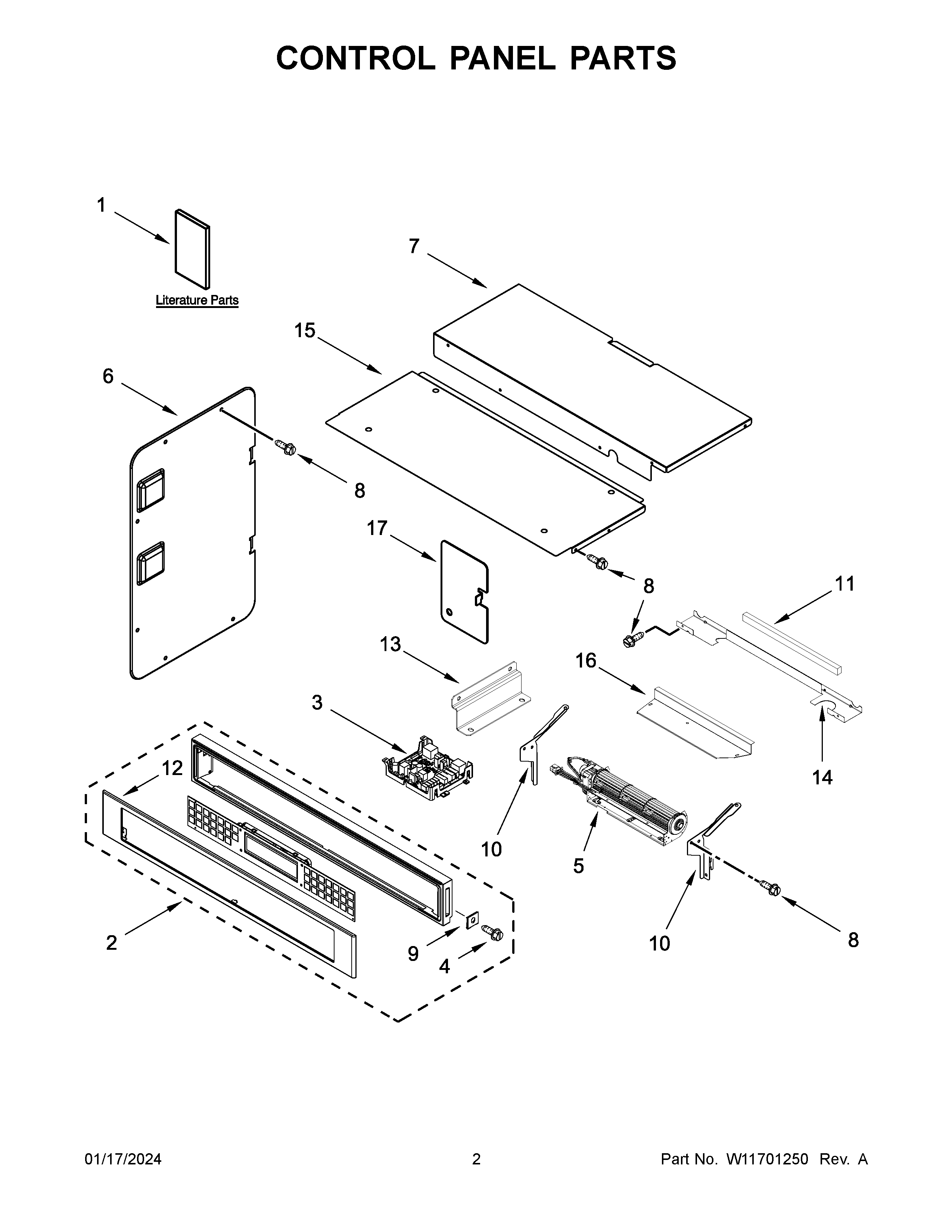

KOEC527PSS00 02 – CONTROL PANEL PARTS

KOEC527PSS00 02 – CONTROL PANEL PARTS

Written by

in

KOEC527PSS00 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11226264 Whirlpool Wire Harness
NI4448664 Whirlpool Oven Mounting Bracket
NIW11727826 Whirlpool Wire Harness
NIW11731943 Whirlpool Wire Harness
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11229448 Whirlpool Wire Harness
NIW11256627 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NIW11602626 Whirlpool Oven Microwave Hardware
NI4450800 Whirlpool Oven Screw
1OWNER'S MANUAL
1BTECH SHEET
1AQUICK START GUIDE
1CTECH MANUAL
2W11666302 Whirlpool Console with Core
3W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
4SCREW (BLACK)
5BLOWER
6W10655467 Whirlpool Side Cover
7CHASSIS, COVER TOP BACK 27 IN WIFI
8SCREW
9WP4450118 Whirlpool Nut
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12W10588741 Whirlpool Control Panel
13SIDE, BRACKET
14DIVIDER, CHASSIS BACK
15W10318159 Whirlpool Access Cover
16W10681157 Whirlpool Fan Cover
17COVER, WIFI
