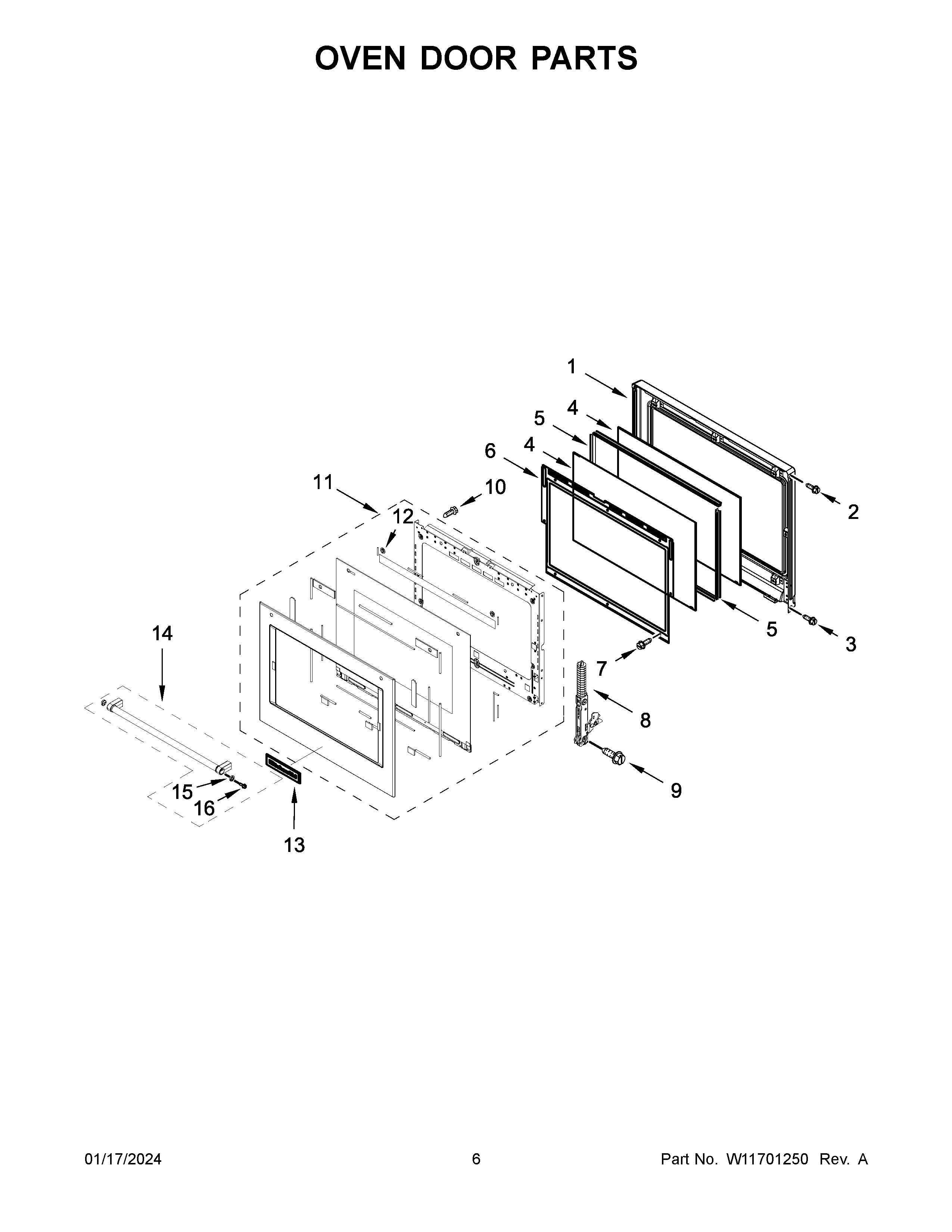

KOEC527PSS00 04 – OVEN DOOR PARTS

KOEC527PSS00 04 – OVEN DOOR PARTS

Written by

in

KOEC527PSS00 04 – OVEN DOOR PARTS

Products

PositionProduct
1W11598186 Whirlpool Glass Frame
2SCREW
3W11617225 Whirlpool Oven Screw
4WPW10284902 Whirlpool Door Glass
5W11598187 Whirlpool Bracket Assembly
6W11598188 Whirlpool Retainer
7SCREW
8AW11665209 Whirlpool Door Hinge
8W11665208 Whirlpool Door Hinge
9WP3196183 Whirlpool Screw
10W11602624 Whirlpool Oven Screw
11W11600239 Whirlpool Door Glass
12W11676355 Whirlpool Washer
13W10839793 Whirlpool Refrigerator Nameplate
14W11525064 Whirlpool Door Handle
15W10846207 Whirlpool KA Handle MEDALLIONS-RED
16W10920281 Whirlpool Screw
