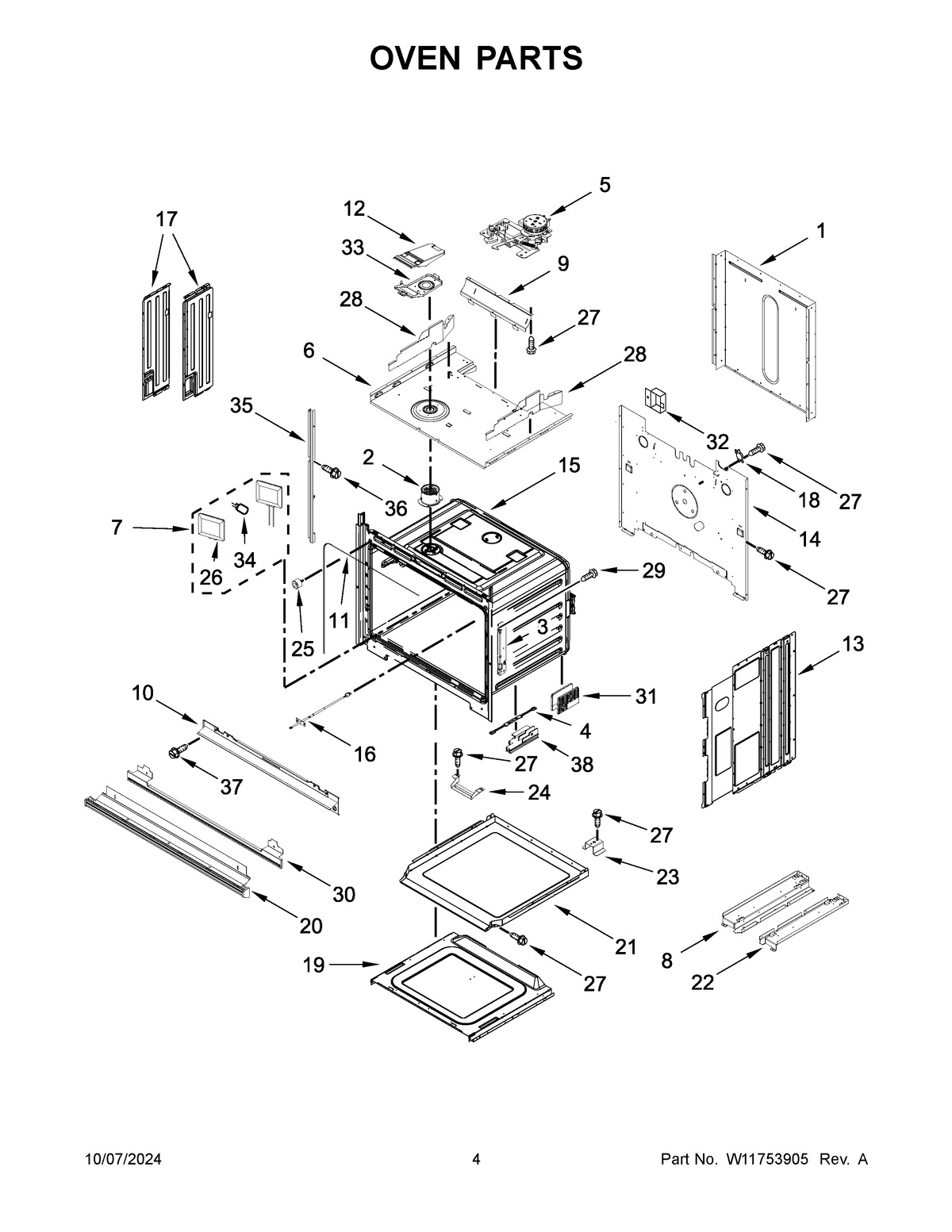

KOEC527PSS01 03 – OVEN PARTS

Products

PositionProduct
NIW11598168 Whirlpool Leveling Foot
NIFOLLOWING PARTS NOT ILLUSTRATED
NIINSULATION, WRAP
NIINSULATION, BACK
1W11134657 Whirlpool Rear Cover
2W11240525 Whirlpool Vent Tube
3AW11712406 Whirlpool Receiver Hinge
3W11712405 Whirlpool Receiver Hinge
4W11598152 Whirlpool Spacer
5W11686858 Whirlpool Door Latch
6TOP, CHASSIS
7W11292252 Whirlpool Oven Light
8W10283020 Whirlpool Support
9W10904163 Whirlpool Vent Deflector
10W11518348 Whirlpool Vent
11W11608109 Whirlpool Gasket
12COVER, VENT EXHAUST
13W11165274 Whirlpool Side Panel
14BACK, CHASSIS (NOT SERVICED)
15LINER, OVEN (NOT SERVICEABLE)
16W11598120 Whirlpool Thermostat
17AW11598151 Whirlpool Side Cover
17W11598150 Whirlpool Side Cover
18WP4449751 Whirlpool Range Oven Thermostat Fix
19BASE, CHASSIS
20AASSEMBLY, BOTTOM VENT (BLACK) (USED IN BLACK AND WHITE MODELS)
20VENT-OVEN
21COVR-ACESS
22W10283021 Whirlpool Support
23SUPPORT, AIR CHANNEL
24SPACER, BOTTOM CHASSIS DUCT
25W11598125 Whirlpool Bumper
26WPW10519866 Whirlpool Light
27SCREW
28ADEFLECTOR, CHASSIS (RIGHT)
28DEFLECTOR, CHASSIS (LEFT)
29WPW10254050 Whirlpool Screw
30TRIM, BOTTOM VENT (BLACK)
31W11598170 Whirlpool Level Foot
328285593 Whirlpool Oven Wire Cover
33BASE, VENT EXHAUST
34WPW10472384 Whirlpool Light Bulb
35TRIM
35ATRIM
36W11602623 Whirlpool Screw
37WPY706189 Whirlpool Stove Screw
38W11598169 Whirlpool Foot Level Assembly
