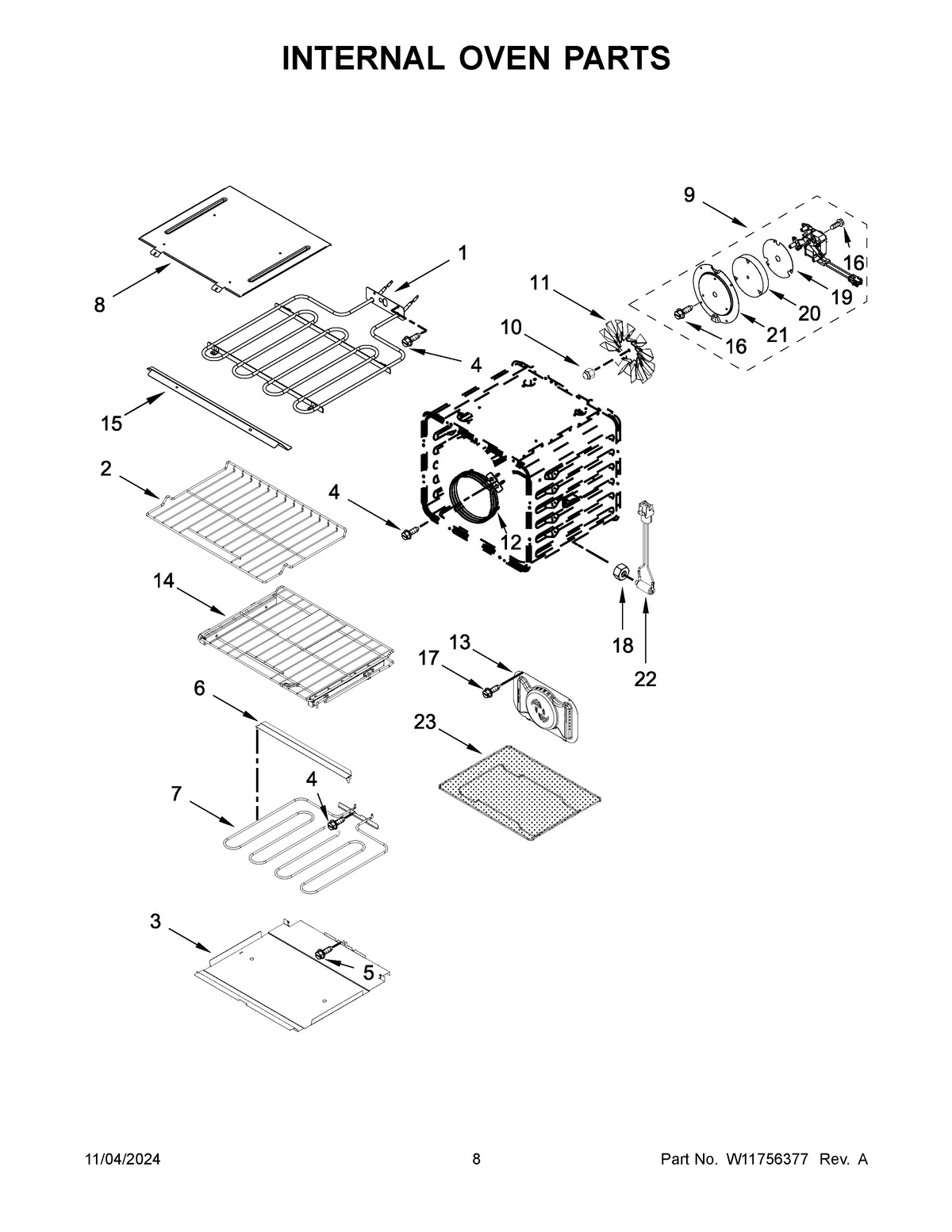

KOEC530PBS01 05 – INTERNAL OVEN PARTS

KOEC530PBS01 05 – INTERNAL OVEN PARTS

Written by

in

KOEC530PBS01 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1W11598122 Whirlpool Broil Element
2WPW10554526 Whirlpool Oven Rack
3W10318198 Whirlpool Bake Tray
4SCREW
5SCREW
6W10282957 Whirlpool Bracket Support
7BAKE ELEMENT
8TOP-CABNT
9W11617227 Whirlpool Fan Motor
10W11548755 Whirlpool Nut
11W11548753 Whirlpool Convection Fan
12W11678579 Whirlpool Element
13W11234763 Whirlpool Convection Baffle
14W11718046 Whirlpool Rack
15SHIELD-HT
16W10850807 Whirlpool Screw
17WP74003976 Whirlpool Screw
18W11231343 Whirlpool Lock Nut
19PLATE, CONVECT MOTOR
20INSULATION, CONVECT MOTOR
21COVER, CONVECT PLATE
22W11252826 Whirlpool Probe Jack
23W11692811 Whirlpool Fryer Basket
