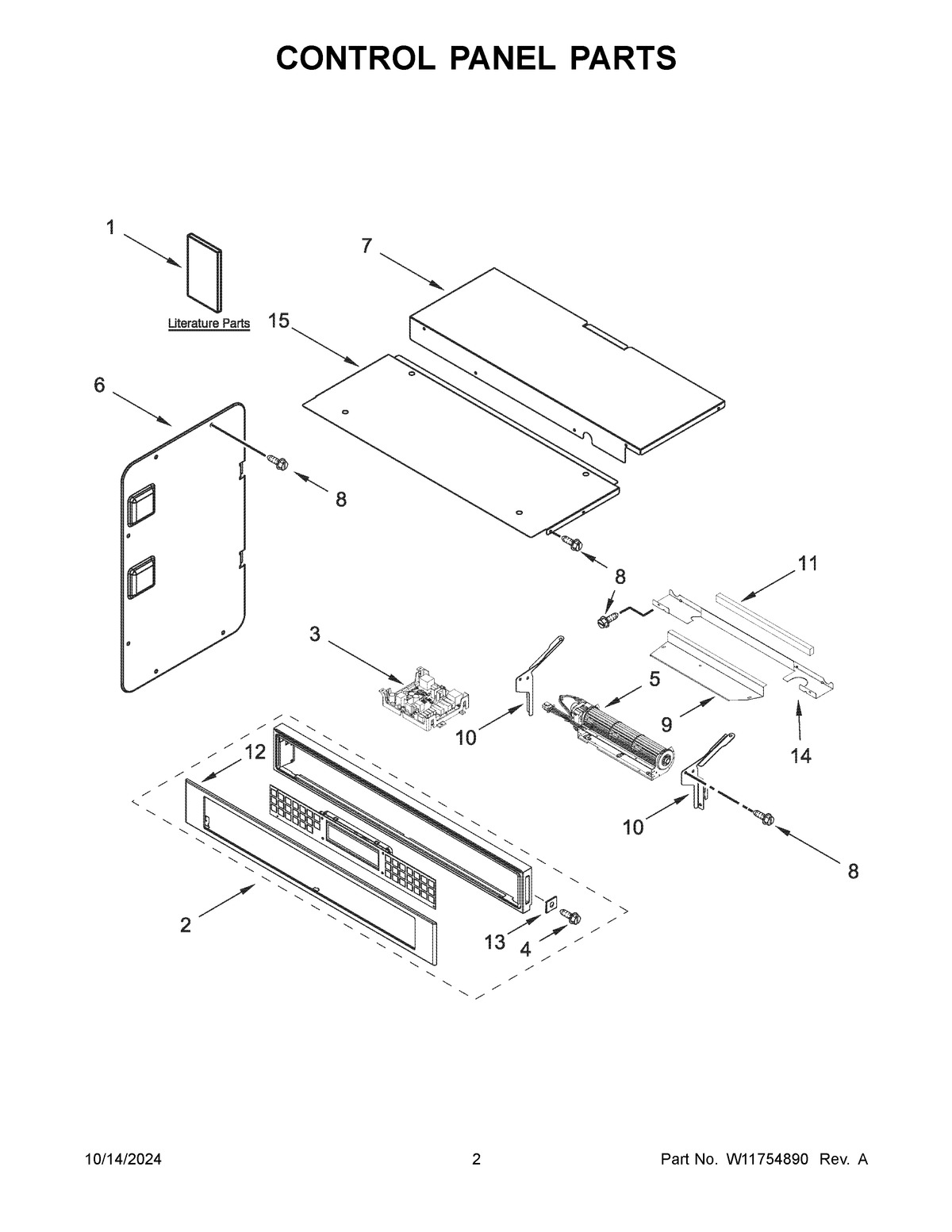

KOEC530PPS03 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11226264 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11727826 Whirlpool Wire Harness
NI	4448664 Whirlpool Oven Mounting Bracket
NI	WP3400015 Whirlpool Screw
NI	W11731943 Whirlpool Wire Harness
NI	W11229448 Whirlpool Wire Harness
NI	W11256627 Whirlpool Wire Harness
NI	W11602626 Whirlpool Oven Microwave Hardware
1C	TECH SHEET
1A	QUICK START GUIDE
1B	TECH MANUAL
1	OWNER'S MANUAL
2	CONTROL PANEL ASSEMBLY (INCLUDES OVERLAY) (STAINLESS)
3	W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
4	SCREW (BLACK)
5	BLOWER
6	W10655467 Whirlpool Side Cover
7	W10588732 Whirlpool Cover Access
8	SCREW
9	W10681157 Whirlpool Fan Cover
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	SKIN, CONTROL PANEL (STAINLESS)
13	WP4450118 Whirlpool Nut
14	DIVIDER, CHASSIS BACK
15	W10318158 Whirlpool Access Cover Assembly
