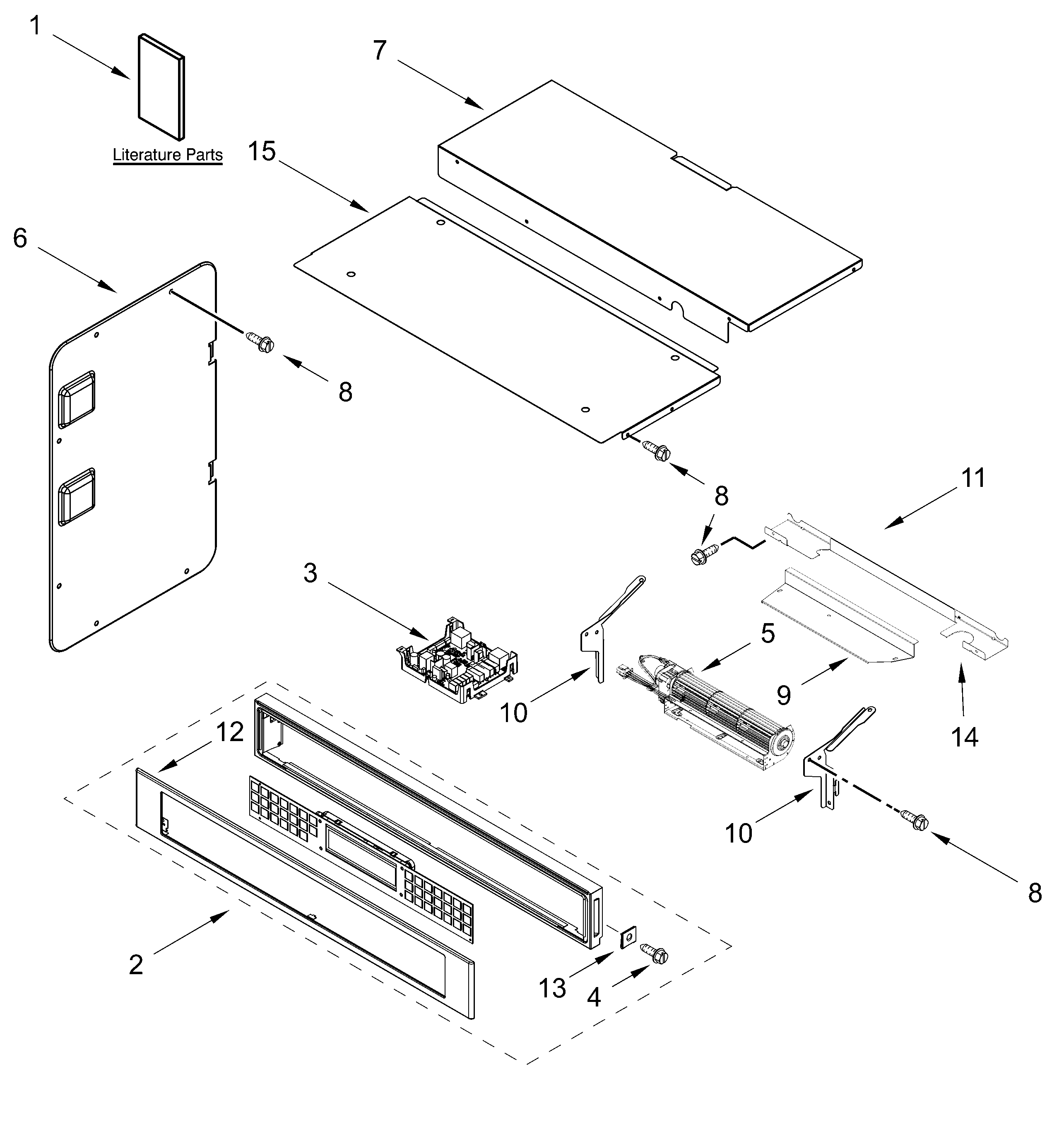

KOEC530PWH01 CONTROL PANEL PARTS

Products

Position	Product
	W11602626 Whirlpool Oven Microwave Hardware
	W11226264 Whirlpool Wire Harness
	OWNER'S MANUAL
	16515 Whirlpool Clip
	FOLLOWING PARTS NOT ILLUSTRATED
	W11727826 Whirlpool Wire Harness
	4448664 Whirlpool Oven Mounting Bracket
	WP3400015 Whirlpool Screw
	W11731943 Whirlpool Wire Harness
	TECH SHEET
	W10655462 Whirlpool Mounting Bracket
	W11229448 Whirlpool Wire Harness
	W11256627 Whirlpool Wire Harness
	QUICK START GUIDE
	TECH MANUAL
1	Literature Parts
2	W11666007 Whirlpool Console with Core
3	W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
4	SCREW (BLACK)
5	BLOWER
6	W10655467 Whirlpool Side Cover
7	W10588732 Whirlpool Cover Access
8	SCREW
9	W10681157 Whirlpool Fan Cover
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	PANL-CNTRL
13	WP4450118 Whirlpool Nut
14	DIVIDER, CHASSIS BACK
15	W10318158 Whirlpool Access Cover Assembly
