| SIDE, COMBO CHASSIS (RIGHT) |
| TRIM |
| FOLLOWING PARTS NOT ILLUSTRATED |
| DEFLECTOR, CHASSIS (RIGHT) |
| W11598168 Whirlpool Leveling Foot |
| INSULATION, WRAP |
| INSULATION, CAVITY |
| W11598151 Whirlpool Side Cover |

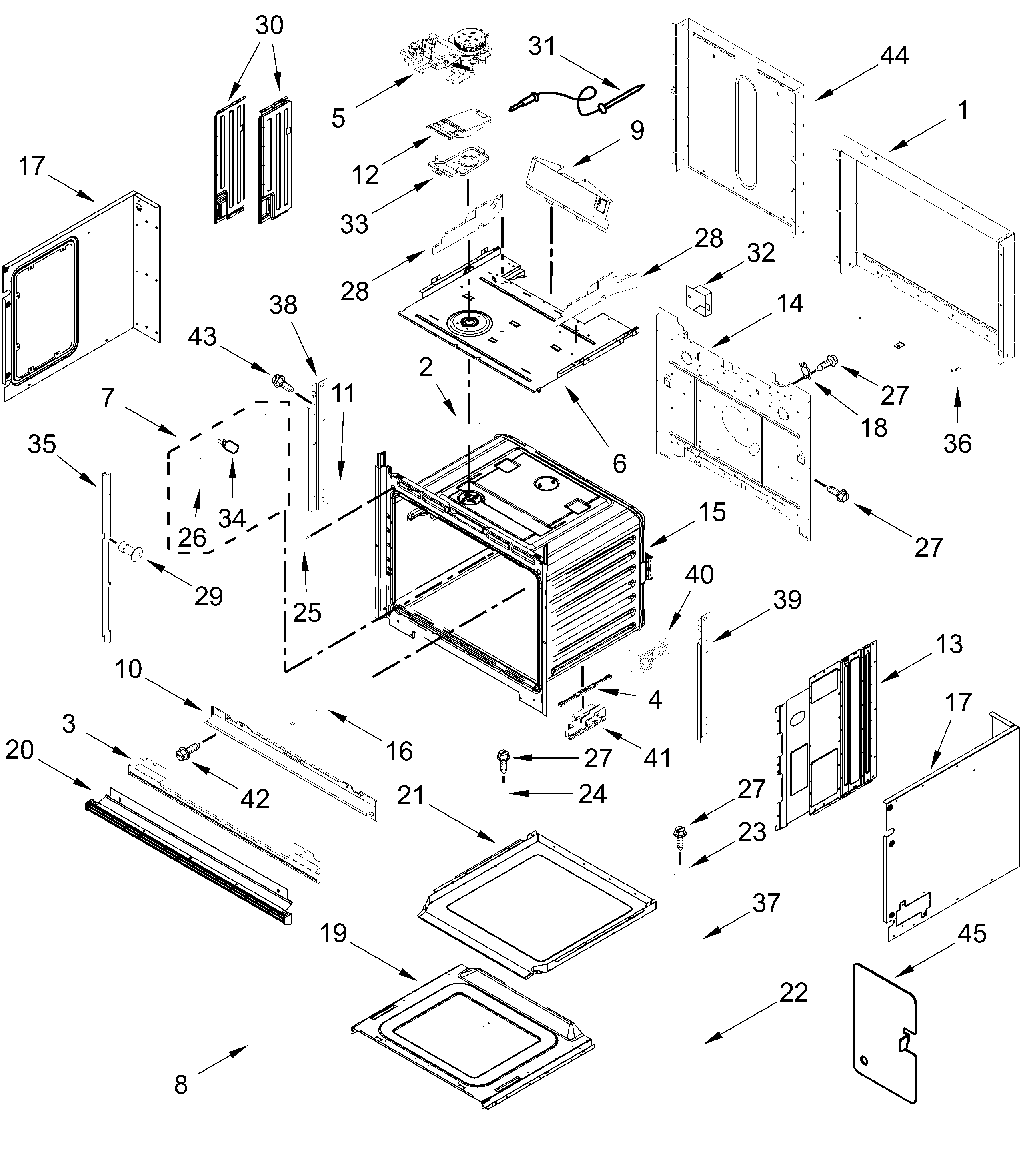

| 1 | COVER-REAR |
| 2 | W11240525 Whirlpool Vent Tube |
| 3 | W11714646 Whirlpool Trim Assembly |
| 4 | W11598152 Whirlpool Spacer |
| 5 | W11686858 Whirlpool Door Latch |
| 6 | TOP, CHASSIS |
| 7 | W11292252 Whirlpool Oven Light |
| 8 | W10283020 Whirlpool Support |
| 9 | W10904163 Whirlpool Vent Deflector |
| 10 | VENT-OVEN |
| 11 | W11692454 Whirlpool Gasket |
| 12 | COVER, VENT EXHAUST |
| 13 | W11165274 Whirlpool Side Panel |
| 14 | BACK, CHASSIS |
| 15 | Liner, Oven (Not Serviceable) |
| 16 | W11598120 Whirlpool Thermostat |
| 17 | SIDE, COMBO CHASSIS (LEFT) |
| 18 | WP4449751 Whirlpool Range Oven Thermostat Fix |
| 19 | COVR-ACESS |
| 20 | W11467336 Whirlpool Heat Deflector |
| 21 | COVR-ACESS |
| 22 | W10283021 Whirlpool Support |
| 23 | SUPPORT, AIR CHANNEL |
| 24 | SPACER, BOTTOM CHASSIS DUCT |
| 25 | W11598125 Whirlpool Bumper |
| 26 | WPW10519866 Whirlpool Light |
| 27 | SCREW |
| 28 | DEFLECTOR, CHASSIS (LEFT) |
| 29 | RIVET (BLACK) |
| 30 | W11598150 Whirlpool Side Cover |
| 31 | WP9755542 Whirlpool Oven Meat Probe |
| 32 | 8285593 Whirlpool Oven Wire Cover |
| 33 | BASE, VENT EXHAUST |
| 34 | WPW10472384 Whirlpool Light Bulb |
| 35 | TRIM |
| 36 | W10283022 Whirlpool Support |
| 37 | W10283024 Whirlpool Mounting Bracket |
| 38 | W11627410 Whirlpool Mounting Rail |
| 39 | W11627411 Whirlpool Mounting Rail |
| 40 | W11598170 Whirlpool Level Foot |
| 41 | W11598169 Whirlpool Foot Level Assembly |
| 42 | WPY706189 Whirlpool Stove Screw |
| 43 | SCREW (BLACK) |
| 44 | W11134657 Whirlpool Rear Cover |
| 45 | COVER, WIFI |
