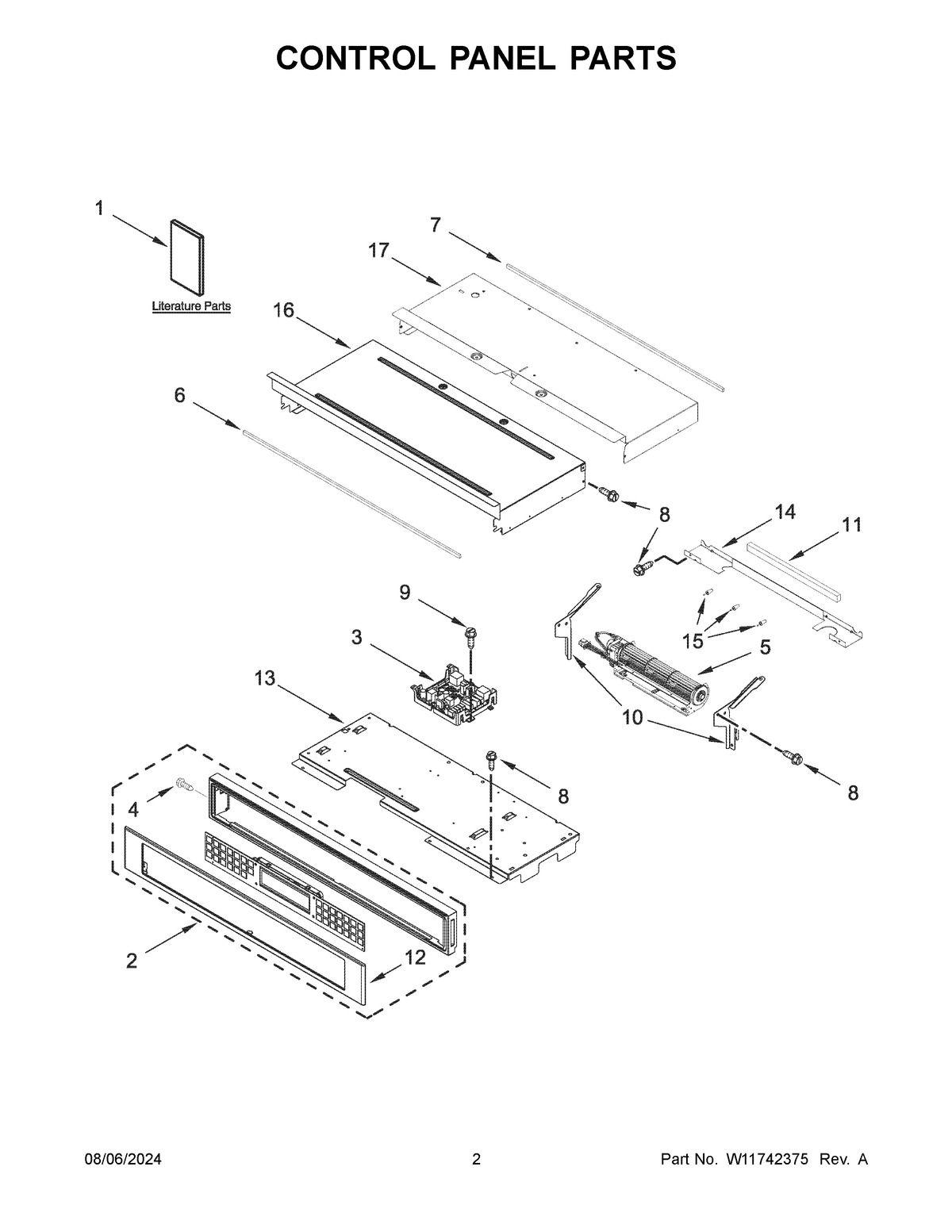

KOED430RSS00 02 – CONTROL PANEL PARTS

KOED430RSS00 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11699910 Whirlpool Wire Harness
NIW10655464 Whirlpool Bracket
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NI16515 Whirlpool Clip
NIW11602626 Whirlpool Oven Microwave Hardware
NIW11233570 Whirlpool Wire Harness
NIW11245674 Whirlpool Wire Harness
NIW11256625 Whirlpool Wire Harness
NIW11727826 Whirlpool Wire Harness
1OWNER'S MANUAL
1BTECH SHEET
1AQUICK START GUIDE
1CTECH MANUAL
2W11666473 Whirlpool Console with Core
3W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
3AW11598200-includeCORE Whirlpool W11598200 Washer Electronic Control Board + Core
4SCREW (BLACK)
5BLOWER
6GASKET, RUBBER
7W10728475 Whirlpool Foam Seal
8SCREW
9SCREW
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12W10588740 Whirlpool Control Panel
13TRAY, ELECTRONIC
14DIVIDER, CHASSIS BACK
15W10351295 Whirlpool Bumper Assembly
16COVER, 30 IN CHASSIS TOP FRONT
17COVER, 30 IN CHASSIS TOP BACK
