KOED430RSS00 04 – UPPER OVEN DOOR PARTS

KOED430RSS00 04 – UPPER OVEN DOOR PARTS

Written by

in

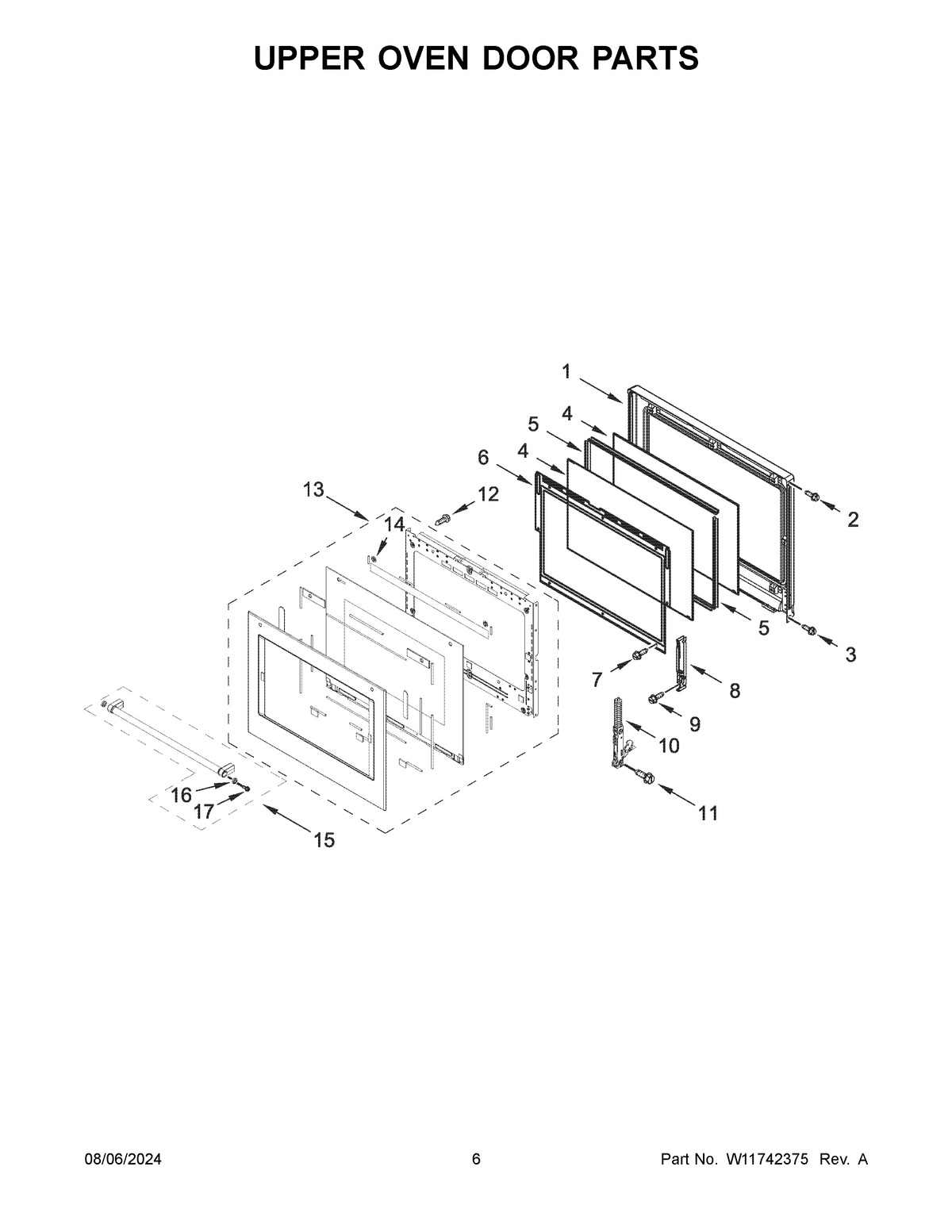

KOED430RSS00 04 – UPPER OVEN DOOR PARTS

Products

PositionProduct
1W11617223 Whirlpool Glass Frame
2SCREW
3W11617225 Whirlpool Oven Screw
4WPW10618107 Whirlpool Door Glass Assembly
5SPACER
6W11598182 Whirlpool Retainer Clip
7SCREW
8HINGE-RECV
9WPW10254050 Whirlpool Screw
10W11700313 Whirlpool Door Hinge
10AW11699927 Whirlpool Door Hinge
11WP3196183 Whirlpool Screw
12W11602624 Whirlpool Oven Screw
13W11600222 Whirlpool Door Glass
14W11676355 Whirlpool Washer
15W11518518 Whirlpool Door Handle
16W10846207 Whirlpool KA Handle MEDALLIONS-RED
17W10920281 Whirlpool Screw
