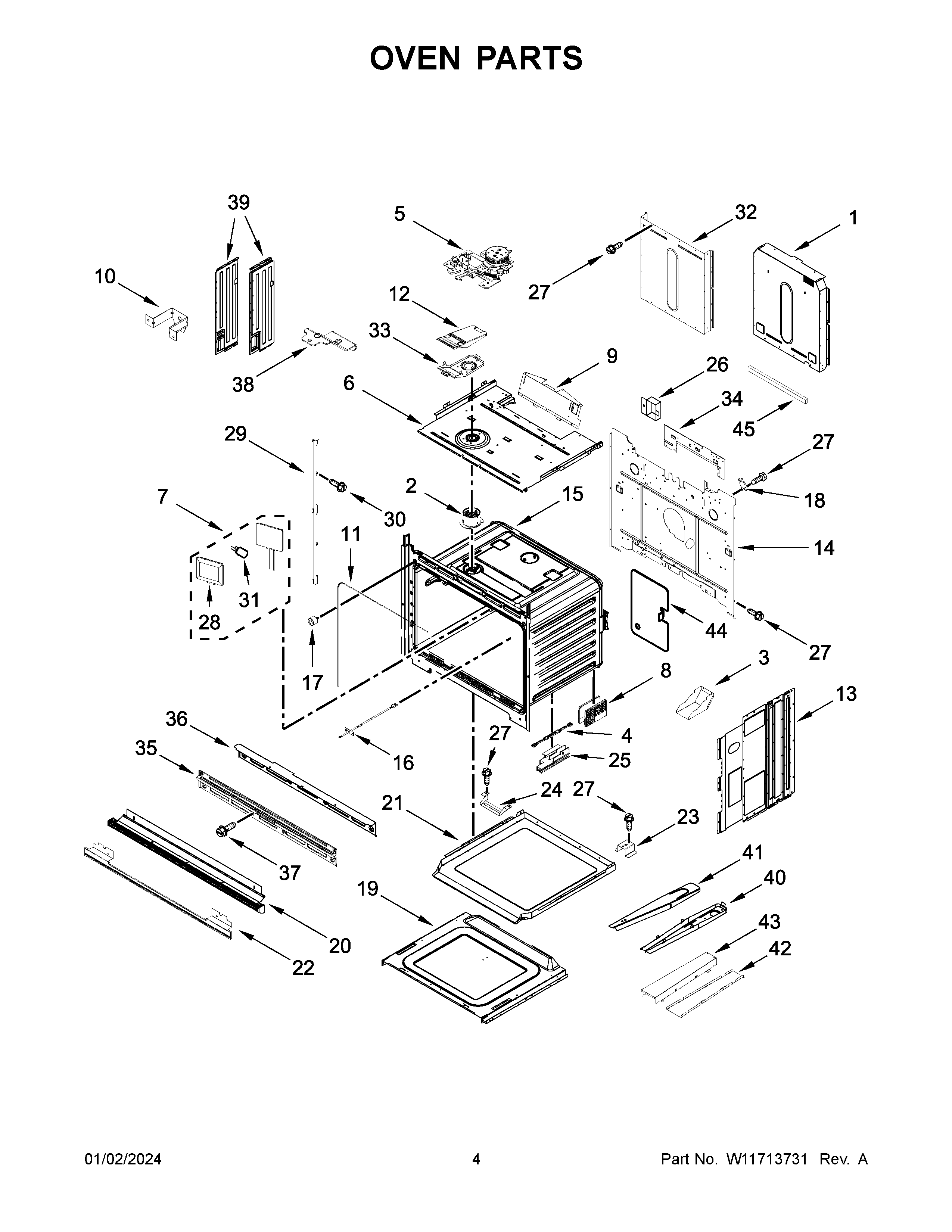

KOED530PPS00 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	FOAM, U-BRACKET
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	INSULATION, CAVITY
1	W11165250 Whirlpool Rear Cover
2	W11240525 Whirlpool Vent Tube
3	DEFLECTOR, LOWER BACK EXHAUST
4	W11598152 Whirlpool Spacer
5	W11686858 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11292252 Whirlpool Oven Light
8	W11598170 Whirlpool Level Foot
9	W10904163 Whirlpool Vent Deflector
10	HAT BRACKET, VENT
11	W11692454 Whirlpool Gasket
12	COVER, VENT EXHAUST
13	W11165274 Whirlpool Side Panel
14	BACK, CHASSIS
15	LINER, OVEN (NOT SERVICEABLE)
16	W11598120 Whirlpool Thermostat
17	W11598125 Whirlpool Bumper
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	COVR-ACESS
20	W11648980 Whirlpool Vent
21	COVR-ACESS
22	W11714646 Whirlpool Trim Assembly
23	SUPPORT, AIR CHANNEL
24	SPACER, CHASSIS BOTTOM DUCT
25A	W11598168 Whirlpool Leveling Foot
25	W11598169 Whirlpool Foot Level Assembly
26	8285593 Whirlpool Oven Wire Cover
27	SCREW
28	WPW10519866 Whirlpool Light
29	W11235460 Whirlpool Mounting Rail
29A	W11235461 Whirlpool Rail Mounting
30	W11602623 Whirlpool Screw
31	WPW10472384 Whirlpool Light Bulb
32	W11134657 Whirlpool Rear Cover
33	BASE, VENT EXHAUST
34	BRACKET, U-SHAPE
35	W11235482 Whirlpool Exhaust Vent
36	W11715951 Whirlpool Vent Trim
37	WPY706189 Whirlpool Stove Screw
38	BRACKET, TOP FRONT
39	W11598150 Whirlpool Side Cover
40	W11598151 Whirlpool Side Cover
41	BASE, TOP BACK EXHAUST
42	COVER, TOP BACK EXHAUST
43	BASE, LOWER BACK EXHAUST
44	COVER, LOWER BACK EXHAUST
45	COVER, WIFI
