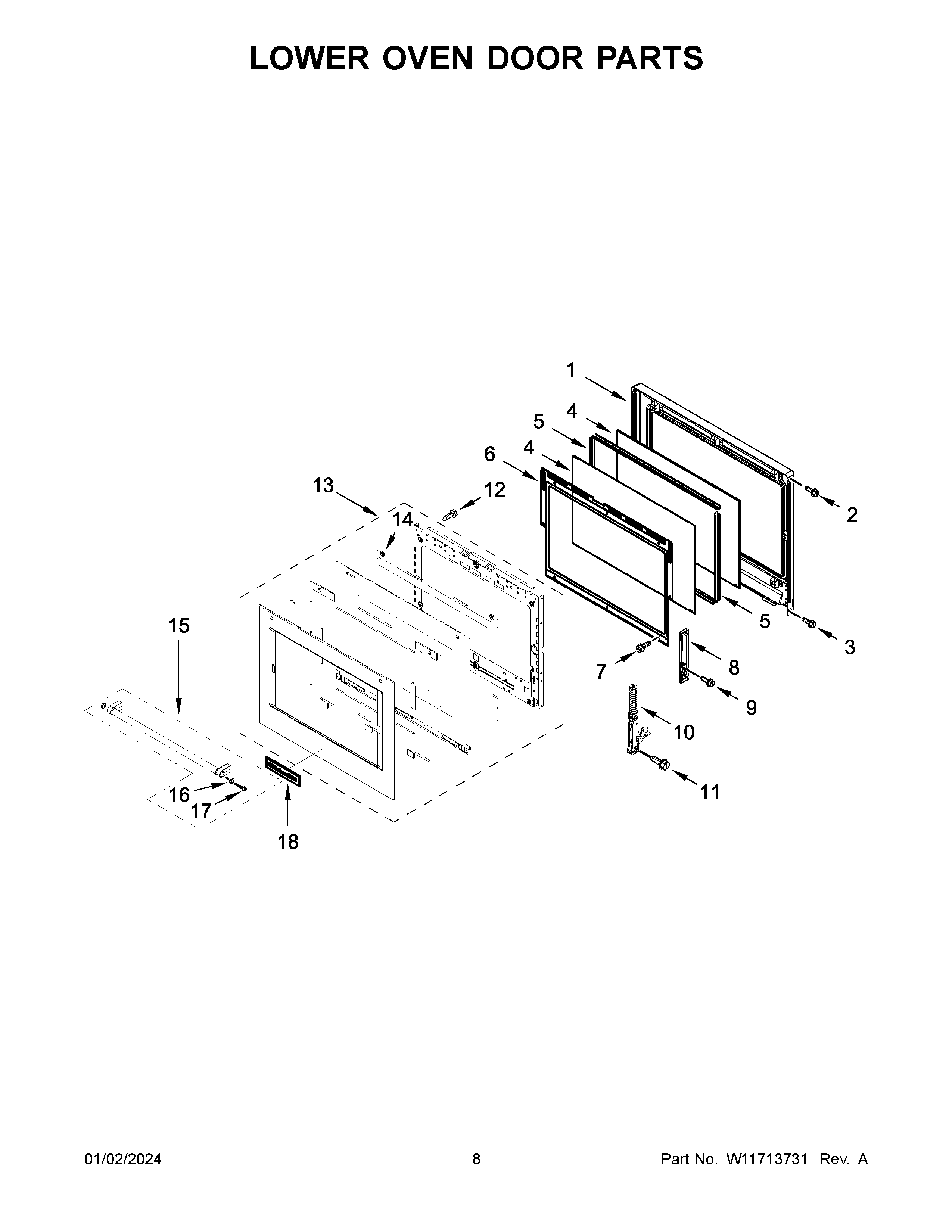

KOED530PPS00 05 – LOWER OVEN DOOR PARTS

KOED530PPS00 05 – LOWER OVEN DOOR PARTS

Written by

in

KOED530PPS00 05 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1W11617223 Whirlpool Glass Frame
2SCREW
3W11617225 Whirlpool Oven Screw
4WPW10618107 Whirlpool Door Glass Assembly
5SPACER
6W11598182 Whirlpool Retainer Clip
7SCREW
8AW11712406 Whirlpool Receiver Hinge
8W11712405 Whirlpool Receiver Hinge
9WPW10254050 Whirlpool Screw
10HINGE-DOOR
10AW11665204 Whirlpool Door Hinge
11WP3196183 Whirlpool Screw
12W11602624 Whirlpool Oven Screw
13GLASS-DOOR
14W11676355 Whirlpool Washer
15W11518518 Whirlpool Door Handle
16W10846207 Whirlpool KA Handle MEDALLIONS-RED
17W10920281 Whirlpool Screw
18W10839793 Whirlpool Refrigerator Nameplate
