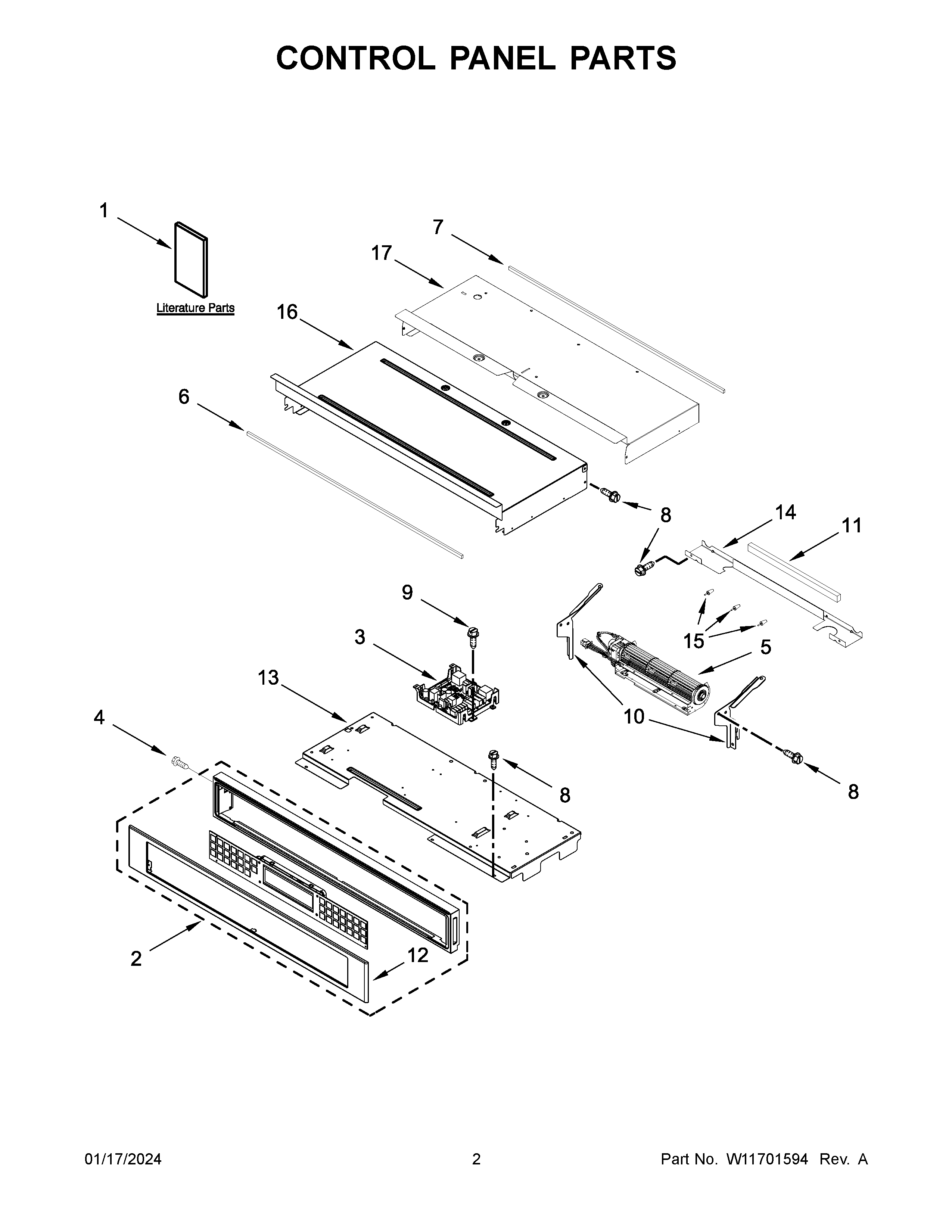

KOED530PWH00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	16515 Whirlpool Clip
NI	4448664 Whirlpool Oven Mounting Bracket
NI	4450800 Whirlpool Oven Screw
NI	W10655464 Whirlpool Bracket
NI	W11245674 Whirlpool Wire Harness
NI	W11256625 Whirlpool Wire Harness
NI	W11699910 Whirlpool Wire Harness
NI	W11727826 Whirlpool Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	STRAP, LEAD GROUND
NI	W11602626 Whirlpool Oven Microwave Hardware
1	OWNER'S MANUAL
1B	TECH SHEET
1A	QUICK START GUIDE
1C	TECH MANUAL
2	W11666475 Whirlpool Console with Core
2A	W11666473 Whirlpool Console with Core
2B	W11666471 Whirlpool Console with Core
3A	W11598200-includeCORE Whirlpool W11598200 Washer Electronic Control Board + Core
3	W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
4	SCREW (BLACK)
5	BLOWER
6	GASKET, RUBBER
7	W10728475 Whirlpool Foam Seal
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	PANL-CNTRL
12A	W10588740 Whirlpool Control Panel
12B	W10776407 Whirlpool Control Panel
13	TRAY, ELECTRONIC
14	DIVIDER, CHASSIS BACK
15	W10351295 Whirlpool Bumper Assembly
16	COVER, 30 IN CHASSIS TOP FRONT
17	COVER, 30 IN CHASSIS TOP BACK
