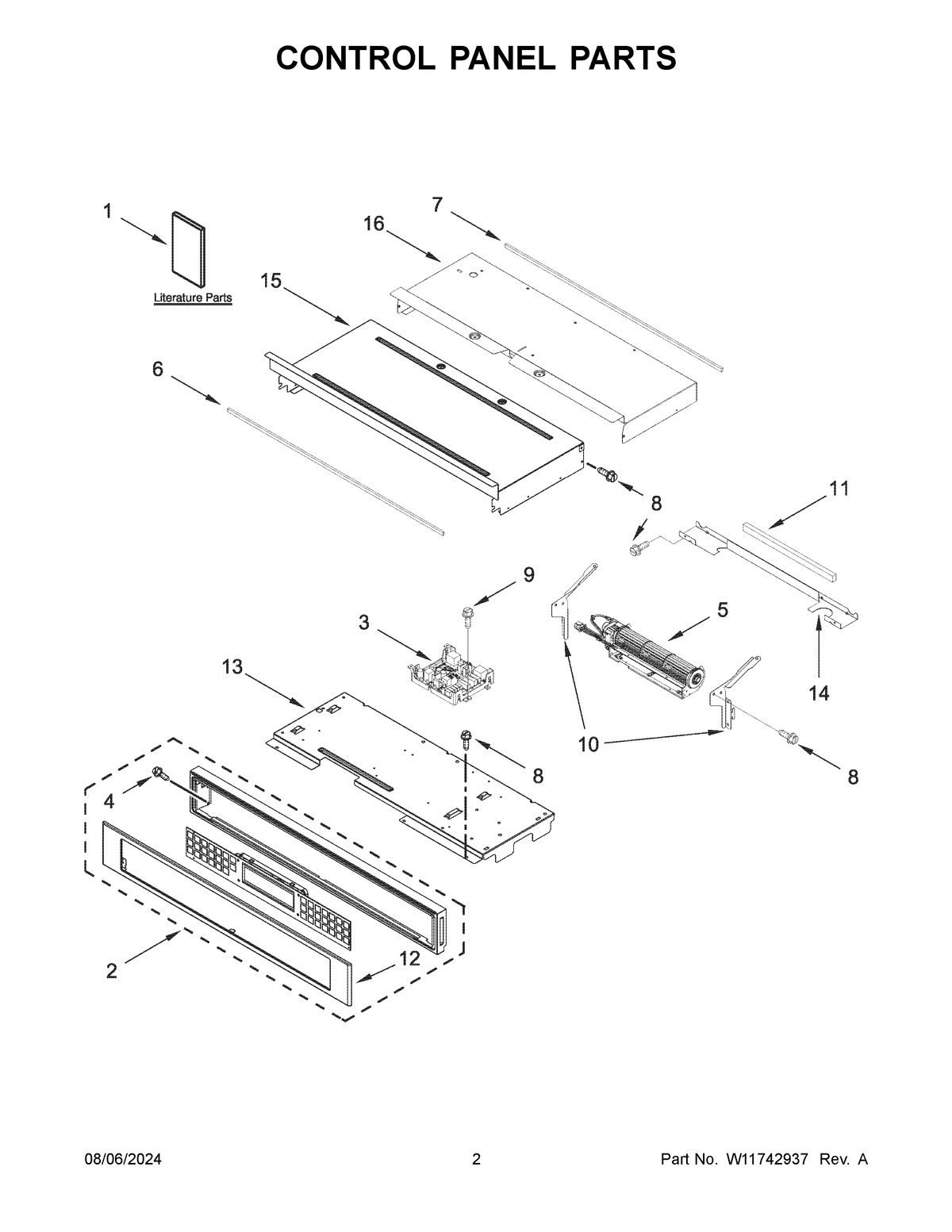

KOES430RSS00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11699910 Whirlpool Wire Harness
NI	W10487999 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	W11727826 Whirlpool Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	BAG, HARDWARE
NI	W10655464 Whirlpool Bracket
NI	W11233570 Whirlpool Wire Harness
NI	W11256622 Whirlpool Wire Harness
NI	HARNS-WIRE
1A	QUICK START GUIDE
1C	WIRING DIAGRAM
1B	TECH MANUAL
1	OWNER'S MANUAL
2	W11670513 Whirlpool Console with Core
3	W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
4	SCREW (BLACK)
5	BLOWER
6	GASKET, RUBBER
7	W10728475 Whirlpool Foam Seal
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	W10588740 Whirlpool Control Panel
13	TRAY, ELECTRONIC
14	DIVIDER, CHASSIS BACK
15	COVER, 30 IN CHASSIS TOP FRONT
16	COVER, 30 IN CHASSIS TOP BACK
