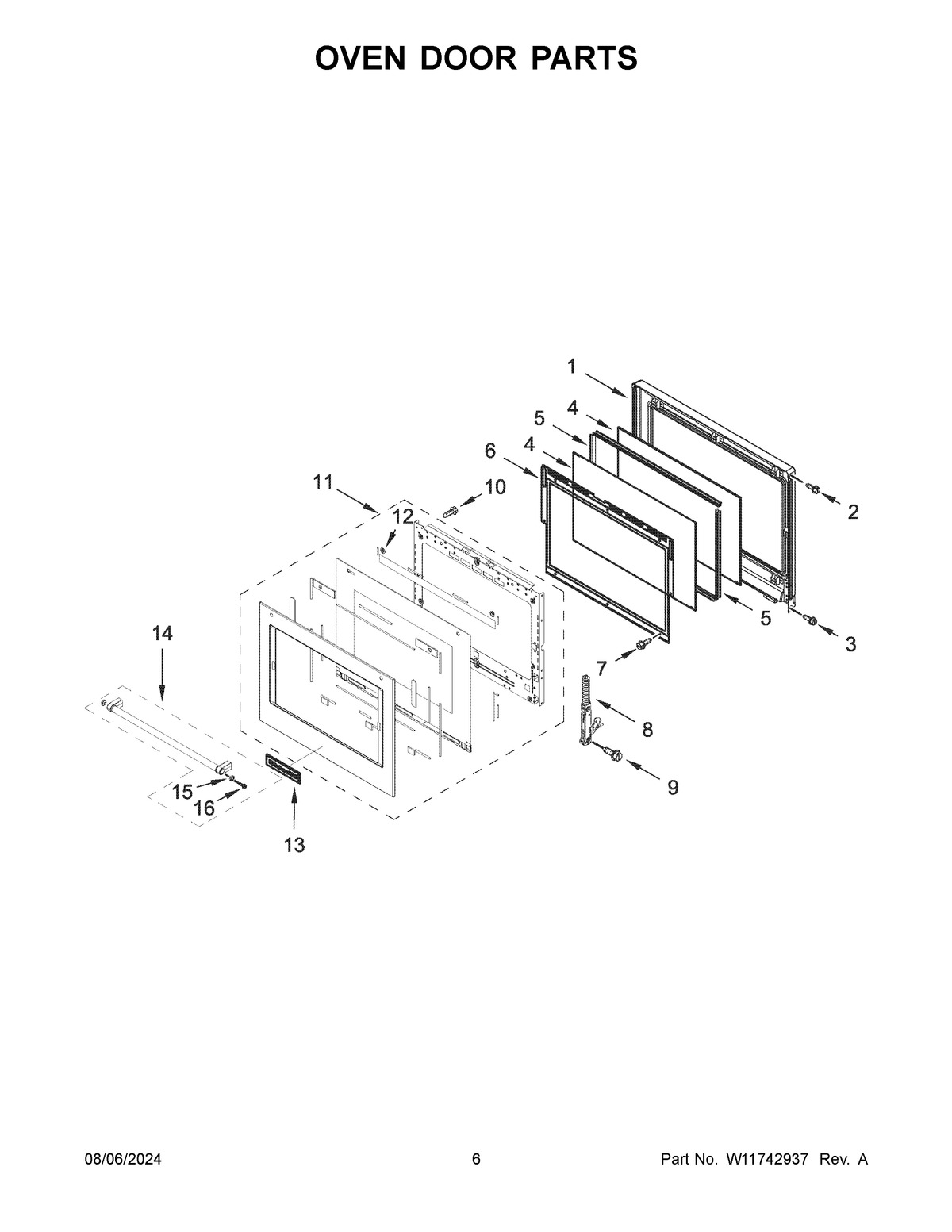

KOES430RSS00 04 – OVEN DOOR PARTS

KOES430RSS00 04 – OVEN DOOR PARTS

Written by

in

KOES430RSS00 04 – OVEN DOOR PARTS

Products

PositionProduct
1W11617223 Whirlpool Glass Frame
2SCREW
3W11617225 Whirlpool Oven Screw
4WPW10618107 Whirlpool Door Glass Assembly
5SPACER
6W11598182 Whirlpool Retainer Clip
7SCREW
8W11700313 Whirlpool Door Hinge
8AW11699927 Whirlpool Door Hinge
9WP3196183 Whirlpool Screw
10W11602624 Whirlpool Oven Screw
11W11600222 Whirlpool Door Glass
12W11676355 Whirlpool Washer
13W10839793 Whirlpool Refrigerator Nameplate
14W11518518 Whirlpool Door Handle
15W10846207 Whirlpool KA Handle MEDALLIONS-RED
16W10920281 Whirlpool Screw
