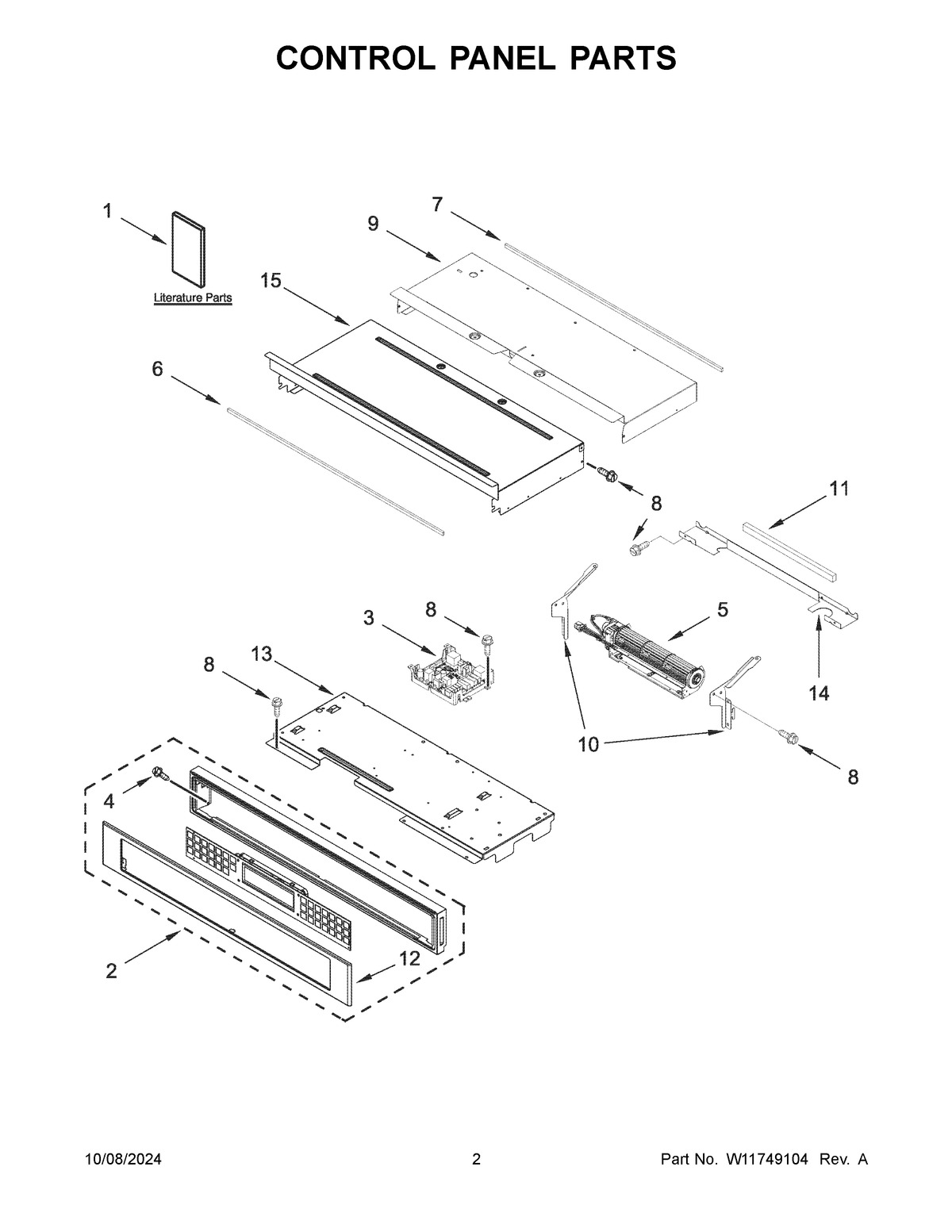

KOES530PPS01 02 – CONTROL PANEL PARTS

KOES530PPS01 02 – CONTROL PANEL PARTS

Written by

in

KOES530PPS01 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11699910 Whirlpool Wire Harness
NIW10487999 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NIW11727826 Whirlpool Wire Harness
NIFOLLOWING PARTS NOT ILLUSTRATED
NIBAG, HARDWARE
NIW10655464 Whirlpool Bracket
NIW11233570 Whirlpool Wire Harness
NIW11256622 Whirlpool Wire Harness
NIHARNS-WIRE
1AQUICK START GUIDE
1BTECH MANUAL
1OWNER'S MANUAL
2WIRING DIAGRAM
2ACONTROL PANEL ASSEMBLY (INCLUDES OVERLAY) (STAINLESS)
3W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
4SCREW (BLACK)
5BLOWER
6GASKET, RUBBER
7W10728475 Whirlpool Foam Seal
8SCREW
9COVER, 30 IN CHASSIS TOP BACK
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12SKIN, CONTROL PANEL (STAINLESS)
13TRAY, ELECTRONIC
14DIVIDER, CHASSIS BACK
15COVER, 30 IN CHASSIS TOP FRONT
