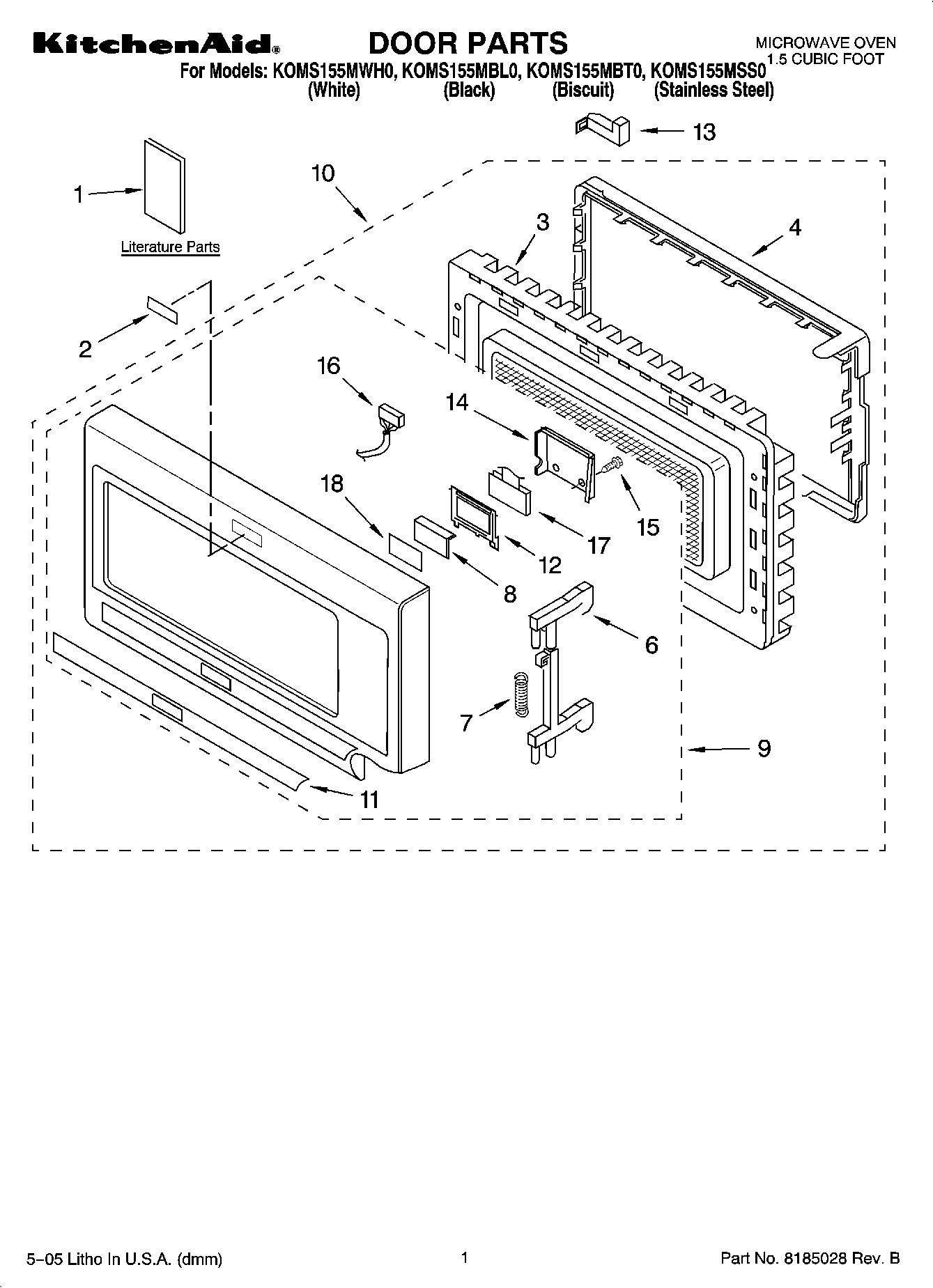

KOMS155MBL0 01 – DOOR PARTSadmin2025-04-26T12:10:37+00:00KOMS155MBL0 01 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Operating Instructions |
| 1 | Use & Care Guide |
| 1 | Tech Sheet |
| 1 | Cook Guide Label |
| 2 | Name Plate |
| 3 | Panel, Door |
| 4 | Choke Cover |
| 6 | Latch |
| 7 | Spring, Latch |
| 8 | Guide, Light |
| 9 | Frame, Door Outer (Biscuit) |
| 9 | Frame, Door Outer (Black) |
| 9 | Frame, Door Outer (White) |
| 9 | Frame, Door Outer (S. Steel) |
| 10 | Door Assembly (Biscuit) |
| 10 | Door Assembly (Black) |
| 10 | Door Assembly (White) |
| 10 | Door Assembly (Stainless) |
| 11 | Control Panel (S.Steel) |
| 11 | Control Panel (White) |
| 11 | Control Panel (Black) |
| 11 | Control Panel (Biscuit) |
| 12 | Panel Asy, Control (Includes lens and membrane switch) (Biscuit) |
| 13 | Stopper, Door (Upper) |
| 13 | Stopper, Door (Lower) |
| 14 | Cover, Microcomputer |
| 15 | SCREW |
| 16 | Wire Harness |
| 17 | Display |
| 18 | Cover |
