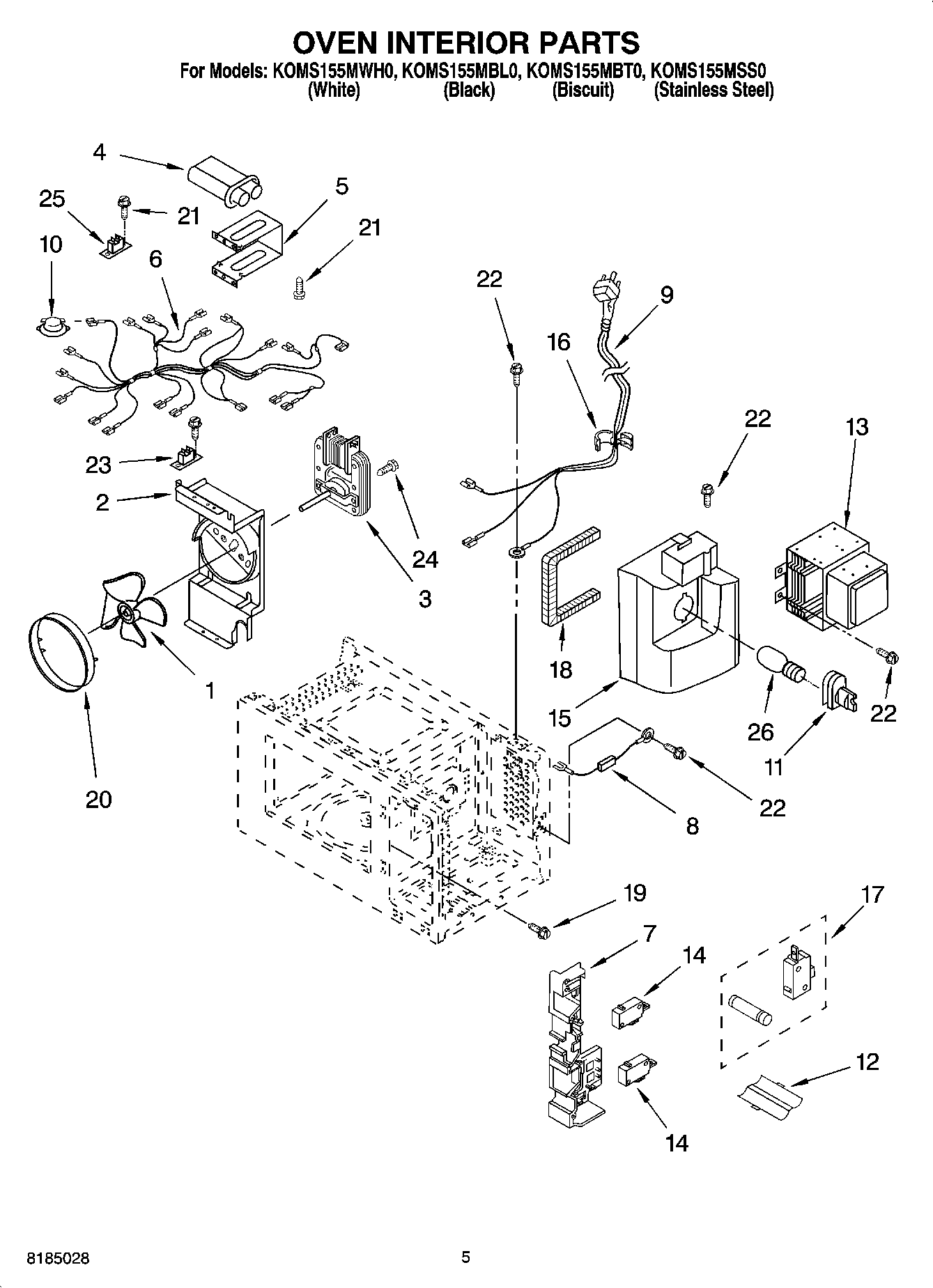

KOMS155MBL0 05 – OVEN INTERIOR PARTS

Products

Position	Product
1	Propeller
2	Guide, Suction
3	Motor, Fan
4	H.V. Capacitor
5	H.V.C Bracket
6	Leadwire Assembly
7	Latch, Door
8	H.V. Diode Cable
9	Power Cord
10	Sensor
11	Lamp, Socket
12	Cap, Fuse
13	W11596034 Whirlpool Microwave Magnetron
14	W11397156 Whirlpool Microwave Switch
15	Duct, Air
16	Bushing
17	4313105 Whirlpool Microwave Switch
18	Cushion (Not Serviced)
19	SCREW
20	Orifice
21	Screw
22	Screw
23	Fuse (Magnetron)
24	4344826 Whirlpool Refrigerator Screw
25	Fuse (Cavity)
26	Lamp
