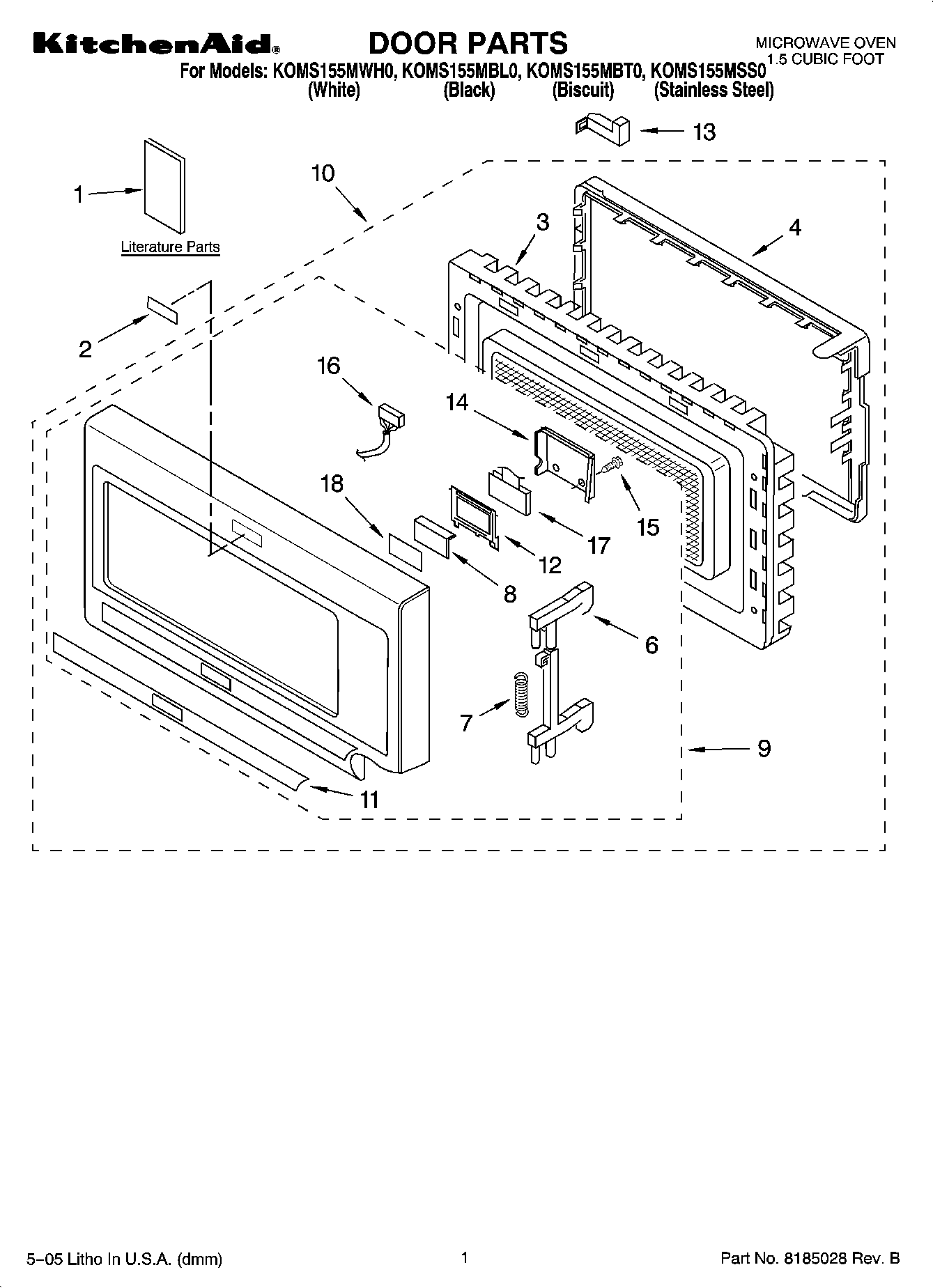

KOMS155MBT0 01 – DOOR PARTS

Products

Position	Product
1	Operating Instructions
1	Use & Care Guide
1	Tech Sheet
1	Cook Guide Label
2	Name Plate
3	Panel, Door
4	Choke Cover
6	Latch
7	Spring, Latch
8	Guide, Light
9	Frame, Door Outer (Biscuit)
9	Frame, Door Outer (Black)
9	Frame, Door Outer (White)
9	Frame, Door Outer (S. Steel)
10	Door Assembly (Biscuit)
10	Door Assembly (Black)
10	Door Assembly (White)
10	Door Assembly (Stainless)
11	Control Panel (S.Steel)
11	Control Panel (White)
11	Control Panel (Black)
11	Control Panel (Biscuit)
12	Panel Asy, Control (Includes lens and membrane switch) (Biscuit)
13	Stopper, Door (Upper)
13	Stopper, Door (Lower)
14	Cover, Microcomputer
15	SCREW
16	Wire Harness
17	Display
18	Cover
