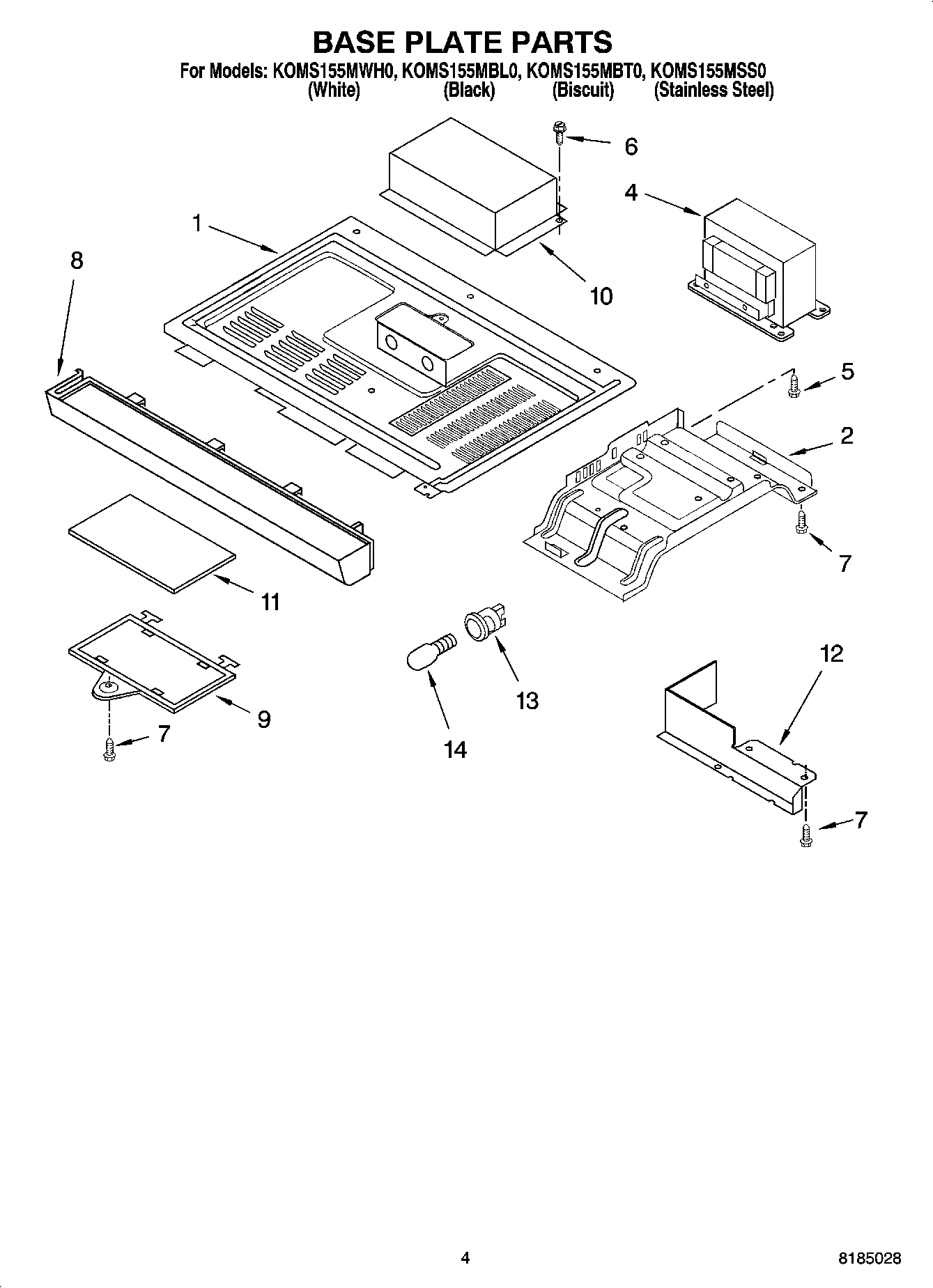

KOMS155MBT0 04 – BASE PLATE PARTS

Products

Position	Product
1	Base Cover (Black)
1	Base Cover (White)
1	Base Cover (Biscuit)
2	Base Plate (R)
4	Transformer
5	Screw
6	Screw
7	Screw
8	Sash, Bottom
9	Frame, Glass (Biscuit)
9	Frame, Glass (Black)
9	Frame, Glass (White)
10	Cover, Light
11	Glass
12	Arm Guide, Bottom
13	Lamp, Socket
14	Hardware, Installation
14	Top Template
14	Wall Template
14	Wire, Ground
14	Wire, High Voltage
14	ACCESSORY PARTS
14	Scale, Plate
14	Hardware Pack S-Hooks
14	Bar, Accessory (2)
14	Lamp
