KOMV1554RMT0 04 – BASE PLATE PARTS – Aparts

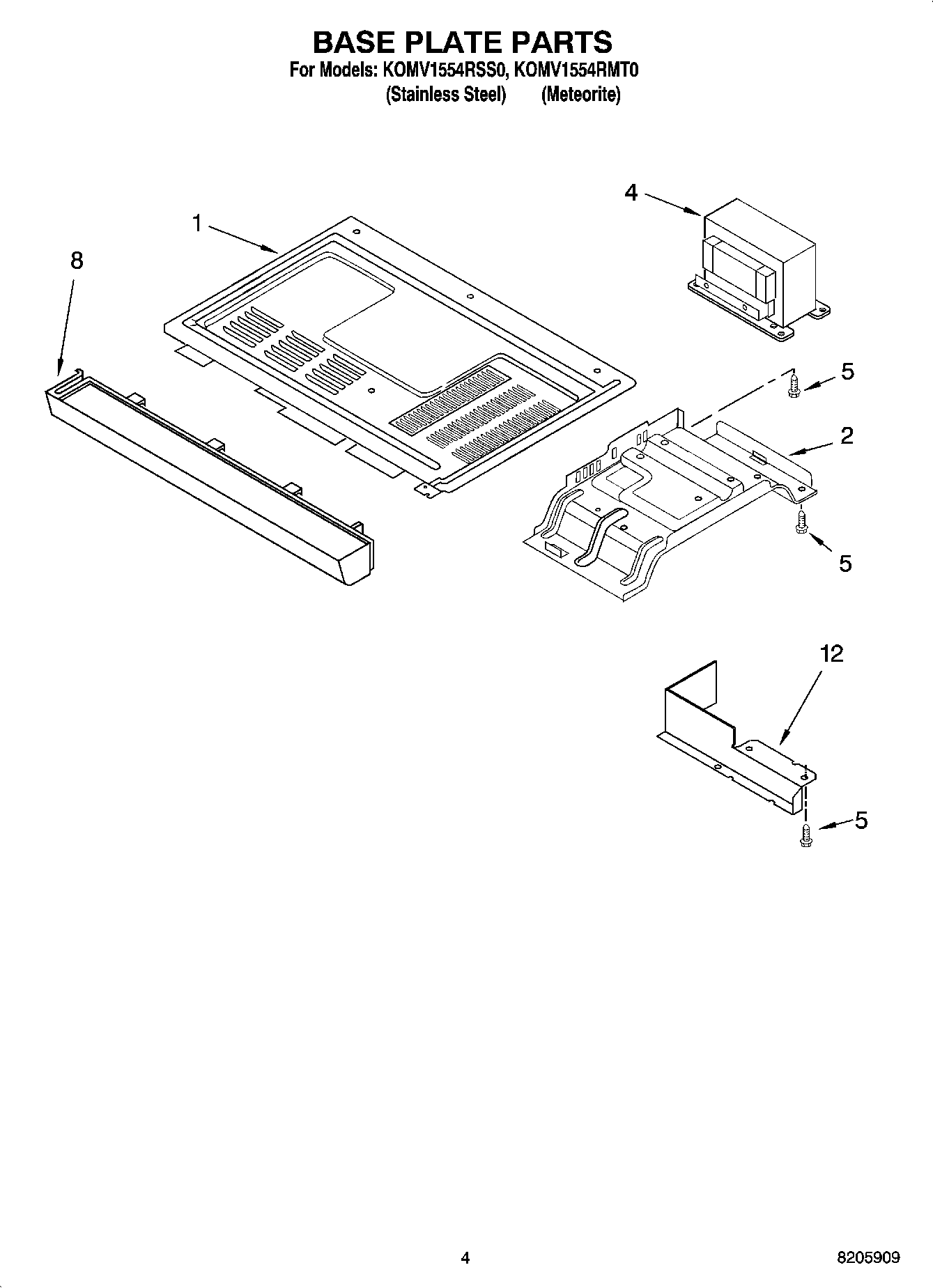

KOMV1554RMT0 04 – BASE PLATE PARTS

Products

Position	Product
1	Base Cover
2	Base Plate (R)
4	Transformer
5	SCREW
8	Sash, Bottom
12	MISCELLANEOUS PARTS
12	Anti-Tip Bracket
12	Wall Template
12	Floor Template
12	Wire, Ground
12	Wire, High Voltage
12	Arm Guide, Bottom
12	Miscellaneous
