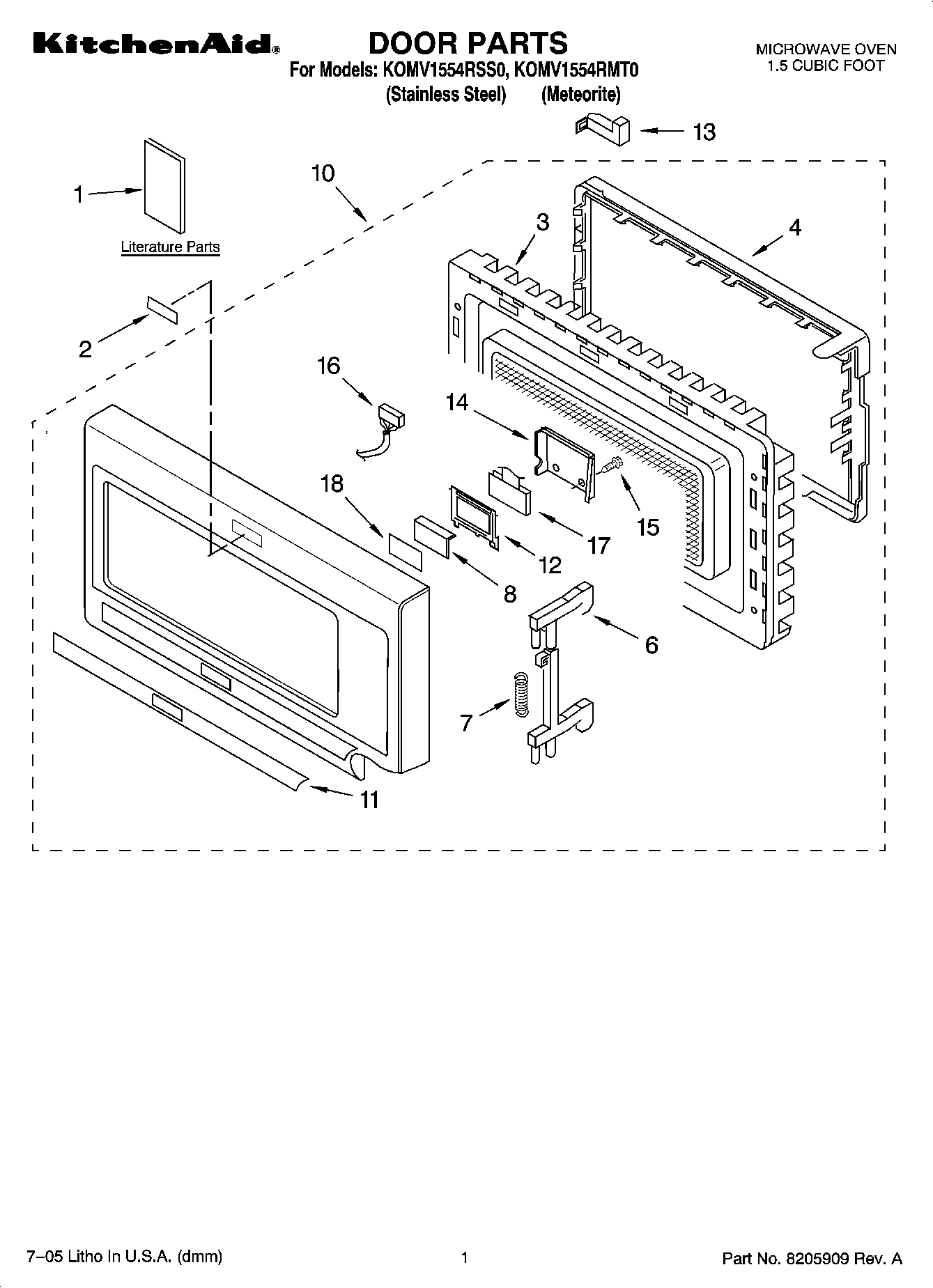

KOMV1554RSS0 01 – DOOR PARTS

Products

Position	Product
1	Tech Sheet
1	Installation Instructions
1	Cook Guide Label
1	Use & Care Guide
2	Name Plate
3	Panel, Door
4	Choke Cover
6	Latch
7	Spring, Latch
8	Guide, Light
10	Door Assembly (Stainless)
10	Door Assembly (Meteorite)
11	Control Panel (Meteorite)
11	Control Panel (Stainless)
12	Panel Asy, Control (Includes lens and membrane switch) (Biscuit)
13	Stopper, Door (Upper)
13	Stopper, Door (Lower)
14	Cover, Microcomputer
15	SCREW
16	Wire Harness
17	Display
18	Cover
